Danfoss immersion pocket (thermowell) — for AFT self-acting temperature controller, R1" DIN2999 Bronze PN 40, 401 mm
Pricing
Request a quote
We reply within 24 hours
Product Description

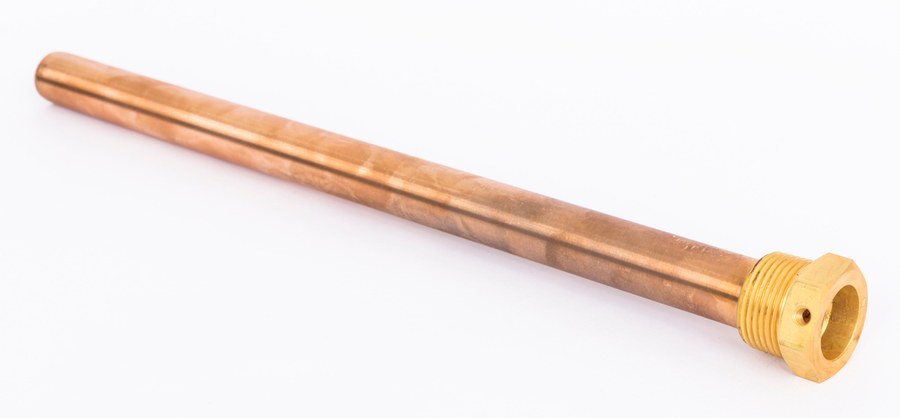

Danfoss immersion pocket / thermowell (OEM designation "Immersion pocket, AFT, R1Z, Bronze, PN40") for the AFT self-acting temperature controller. The pocket screws into the pipe and houses the temperature sensor of a Danfoss AFT self-acting temperature controller, allowing the sensor to be removed without draining the system. Material Bronze; connection R1" DIN2999; sensor bore Ø24 mm; insertion length 401 mm; pressure class PN 40. OEM P/N 003G1399. EAN 5702421812495. Technical data quoted verbatim from store.danfoss.com (code 003G1399).
Technical Specifications
- Code number
- 003G1399
- Type
- Immersion pockets
- Product group
- Accessories - SAC
- Gross weight
- 0.65 Kilogram
- Net weight
- 0.566 Kilogram
- Volume
- 10.752 Liter
- Connection size
- R1" DIN2999
- Connection types
- External Thread
- Contains batteries
- No
- Description
- Immersion pocket, AFT, R1Z, Bronze, PN40
- Diameter [mm]
- 24 mm
- For product type
- AFT
- Length [mm]
- 401 mm
- Material
- Bronze
- Pressure class
- PN 40
- Pressure nominal [bar]
- 40 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Suitable for valve of pressure [bar] [Max]
- 16 bar
- Suitable for valve of pressure [bar] [Min]
- 16 bar
- EAN
- 5702421812495
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Immersion pockets
- Material
- Bronze
- Thread Standard
- R1" DIN2999
- Pressure Rating
- PN 40
- HS Code
- 8481.90
Compatibility & Fitment
The immersion pocket houses the sensor of a Danfoss AFT self-acting temperature controller. Connection R1" DIN2999, material Bronze, insertion length 401 mm, PN 40. Confirm sensor bore, insertion length and thread against the AFT data sheet before ordering.
