Danfoss AF-range stem extension ZF 4 — insulation spacer for valve bodies DN 15–125
Pricing
Request a quote
We reply within 24 hours
Product Description

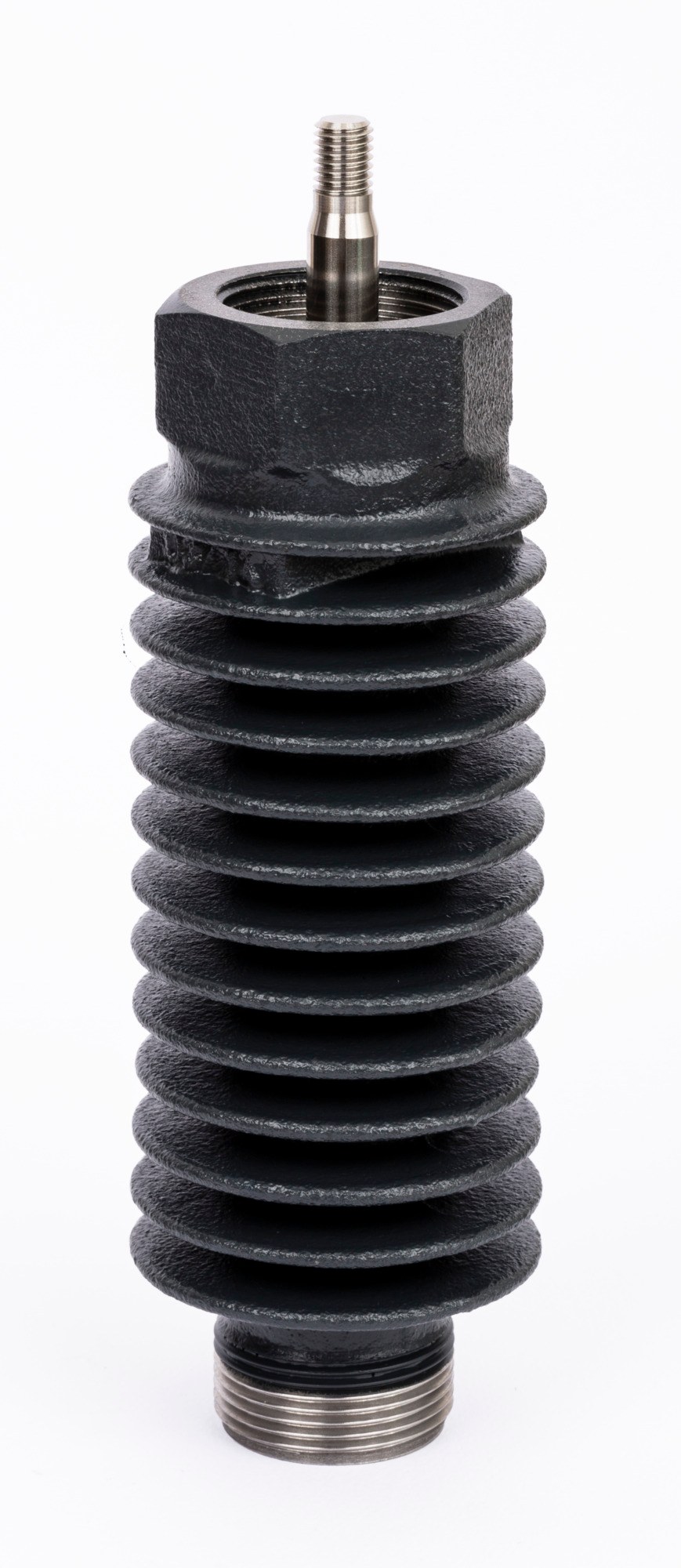

Danfoss AF-range stem extension ZF 4 (OEM designation "Stem extension ZF 4, AF range"). The stem extension is a spacer piece fitted between the valve body and the self-acting AF-range actuator, giving clearance for pipe insulation and separating the actuator from the hot valve body. Suits valve bodies DN 15–125. OEM P/N 003G1394. EAN 5702421812440. Technical data quoted verbatim from store.danfoss.com (code 003G1394).
Technical Specifications
- Code number
- 003G1394
- Type
- Stem extensions
- Product group
- Accessories - SAC
- Gross weight
- 2.62 Kilogram
- Net weight
- 2.62 Kilogram
- Volume
- 4.872 Liter
- Contains batteries
- No
- Description
- Stem extension ZF 4, AF range
- For valve size
- DN 15-125
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Suitable for valve of diameter [mm] [Max]
- 125 mm
- Suitable for valve of diameter [mm] [Min]
- 15 mm
- EAN
- 5702421812440
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Stem extensions
- HS Code
- 8481.90
Compatibility & Fitment
Stem extension ZF 4 fits between a Danfoss VFG-series globe valve body (DN 15–125) and the AF-range actuator to allow insulation clearance. ZF 4/5/6 differ in build height; the FKM variant is for higher media temperature. Confirm the required extension height and seal material against the AF-range data sheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss AF-range stem extension ZF 4 (FKM) — insulation spacer for valve bodies DN 15–125
003G1395
Danfoss
Danfoss AF-range stem extension ZF 5 — insulation spacer for valve bodies DN 15–125
003G1396
Danfoss
Danfoss immersion pocket (thermowell) — for AFT self-acting temperature controller, R1" DIN2999 Bronze PN 40, 401 mm
003G1399
Danfoss
Danfoss AF-range impulse tube set for AFQ controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
003G1404
Danfoss
Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
003G1405
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
003G1406
Danfoss
Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 200, PN 40, 10 mm × G 1/4, Stainless steel (003G1416)
Danfoss

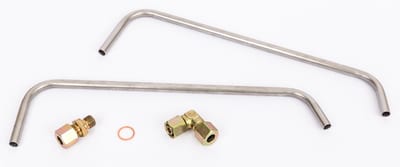

Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 250, PN 16, 10 mm × G 1/4, Stainless steel
