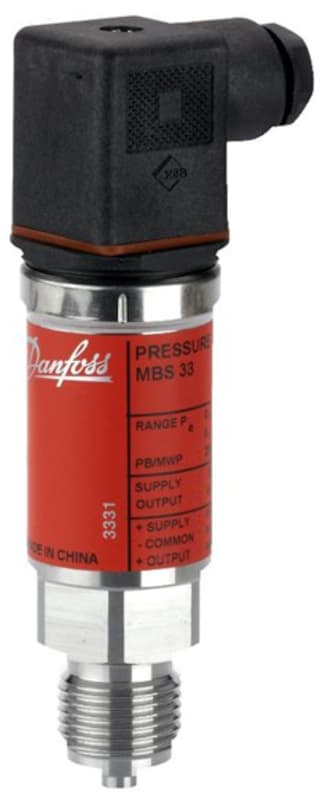

MBS 33. 1/2" UTV. RG, 0-10 BAR

Danfoss 060G3011 pressure transmitter.

Manufacturer part number (MPN)

060G3011 EAN / GTIN: 5702423030026 Sales unit: pcs Package quantity: 14 pcs Code number: 060G3011 Product type: MBS 33 Product group: Sensors Medium temperature range: -40 °C to 85 °C Ambient temperature range: -40 °C to 85 °C Approval: ATEX; C UL US UL Recognized; CE UL mark: Yes CE mark: Yes REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.186 kg Accuracy, max.: 0.80 % Accuracy, typical: 0.3 % Compensated temp. range: 0 °C to 80 °C EEE category: 5 small equipment (any external dimension < 50 cm) Electrical conn. Male/Female: Male and Female Electrical connection: Angular connector Electrical connection size: Pg 9 Electrical connection standard: EN 175301-803-A Enclosure rating IP: IP65 Flush diaphragm: No High Clipping Level: 22.40 Identical product: 060G4001 In scope of WEEE: Yes Intrinsically safe: No Low Clipping level: 3.60 Negative / common: Pin 2 Non-linearity BFSL: 0.20 % Output signal: Current, 4 mA to 20 mA Overload pressure max.: 20.0 bar Positive / supply: Pin 1 Pressure connection HEX: 27.0 mm Pressure connection size: 1/2 Pressure connection standard: EN 837 Pressure connection type: G Pressure Male/Female: Male Supply voltage: 30 V Measuring range: 0–1000000 Pa Accuracy class: 0.3 With temperature sensor: No Max. medium temperature (continuous): 85 °C Min. medium temperature (continuous): -40 °C Readable: No With display: No Max. overpressure: 2000 kPa Suitable for air: Yes Suitable for water: Yes Suitable for gases: Yes Suitable for glycol: Yes Suitable for oil: Yes Suitable for ammonia: Yes Suitable for steam: No Housing material: Stainless steel Degree of protection (IP): IP65 Explosion-proof: Yes Connection: External thread cylindrical BSPP-G (ISO 228-1) Measuring element: Piezo Height: 130 mm Width: 34 mm Depth: 52 mm Country of origin: Denmark

HS Code

9026.20

• EAN 5702423030026
• SAP 1000055622
• Code 8539604
