Product Description

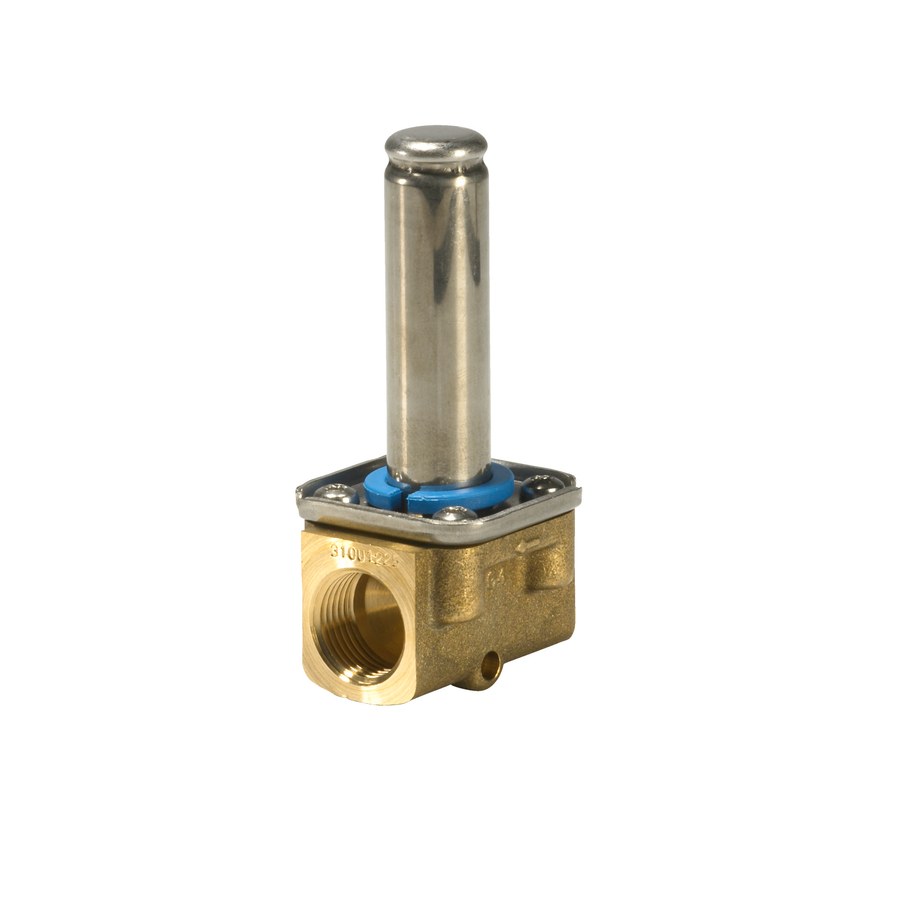

Danfoss 032U3606 solenoid valve.
Technical Specifications
- Manufacturer part number (MPN)
- 032U3606 EAN / GTIN: 5702423179053 Sales unit: pcs Package quantity: 20 pcs Code number: 032U3606 Product type: EV210B Product group: Solenoid valves Type designation: EV210B 4.5 Function: NC Body material: Eco brass Connection Internal/External: Internal Connection material: Eco brass Connection size: 3/8 Connection standard: ISO 228-1 Connection type: G Orifice size: 4.50 mm Orifice size fraction: 3/16 in Kv value: 0.550 m³/h Cv value: 0.640 gal/min Max media viscosity: 50 cSt Max. test pressure: 19.5 bar Max. working pressure: 13.0 bar Medium temperature range: -10 °C to 100 °C Ambient temperature max.: 80 °C Fluid Group: 1 REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.18 kg Actuator: B Actuator size: 13.5 mm, 0.53 in Actuator system: 13.5 mm Application: Closed and Drain Differential pressure: 0.000 bar to 13.000 bar EEE category: 5 small equipment (any external dimension < 50 cm) Est. time to close, water: 20 ms Est. time to open, water: 20 ms Flow direction: Single-flow Flow direction indicator: Embossed 1-way arrow In scope of WEEE: Yes Media recommendations: Oil,Comp.Air,Vacuum Housing material: Brass Surface protection: Untreated material sealing: Fluorelastomer rubber (FPM/FKM) Max. medium temperature (continuous): 100 °C Deactivated when open: No Country of origin: Denmark
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702423179053
- SAP 1000036006
- Code 8514864
Product Documentation
More from Danfoss
Danfoss
EV250B 0-10 BAR, 1", FKM
032U5257
Danfoss
Danfoss FED self-acting room controller — sequence control of a cooling and a heating circuit, 7+8 m capillary
013G5461
Danfoss
Danfoss FED self-acting room controller — sequence control of a cooling and a heating circuit, 2+2+2 m capillary
013G5462
Danfoss
Danfoss FED self-acting room controller — sequence control of a cooling and a heating circuit, 4+11 m capillary
013G5463
Danfoss

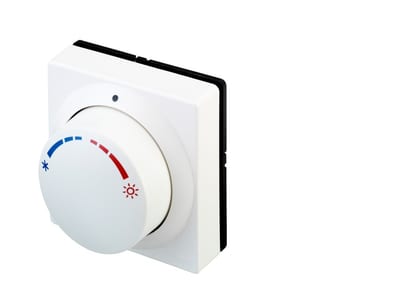

Danfoss FEK self-acting room controller — control of a cooling circuit, 2+2 m capillary (FEK-FF)
013G5464
Danfoss
Danfoss FEK self-acting room controller — control of a cooling circuit, 5 m capillary (FEK-IF)
013G5465
Danfoss

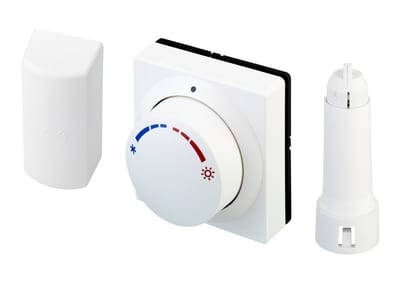

Danfoss FEV self-acting room controller — control of a heating circuit, 2+2 m capillary
013G5466
Danfoss

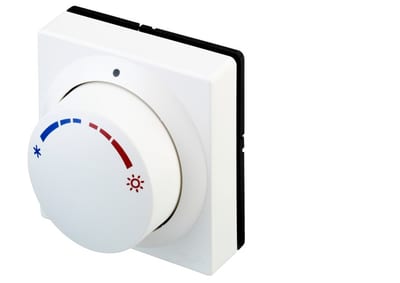

Danfoss FEV self-acting room controller — control of a heating circuit, 5 m capillary
013G5467
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 032U3606?
- 032U3606 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 032U3606.
- What is the HS code for 032U3606?
- The customs tariff (HS) code for 032U3606 is 8481.80.
- Who manufactures 032U3606?
- 032U3606 is a Danfoss product in the Valves range.
- Is a datasheet available for 032U3606?
- Yes — the 032U3606 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 032U3606?
- The minimum order quantity is 1.
- Is 032U3606 available?
- Yes — 032U3606 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
