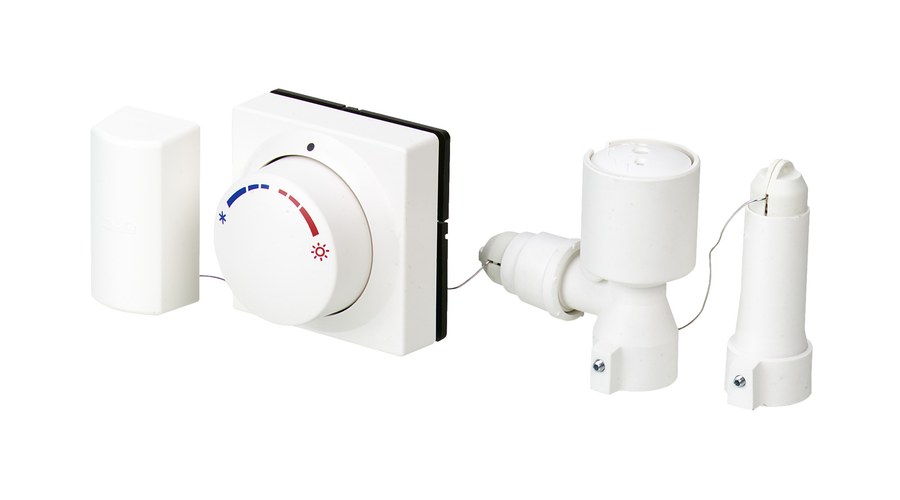

Danfoss FED self-acting room controller — sequence control of a cooling and a heating circuit, 7+8 m capillary (013G5461)
Danfoss · HVAC & Refrigeration · Room Thermostats
Danfoss FED self-acting room controller, OEM order code 013G5461 — a proportional room-temperature controller for sequence control of a cooling and a heating circuit. FED sensor for sequence control of cooling and heating circuit, 7+8m. The gas/liquid-charged sensing element operates one cooling and one heating valve in sequence with a neutral dead-band between them, so a single room controller changes over between cooling and heating without the two circuits fighting each other; it is self-acting and needs no external power, batteries or wiring. Supplied with 2 capillary tubes (7+8 m, 15 m total) linking the room sensor to the Danfoss FE-series climate valve(s) it operates. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5461). OEM P/N 013G5461, EAN 5702420047805. HS 9032.10 (thermostats). Manufacturer: Danfoss. Manufacturer part number (MPN): 013G5461.
Specifications
- Part number
- 013G5461
- HS code
- 9032.10
- Material
- Gas/liquid-charged thermostatic sensing element with capillary tube(s); polymer housing
Compatibility
Self-acting FED room controller for a cooling and a heating circuit in sequence, operating Danfoss FE-series climate-control valves via 2 capillary tubes (7+8 m). Route the capillary run(s) from the wall-mounted controller to the valve position(s); the individual tube lengths (7+8 m) are fixed and cannot be shortened. Confirm the circuit type (a cooling and a heating circuit in sequence) and the capillary length (7+8 m) suit the installation before ordering. Self-acting — no power supply required.
