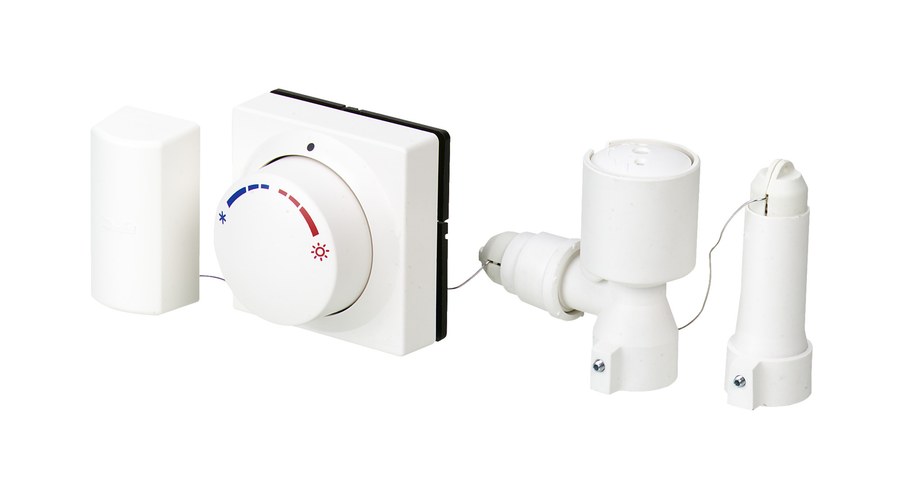

Danfoss FED self-acting room controller — sequence control of a cooling and a heating circuit, 6+11 m capillary

Danfoss FED self-acting room controller, OEM order code 013G5469 — a proportional room-temperature controller for sequence control of a cooling and a heating circuit. FED sensor for sequence control of cooling and heating circuit, 6+11m. The gas/liquid-charged sensing element operates one cooling and one heating valve in sequence with a neutral dead-band between them, so a single room controller changes over between cooling and heating without the two circuits fighting each other; it is self-acting and needs no external power, batteries or wiring. Supplied with 2 capillary tubes (6+11 m, 17 m total) linking the room sensor to the Danfoss FE-series climate valve(s) it operates. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5469). OEM P/N 013G5469, EAN 5702420072104. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G5469

Brand

Danfoss

Type

FED

Product group

Room controller

Function

Self-acting proportional room-temperature controller — sequence control of a cooling and a heating circuit

Operating principle

Gas/liquid-charged sensing element, self-acting (no power, no wiring)

Capillary tube

6+11 m (2 capillaries, 17 m total)

Feature description

FED sensor for sequence control of cooling and heating circuit, 6+11m

Contains batteries

No

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.52 kg

Gross weight

0.52 kg

EAN

5702420072104

HS code

9032.10 (thermostats)

Capillary tube [m]

6+11

Description

FED sensor for sequence control of cooling and heating circuit, 6+11m

Material

Gas/liquid-charged thermostatic sensing element with capillary tube(s); polymer housing

HS Code

9032.10
