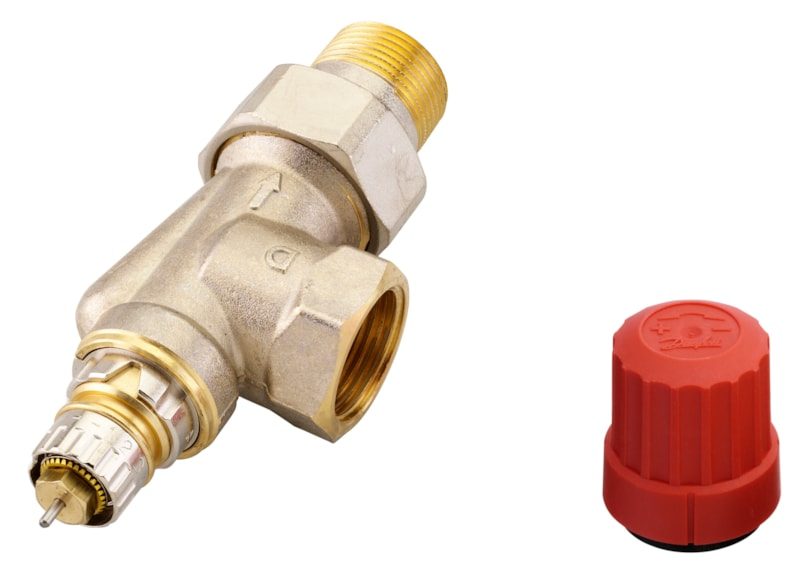

Danfoss RTR-N presetting radiator valve DN 20 Horizontal Angle, Kvs 1 m³/h, 2-Pipe system

Danfoss RTR-N presetting radiator valve, OEM order code 013G7049 — a normal-flow thermostatic radiator valve with a built-in presetting device (settings 1.7 and N) that fixes the hydraulic authority so the system can be balanced without extra fittings. Normal flow valves with presetting. Nominal size DN 20, horizontal angle pattern, connection Rp 3/4 (inlet) / R 3/4 (outlet), Kvs 1 m³/h, max. working pressure 10 bar, test pressure 16 bar, max. differential pressure 0.6 bar, flow temperature up to 120 °C. Finish Nickel plated. With presetting (settings 1.7 and N) for hydraulic balancing. It accepts an RA/RTR-series thermostatic sensor or actuator on the valve clamp connection. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G7049). OEM P/N 013G7049, EAN 5702425126178. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

013G7049

Brand

Danfoss

Type

RTR-N

Product group

Radiator Valves

Store description

Normal flow valves with presetting

Application

2-pipe system

Design

Horizontal Angle

Dimension standard

D

Valve size

DN 20

Valve type

Normal flow

Connection size (inlet)

Rp 3/4

Connection size (outlet)

R 3/4

Connection types

Internal thread

Tailpiece type

Standard

Presetting

yes

Kvs value

1 m³/h

Kv measuring range

0.16 - 0.8 m³/h

Kv at setting 1

0.16 m³/h

Kv at setting 2

0.2 m³/h

Kv at setting 3

0.25 m³/h

Kv at setting 4

0.35 m³/h

Kv at setting 5

0.47 m³/h

Kv at setting 6

0.6 m³/h

Kv at setting 7

0.73 m³/h

Kv at setting N

0.8 m³/h

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Differential pressure (max)

0.6 bar

Finish

Nickel plated

CE mark

No

REACH candidate-strip substances

Lead (CAS no. 7439-92-1)

Net weight

0.421 kg

Gross weight

0.439 kg

EAN

5702425126178

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, nickel plated

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
