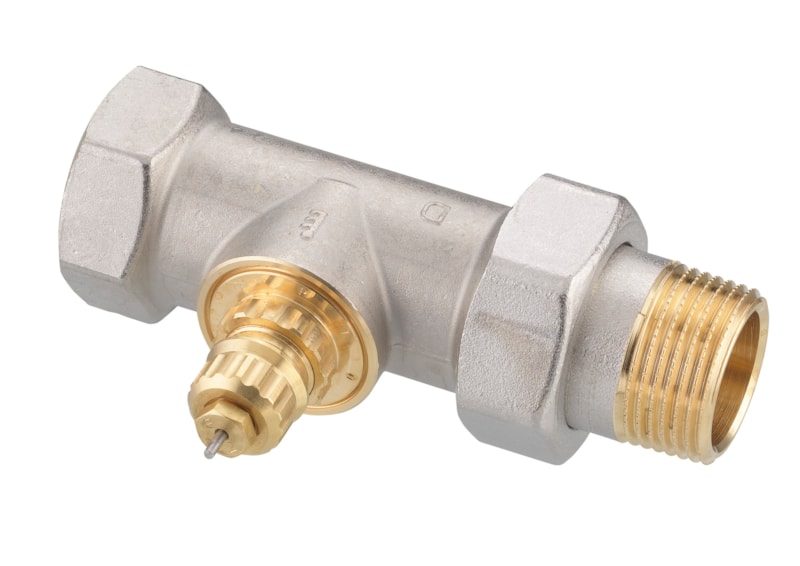

Danfoss RTR-G high-flow radiator valve DN 25 Straight, Kvs 4.58 m³/h, 1-Pipe system

Danfoss RTR-G high-flow radiator valve, OEM order code 013G7028 — a high-flow fixed-capacity thermostatic radiator valve (no presetting) sized for single-pipe systems where a large valve Kvs is needed to keep the pressure loss low. High capacity valve for 1-pipe systems. Nominal size DN 25, straight pattern, connection Rp 1 (inlet) / R 1 (outlet), Kvs 4.58 m³/h, max. working pressure 16 bar, test pressure 25 bar, max. differential pressure 0.16 bar, flow temperature up to 120 °C. Finish Nickel plated. It accepts an RA/RTR-series thermostatic sensor or actuator on the valve clamp connection. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G7028). OEM P/N 013G7028, EAN 5702425126246. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

013G7028

Brand

Danfoss

Type

RTR-G

Product group

Radiator Valves

Store description

High capacity valve for 1-pipe systems

Application

1-pipe system

Design

Straight

Dimension standard

D

Valve size

DN 25

Valve type

High flow

Connection size (inlet)

Rp 1

Connection size (outlet)

R 1

Connection types

Internal thread

Tailpiece type

Standard

Presetting

no

Kvs value

4.58 m³/h

Kv measuring range

0.57 - 2.27 m³/h

Kv at Xp=1K

0.57 m³/h

Kv at Xp=2K

2.27 m³/h

Flow temperature (max)

120 °C

Working pressure (max)

16 bar

Test pressure

25 bar

Differential pressure (max)

0.16 bar

Finish

Nickel plated

CE mark

No

REACH candidate-strip substances

Lead (CAS no. 7439-92-1)

Net weight

0.616 kg

Gross weight

0.642 kg

EAN

5702425126246

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, nickel plated

Pressure Rating

16 bar max working (test 25 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
