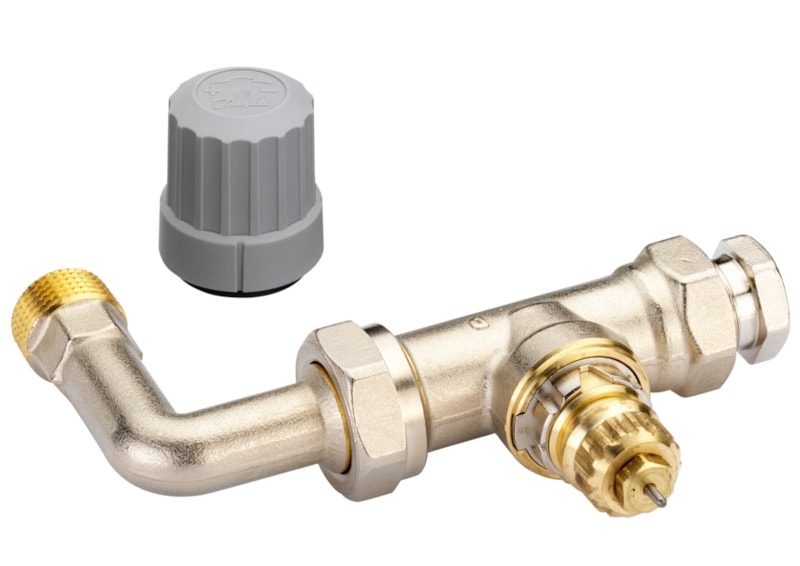

Danfoss RTR-KE/KEW manifold valve with elbow Straight, Kvs 2.5 m³/h, 1-Pipe system

Danfoss RTR-KE/KEW manifold valve with elbow, OEM order code 013G7042 — a radiator valve manifold assembly supplied with an elbow, used to build the radiator connection group. RTR-KE 15 S, w/elbow. Nominal size connection G 1/2, straight pattern, connection G 1/2 (inlet) / R 1/2 (outlet), Kvs 2.5 m³/h, max. working pressure 10 bar, test pressure 16 bar, max. differential pressure 0.6 bar, flow temperature up to 120 °C. It accepts an RA/RTR-series thermostatic sensor or actuator on the valve clamp connection. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G7042). OEM P/N 013G7042, EAN 5702425127519. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

013G7042

Brand

Danfoss

Type

RTR-KE/KEW

Product group

Manifold Assemblies

Store description

RTR-KE 15 S, w/elbow

Application

1-pipe system

Design

Straight

Valve type

RTR-KE with elbow

Connection size (inlet)

G 1/2

Connection size (outlet)

R 1/2

RLV type

no RLV

Contents of set

Valve

Kvs value

2.5 m³/h (max)

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Differential pressure (max)

0.6 bar

CE mark

No

REACH candidate-strip substances

Lead (CAS no. 7439-92-1)

Net weight

0.374 kg

Gross weight

0.375 kg

EAN

5702425127519

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
