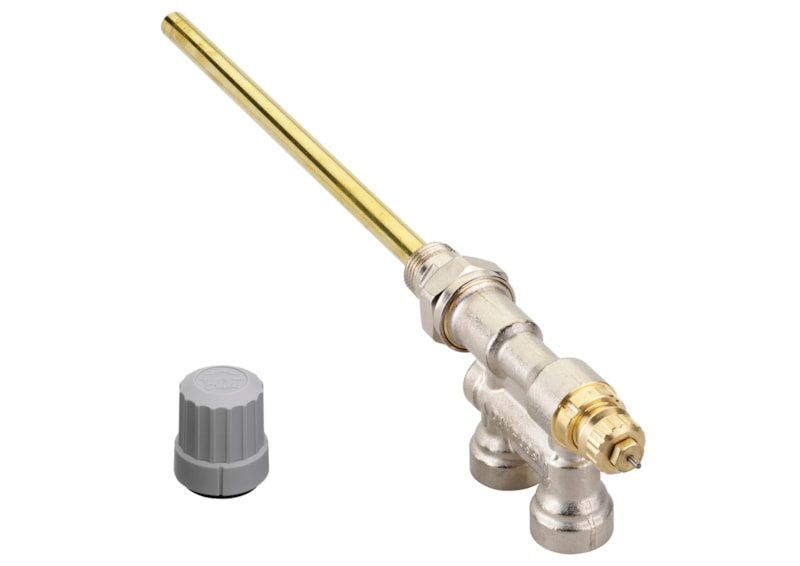

Danfoss RTR 15/6TB lance valve Wall connection, Kvs 1 m³/h, 2-Pipe system

Danfoss RTR 15/6TB lance valve, OEM order code 013G7000 — a special side-connection ("lance") radiator valve whose lance reaches into the radiator so the thermostatic valve sits at the radiator side connection; for two-pipe systems. RTR 15/6TB special lance valve for radiator side connection. Nominal size connection Rp 1/2, wall connection pattern, connection Rp 1/2 (inlet) / R 1/2 (outlet), Kvs 1 m³/h, max. working pressure 10 bar, test pressure 16 bar, max. differential pressure 0.6 bar, flow temperature up to 120 °C. It accepts an RA/RTR-series thermostatic sensor or actuator on the valve clamp connection. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G7000). OEM P/N 013G7000, EAN 5702425126260. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

013G7000

Brand

Danfoss

Type

RTR 15/6TB

Product group

Lance Valves

Store description

RTR 15/6TB special lance valve for radiator side connection

Application

2-pipe system

Design

Wall connection

Connection size (inlet)

Rp 1/2

Connection size (outlet)

R 1/2

Kvs value

1 m³/h

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Differential pressure (max)

0.6 bar

CE mark

No

REACH candidate-strip substances

Lead (CAS no. 7439-92-1)

Net weight

0.562 kg

Gross weight

0.57 kg

EAN

5702425126260

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
