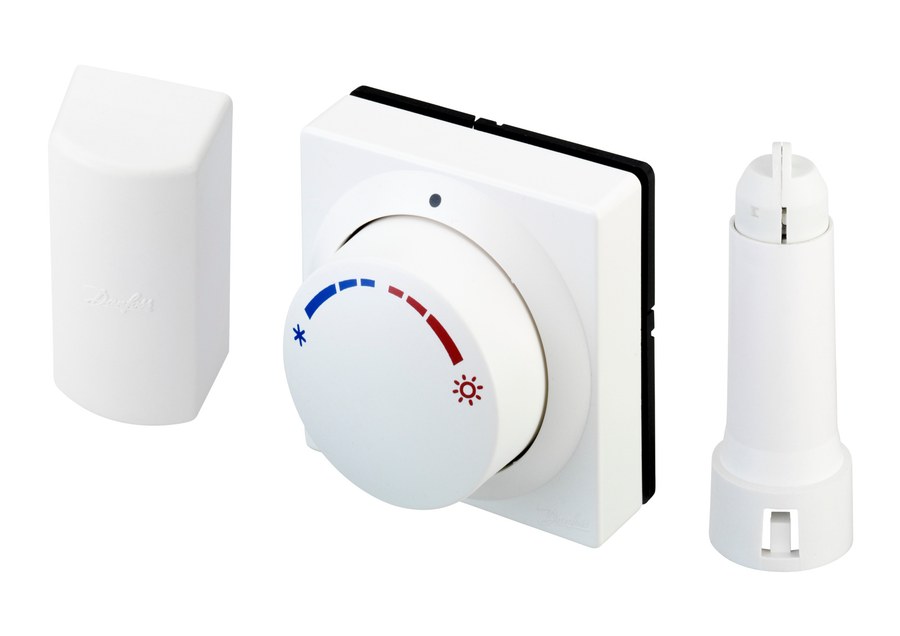

Danfoss FEV self-acting room controller — control of a heating circuit, 2+2 m capillary
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FEV self-acting room controller, OEM order code 013G5466 — a proportional room-temperature controller for control of a heating circuit. FEV sensor for control of heating circuit. The gas/liquid-charged sensing element modulates the heating valve to hold the set room temperature, opening the valve as the room cools below set point; it is self-acting and needs no external power, batteries or wiring. Supplied with 2 capillary tubes (2+2 m, 4 m total) linking the room sensor to the Danfoss FE-series climate valve(s) it operates. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5466). OEM P/N 013G5466, EAN 5702420049700. HS 9032.10 (thermostats).
Technical Specifications
- Code number
- 013G5466
- Brand
- Danfoss
- Type
- FEV
- Product group
- Room controller
- Function
- Self-acting proportional room-temperature controller — control of a heating circuit
- Operating principle
- Gas/liquid-charged sensing element, self-acting (no power, no wiring)
- Capillary tube
- 2+2 m (2 capillaries, 4 m total)
- Feature description
- FEV sensor for control of heating circuit
- Contains batteries
- No
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.452 kg
- Gross weight
- 0.458 kg
- EAN
- 5702420049700
- HS code
- 9032.10 (thermostats)
- Capillary tube [m]
- 2+2
- Description
- FEV sensor for control of heating circuit
Standards & Compliance
- Material
- Gas/liquid-charged thermostatic sensing element with capillary tube(s); polymer housing
- HS Code
- 9032.10
Compatibility & Fitment
Self-acting FEV room controller for a heating circuit, operating Danfoss FE-series climate-control valves via 2 capillary tubes (2+2 m). Route the capillary run(s) from the wall-mounted controller to the valve position(s); the individual tube lengths (2+2 m) are fixed and cannot be shortened. Confirm the circuit type (a heating circuit) and the capillary length (2+2 m) suit the installation before ordering. Self-acting — no power supply required.
