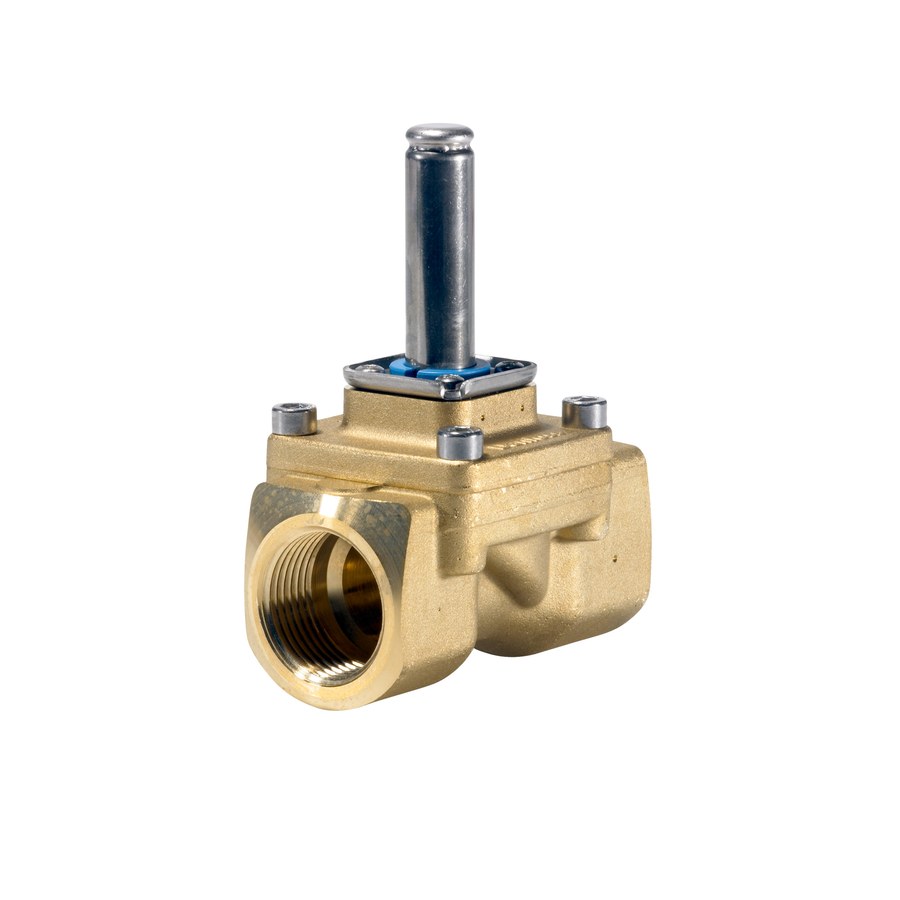

EV250B 0-10 BAR, 1", FKM

Danfoss 032U5257 solenoid valve.

Manufacturer part number (MPN)

032U5257 EAN / GTIN: 5702423179206 Sales unit: pcs Package quantity: 12 pcs Code number: 032U5257 Product type: EV250B Product group: Solenoid valves Type designation: EV250B 22 Function: NC Body material: DZR brass Connection Internal/External: Internal Connection material: DZR brass Connection size: 1 Connection standard: ISO 228-1 Connection type: G Orifice size: 22.00 mm Orifice size fraction: 7/8 in Kv value: 7.000 m³/h Cv value: 8.100 gal/min Max media viscosity: 50 cSt Max. test pressure: 15.0 bar Max. working pressure: 10.0 bar Medium temperature range: 0 °C to 100 °C Ambient temperature max.: 80 °C Fluid Group: 1 REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 1.035 kg Actuator: B Actuator size: 13.5 mm, 0.53 in Actuator system: 13.5 mm Application: Closed and Drain Differential pressure: 0.000 bar to 10.000 bar EEE category: 5 small equipment (any external dimension < 50 cm) Est. time to close, water: 100 ms Est. time to open, water: 150 ms In scope of WEEE: Yes Media recommendations: Oil,Comp.Air,Vacuum Media tolerance comments: Slightly aggressive media; Water at max. 60°C/140 °F Number of ways: 2/2 Housing material: Brass Surface protection: Untreated material sealing: Fluorelastomer rubber (FPM/FKM) Nominal diameter: DN 25 Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1) Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1) Max. pressure difference for AC model: 10 bar Max. pressure difference for DC model: 10 bar Min. pressure difference: 0 bar Max. medium temperature (continuous): 100 °C Min. medium temperature (continuous): 0 °C Max. ambient temperature: 80 °C Model: Straight Deactivated when open: No Max. viscosity: 50 cSt Working length connection 1: 90 mm Height: 118.6 mm Kvs value: 7 m³/h Country of origin: Denmark

HS Code

8481.80

• EAN 5702423179206
• SAP 1000053966
• Code 8537347
