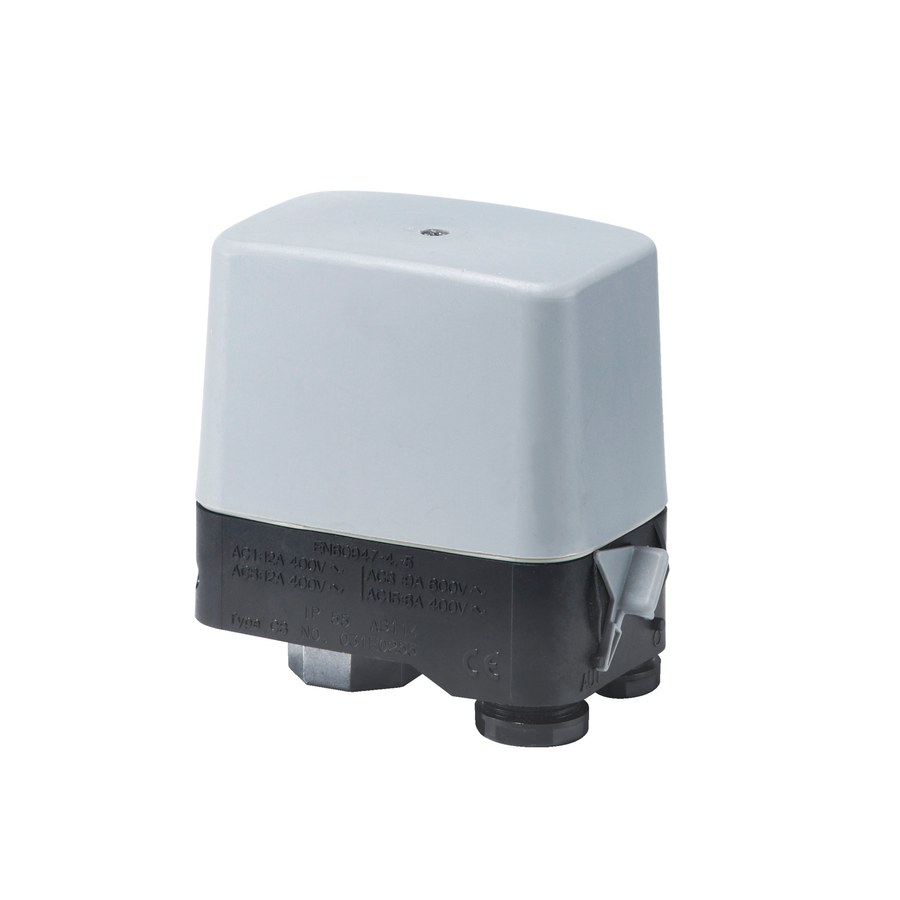

Pressure Switch CS. 4-12 BAR031E0

Danfoss 031E023566 pressure switch.

Manufacturer part number (MPN)

031E023566 EAN / GTIN: 5702423208708 Sales unit: pcs Package quantity: 30 pcs Code number: 031E023566 Max. Working Pressure: 12.0 bar Ambient temperature range: -20 °C to 70 °C Net weight: 0.438 Kilogram Approval: CE / EAC / LLC CDC EURO-TYSK / LVD / RoHS / TYSK Contact function: TPST Contact rating: AC3=12 A, 220 - 415 V / AC3=9 A, 600 V / DC13=2 A, 220 V / DC14=2 A, 220 V Electrical conn. Male/Female: Female Electrical connection: Screwed cable entry Electrical connection size: Pg 16 Electrical connection standard: DIN 40430 Electrical spec. standard: EN 60947-4/-5 Enclosure rating IP: IP55 Max. test pressure [bar] Pe: 20.0 bar Pressure connection size: 1/2 Pressure connection standard: ISO 228-1 Pressure connection type: G Pressure Male/Female: Female Pressure sensing element: Diaphragm Product accessories: Switches accessories Product description: Pressure Switch Product Type: CS Proposition 65: Cancer and Reproductive Harm Quantity per packing format: 30 pc REACH Candidate List substances: Lead (CAS no. 7439-92-1) Reset function: Auto SCIP dossier no.: e65e8dcc-5aa5-41db-aed7-9aec2d1ff7f0 SCIP dossier product name: CS Pressure Switch Serviceable: No Diff.@Max. range setting: 2.00 bar to 4.00 bar Diff.@Min. range setting: 1.00 bar to 1.50 bar Regulation range [bar] Pe: 4.00 bar to 12.00 bar Width: 66 mm Height: 105 mm Depth: 107 mm Connection: Internal thread cylindrical BSPP-G (ISO 228-1) With display: No Max. operation pressure: 10000 hPa Type of electric connection: Screw connection Degree of protection (IP): IP55 Rated voltage Ue at AC 50 Hz: 220–415 V Engaging pressure: 4–12 bar Electronic version: No Suitable as 2-point controller: Yes Suitable as limiter: Yes Suitable as guard: Yes Max. test pressure: 10 bar Medium temperature: 0–70 °C Country of origin: Poland

HS Code

9032.20

• EAN 5702423208708
• SAP 1000050352
• Code 8814983
