BB 24V 50 HZ, 10W (018F7358)
Pricing
Request a quote
We reply within 24 hours
Product Description

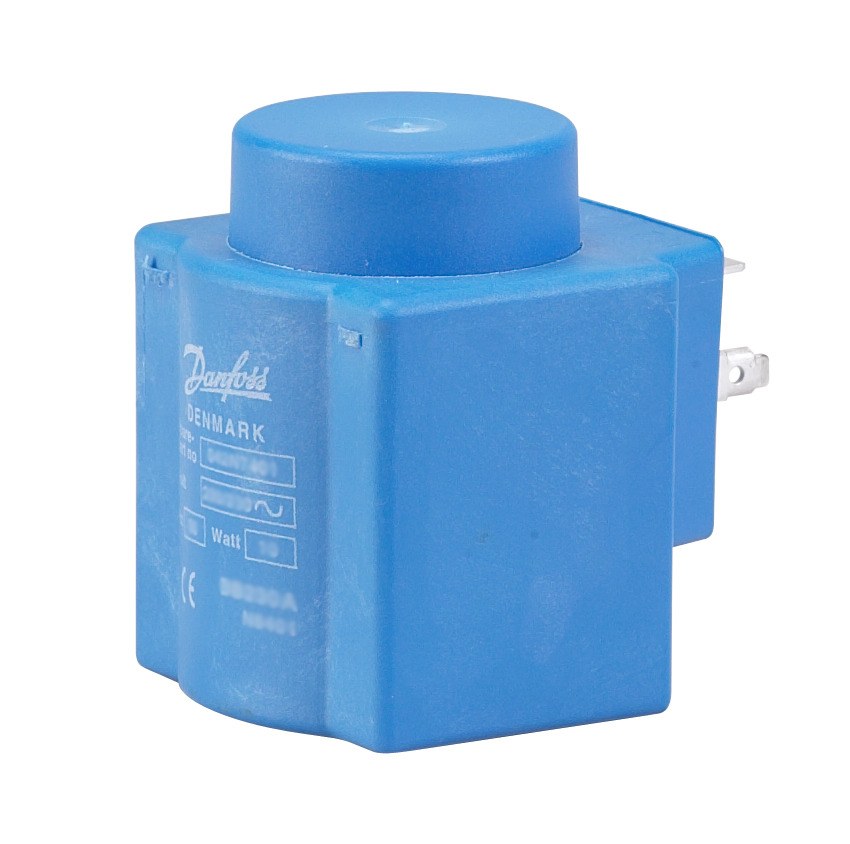

Danfoss 018F7358 Coil Without Plug.
Technical Specifications
- Manufacturer part number (MPN)
- 018F7358
- EAN / GTIN
- 5702428044530
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Voltage
- 24 V
- Frequency
- 50 Hz
- Power
- 10 W
- Net weight
- 0.238 Kilogram
- Type
- BB024AS
- Product group
- Solenoid valves
- Actuator size
- 13.5 mm
- Ambient temperature range [°C] [max]
- 80 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 176 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Coil connection
- DIN Spade
- Coil design standard
- VDE 0580
- Coil fastening
- Clip-on
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Blue
- Compliance
- EN 60730-1
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- DIN Spade
- Electrical connection size
- 6.3 mm x 0.8 mm
- Electrical connection standard
- EN175301-803
- Electrical connector
- 3 x spades
- Enclosure rating IP
- IP00
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50 Hz
- In scope of WEEE
- Yes
- Power consumption 50Hz [VA]
- 19 VA
- Power consumption [W] 50Hz
- 11 W
- REACH Candidate Strip substances
- No
- Rel. Humidity [% RH] [max]
- 97 %
- Rel. Humidity [% RH] [min]
- 0 %
- Rel. Humidity conditions
- Non-condensation
- Spare part number
- 018F7358
- Supply voltage 50Hz Max [V]
- 24 V
- Supply voltage [V] AC
- 24 V
- Type designation
- BB024AS
- Type of accessory/spare part
- Coil
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 8505.90
Cross References
- EAN 5702428044530
- SAP 1000035423
- Code 8513666
Product Documentation
