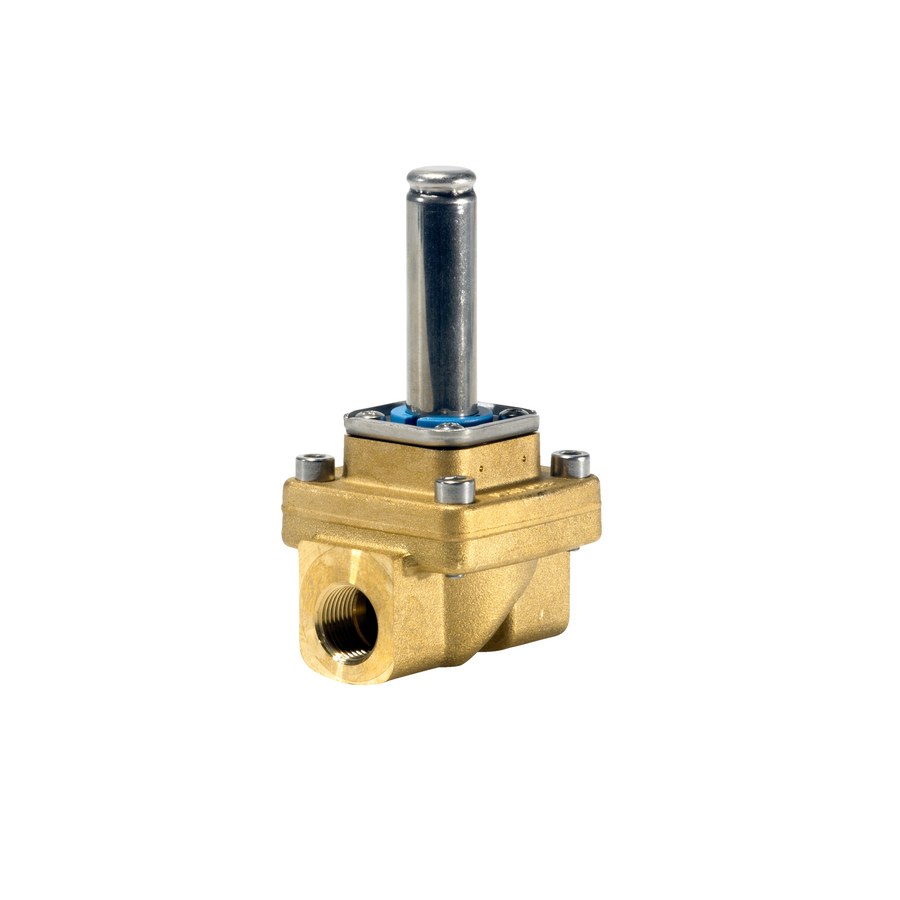

EV250B 0-16 BAR, 3/8", EPDM

Danfoss 032U5250 solenoid valve.

Manufacturer part number (MPN)

032U5250 EAN / GTIN: 5702423179138 Sales unit: pcs Package quantity: 24 pcs Code number: 032U5250 Product type: EV250B Product group: Solenoid valves Type designation: EV250B 10 Function: NC Body material: DZR brass Connection Internal/External: Internal Connection material: DZR brass Connection size: 3/8 Connection standard: ISO 228-1 Connection type: G Orifice size: 10.00 mm Orifice size fraction: 3/8 in Kv value: 2.500 m³/h Cv value: 2.900 gal/min Max media viscosity: 50 cSt Max. test pressure: 15.0 bar Max. working pressure: 10.0 bar Medium temperature range: -30 °C to 120 °C Ambient temperature max.: 80 °C Fluid Group: 1 Approval: SINTEF REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.572 kg Actuator: B Actuator size: 13.5 mm, 0.53 in Actuator system: 13.5 mm Application: Closed and Drain Differential pressure: 0.000 bar to 10.000 bar EEE category: 5 small equipment (any external dimension < 50 cm) Est. time to close, water: 100 ms Est. time to open, water: 100 ms In scope of WEEE: Yes Media recommendations: Technical & Soft Water Media tolerance comments: -30–120 °C: 0–10 bar; 120–140 °C: 0–4 bar; Slightly aggressive media Housing material: Brass Surface protection: Untreated material sealing: Ethylene-propylene diene monomer rubber (EPDM) Nominal diameter: DN 10 Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1) Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1) Max. pressure difference for AC model: 10 bar Max. pressure difference for DC model: 10 bar Min. pressure difference: 0 bar Max. medium temperature (continuous): 120 °C Min. medium temperature (continuous): -30 °C Max. ambient temperature: 80 °C Model: Straight Deactivated when open: No Max. viscosity: 50 cSt Working length connection 1: 58 mm Height: 103.5 mm Kvs value: 2.5 m³/h Country of origin: Denmark

HS Code

8481.80

• EAN 5702423179138
• SAP 1000061024
• Code 8919060
