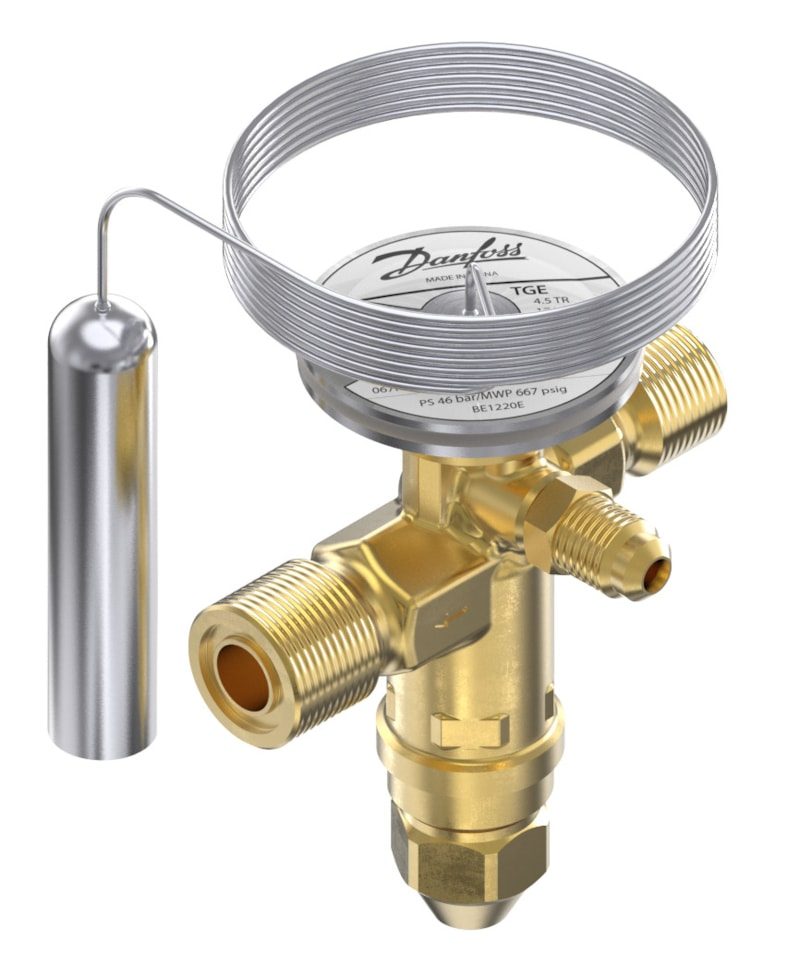

Danfoss TGE thermostatic expansion valve, R134A/R513A, 3/8 in x 1/2 in orfs
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TGE thermostatic expansion valve, OEM P/N 067N5087. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R134a/R513A. Orifice assembly size 11. Nominal capacity 24 kW (7 TR) at the standard rating condition. Evaporating temperature range -10 to 15 °C. Inlet 3/8 in and outlet 1/2 in ORFS (O-ring face seal); external equalizer 1/4 in Solder ODF. Static superheat 4 °C (adjustable). MOP 70 psig at 20 °C. Max working pressure 49 bar (711 psig). Brass body; ORFS (O-ring face seal) connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428324205.
Technical Specifications
- Brand
- Danfoss
- Part number
- 067N5087
- Type
- TGE (externally equalized, balanced port, bi-flow)
- Category
- Expansion valves — thermostatic
- Refrigerant
- R134a/R513A
- Nominal capacity
- 24 kW (7 TR)
- Orifice size
- 11
- Pressure equalization
- Externally equalized
- Inlet connection
- 3/8 in, ORFS
- Outlet connection
- 1/2 in, ORFS
- External equalizer connection
- 1/4 in, Solder ODF
- Static superheat
- 4 °C, adjustable
- MOP 70 psig at 20 °C
- Evaporating temperature range
- -10 to 15 °C
- Max working pressure
- 49 bar (711 psig)
- Body material
- Brass
- Connection type
- ORFS (O-ring face seal)
- Capillary tube
- 1500 mm with bulb strap
- PED category
- Art. 4, par. 3
- EAN
- 5702428324205
- Approvals
- UL (C UL US), EAC
Standards & Compliance
- Size / Series
- 3/8 in x 1/2 in
- Material
- Brass body, ORFS (O-ring face seal) connections
- Pressure Rating
- 49 bar (711 psig) max working pressure
- Temperature Range
- -10 to 15 °C (evaporating)
- Classification / Approval
- UL (C UL US), EAC
- HS Code
- 8481.80
Compatibility & Fitment
Rated for R134a/R513A. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss TGE thermostatic expansion valve, R134A/R513A, 5/8 in x 3/4 in orfs
067N5089
Danfoss

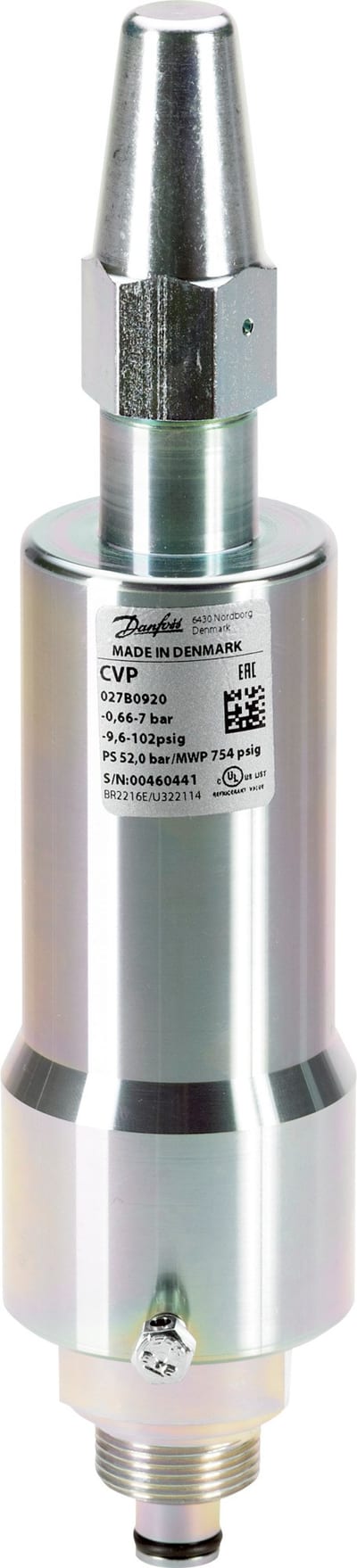

Danfoss CVPE-L constant-pressure pilot valve, hydrocarbon, low pressure -0.66 to 7 bar, for ICS servo-operated main valves
027B1020
Danfoss
Danfoss CVPE-M constant-pressure pilot valve, hydrocarbon, medium pressure 4 to 28 bar, for ICS servo-operated main valves
027B1021
Danfoss

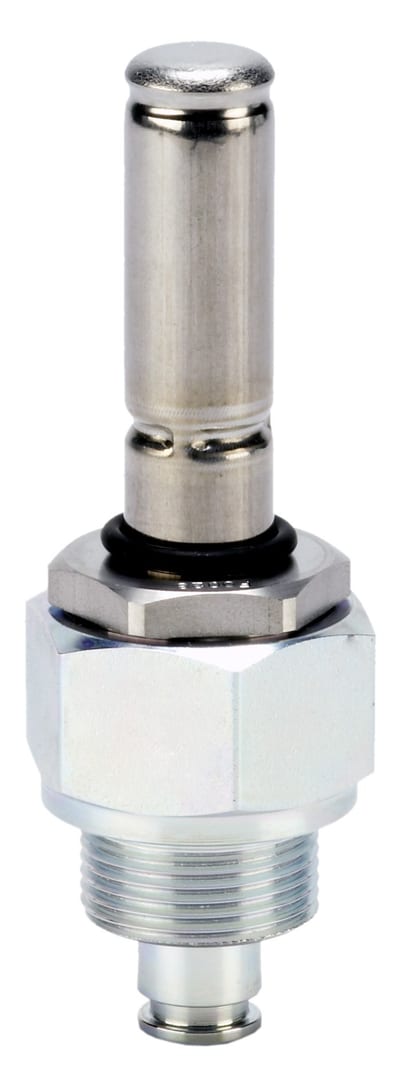

Danfoss EVM (NO) normally-open solenoid pilot valve, 1.8 mm orifice, for ICS servo-operated main valves
027B1130
Danfoss
Danfoss SV 3E float valve, hydrocarbon, modulating liquid-level regulating valve, Kv 0.14, MWP 28 bar
027B0081
Danfoss
Danfoss SV 1 float valve, modulating liquid-level regulating valve, Kv 0.06, MWP 28 bar
027B2021
Danfoss

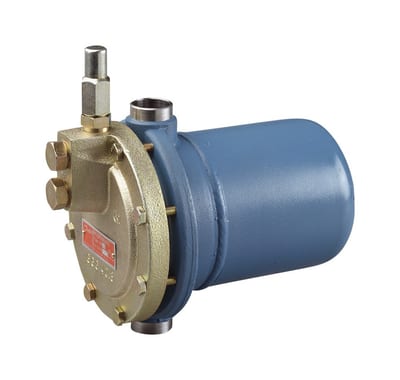

Danfoss SV 3 float valve, modulating liquid-level regulating valve, Kv 0.14, MWP 28 bar
027B2023
Danfoss

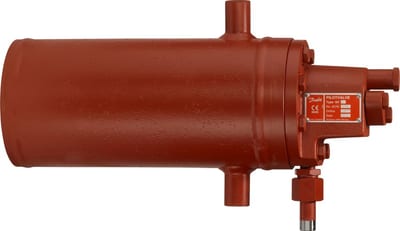

Danfoss SV 4 float valve, modulating liquid-level regulating valve, Kv 0.23, MWP 28 bar
