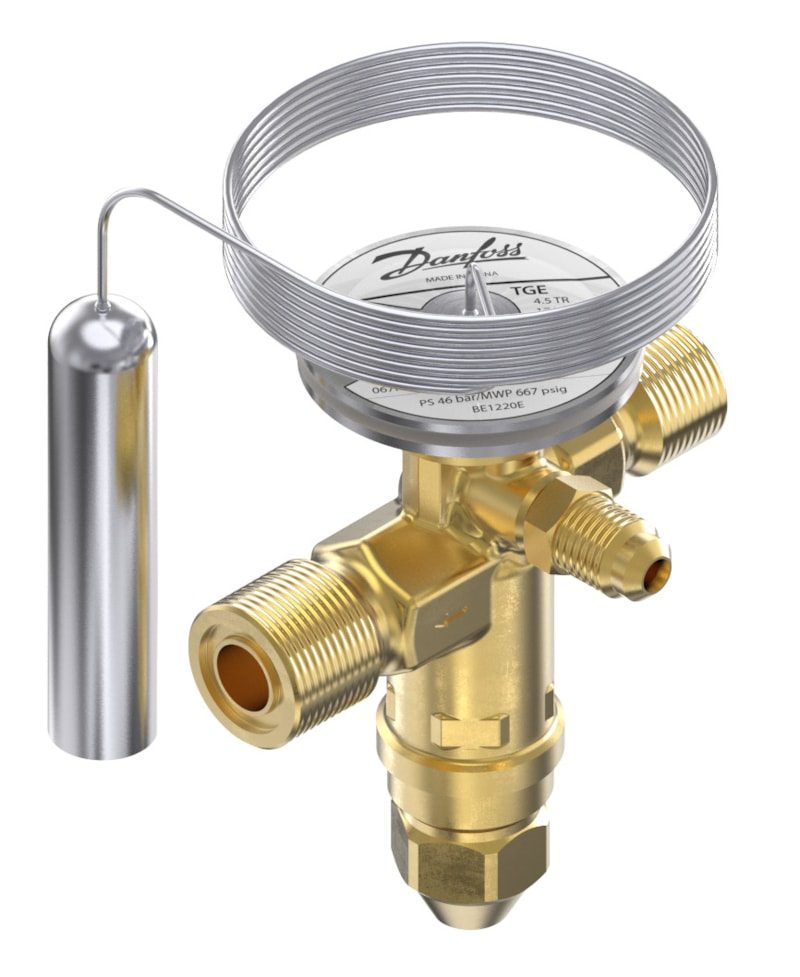

Danfoss 067N5089 TGE thermostatic expansion valve, R134a/R513A, 5/8 in x 3/4 in orfs
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TGE thermostatic expansion valve, OEM P/N 067N5089. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R134a/R513A. Orifice assembly size 16. Nominal capacity 37 kW (10 TR) at the standard rating condition. Evaporating temperature range -10 to 15 °C. Inlet 5/8 in and outlet 3/4 in ORFS (O-ring face seal); external equalizer 1/4 in Solder ODF. Static superheat 4 °C (adjustable). MOP 70 psig at 20 °C. Max working pressure 49 bar (711 psig). Brass body; ORFS (O-ring face seal) connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428324229.
Specifications
- Part number
- 067N5089
- HS code
- 8481.80
- Material
- Brass body, ORFS (O-ring face seal) connections
- Pressure rating
- 49 bar (711 psig) max working pressure
- Temperature range
- -10 to 15 °C (evaporating)
- Standard size
- 5/8 in x 3/4 in
Compatibility
Rated for R134a/R513A. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
Approvals
