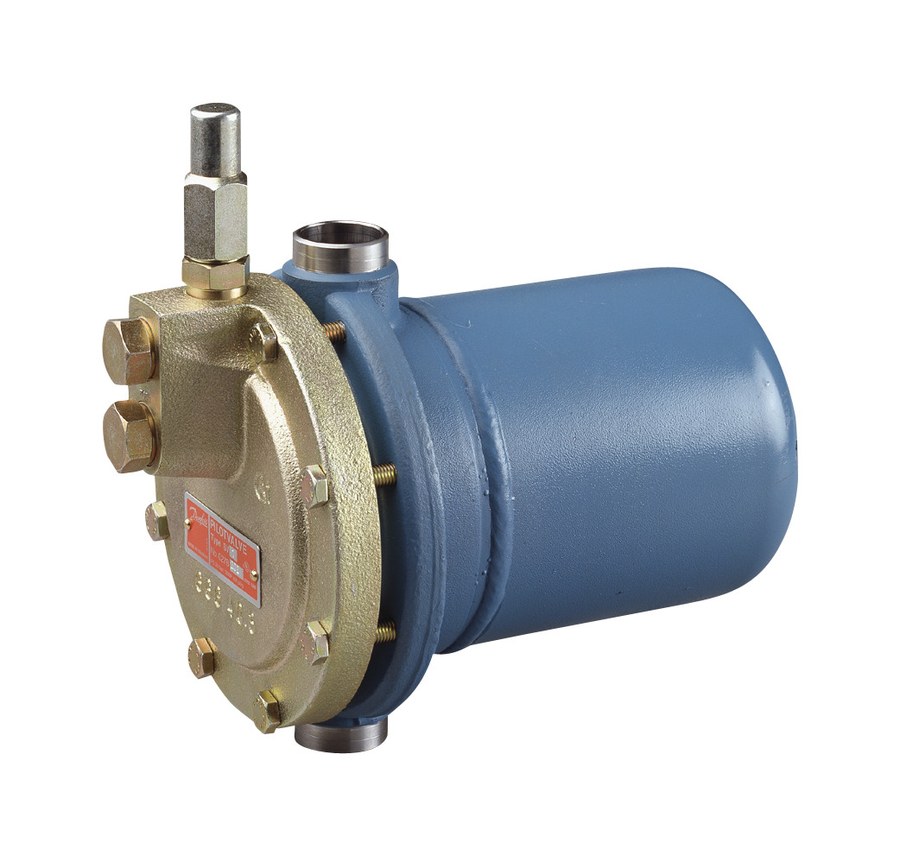

Danfoss SV 3E float valve, hydrocarbon, modulating liquid-level regulating valve, Kv 0.14, MWP 28 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SV 3E float valve, code 027B0081 — the hydrocarbon (E) version of the SV 3 modulating liquid-level regulating (float) valve for industrial refrigeration. The float senses liquid level in a receiver or separator and modulates the orifice to hold a constant level. Flow coefficient Kv 0.14 m3/h (Cv 0.16). Maximum working pressure 28 bar (406 psig); maximum differential pressure 16 bar (232 psi). Balance-pipe connections 1 1/8 in solder or 1 in weld; pilot line OD 9.8 / ID 6.8 mm welding. Low-temperature steel body and float housing. Media temperature -50 to 65 C (-58 to 149 F). Approved for hydrocarbon refrigerants R1270, R170, R290, R600, R600a, RE170.
Technical Specifications
- Type
- SV 3E (float valve, hydrocarbon version)
- Code number
- 027B0081
- Product family
- SV liquid-level regulating / float expansion valves
- Function
- Modulating float-operated liquid-level control
- Kv value
- 0.14 m3/h
- Cv value
- 0.16 gal/min
- Maximum working pressure
- 28 bar (406 psig)
- Max differential pressure
- 16 bar (232 psi)
- Balance pipe connection (solder)
- 1 1/8 in
- Balance pipe connection (weld)
- 1 in
- Pilot line connection
- OD 9.8 / ID 6.8 mm, welding
- Body / float housing material
- Low-temperature steel
- Media temperature range
- -50 to 65 C (-58 to 149 F)
- Refrigerants
- R1270, R170, R290, R600, R600a, RE170
- Net weight
- 7.035 kg
- Gross weight
- 7.608 kg
- Approvals
- CE, EAC
- EAN
- 5702428292184
- Product group
- Liquid level regulating valves
- Approval
- CE
- Balance pipe Solder conn. size
- 1 1/8 in
- Balance pipe Weld conn. size
- 1 in
- Body material
- Low temperature steel
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection Code
- (2001:D23:6;2001:D26:25); (2001:D26:25;2001:D23:6)
- Connection material
- Low temperature, steel
- Cv value [gal/min]
- 0.16 gal/min
- Differential pressure max[bar]
- 16 bar
- Differential pressure max[psi]
- 232 psi
- EU RoHS compliance
- Out of scope
- Float housig material
- Steel
- Fluid Group
- 1
- Kv value [m³/h]
- 0.14 m³/h
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 406 psig
- PED category
- I
- Pilot line conn. size [mm]
- OD Ø9,8/ID Ø6,8
- Pilot line connection type
- Welding
- Rated cap. conditions [IMP]
- +41 °F/+89,6 °F, sub. Cooling
- Rated cap. conditions [SI]
- +5 °C/+32 °C, sub. Cooling 4 K
- Rated cap. R404A/R507A [kW]
- 9.7 kW
- Rated cap. R404A/R507A [TR]
- 2.76 TR
- Rated capacity R134a [kW]
- 10 kW
- Rated capacity R134a [TR]
- 2.84 TR
- Rated capacity R22 [kW]
- 13 kW
- Rated capacity R22 [TR]
- 3.7 TR
- Rated capacity R717 [kW]
- 64 kW
- Rated capacity R717 [TR]
- 18.2 TR
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Temperature range [°C] [max]
- 65 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 149 °F
- Temperature range [°F] [min]
- -58 °F
Standards & Compliance
- Size / Series
- Kv 0.14 m3/h
- Material
- Low-temperature steel
- Pressure Rating
- 28 bar
- Temperature Range
- -50 to 65 C
- HS Code
- 8481.80
Compatibility & Fitment
Hydrocarbon (E) variant of SV 3 (027B2023). Used for modulating liquid-level control in receivers/separators. Match orifice/Kv and differential pressure to the level-control duty per the SV data sheet before ordering.
