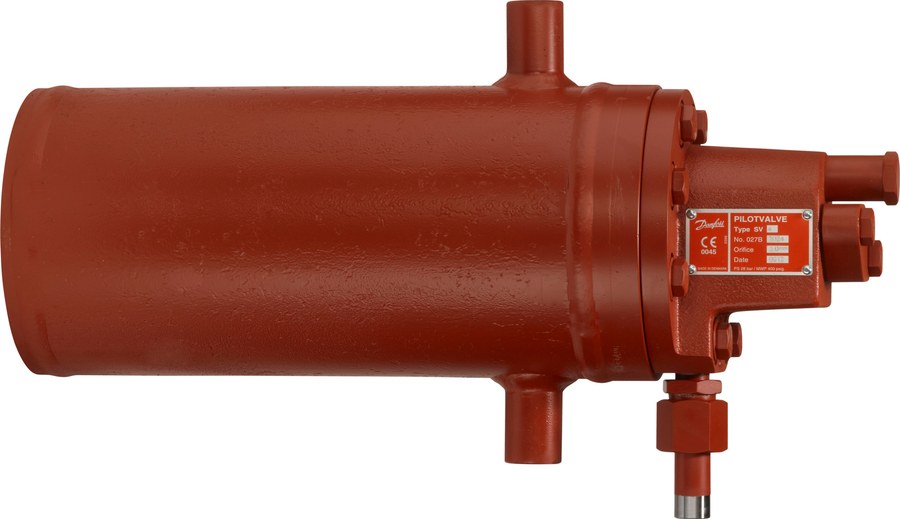

Danfoss SV 6 float valve, modulating liquid-level regulating valve, Kv 0.43, MWP 28 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SV 6 float valve, code 027B2026 — the largest-capacity SV modulating liquid-level regulating (float) valve for industrial refrigeration using HCFC, HFC or R717 (ammonia). The float senses liquid level and modulates the orifice to hold a constant level. Flow coefficient Kv 0.43 m3/h (Cv 0.5). Maximum working pressure 28 bar (406 psig); maximum differential pressure 19 bar (276 psi). Inlet 21.8 mm; balance-pipe weld connection 1 in. Steel body, connections and float housing. Media temperature -50 to 120 C (-58 to 248 F). PED category II.
Technical Specifications
- Type
- SV 6 (float valve)
- Code number
- 027B2026
- Product family
- SV liquid-level regulating / float expansion valves
- Function
- Modulating float-operated liquid-level control
- Kv value
- 0.43 m3/h
- Cv value
- 0.5 gal/min
- Maximum working pressure
- 28 bar (406 psig)
- Max differential pressure
- 19 bar (276 psi)
- Inlet connection
- 21.8 mm
- Balance pipe connection (weld)
- 1 in
- Body / connection / float housing material
- Steel
- Media temperature range
- -50 to 120 C (-58 to 248 F)
- Refrigerants
- R134a, R22, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717
- Net weight
- 24.5 kg
- PED category
- II
- Approvals
- CE, EAC, UL
- EAN
- 5702422148159
- Product group
- Liquid level regulating valves
- Approval
- CE
- Balance pipe Weld conn. size
- 1 in
- Body material
- Steel
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection Code
- (2001:D23:15;2001:D26:25)
- Connection material
- Steel
- Cv value [gal/min]
- 0.5 gal/min
- Differential pressure max[bar]
- 19 bar
- Differential pressure max[psi]
- 276 psi
- EU RoHS compliance
- Yes
- Float housig material
- Steel
- Fluid Group
- 1
- Inlet connection size [mm]
- 21.8 mm
- Kv value [m³/h]
- 0.43 m³/h
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 406 psig
- Pilot line connection type
- Welding
- Rated cap. conditions [IMP]
- +41 °F/+89,6 °F, sub. Cooling
- Rated cap. conditions [SI]
- +5 °C/+32 °C, sub. Cooling 4 K
- Rated cap. R404A/R507A [kW]
- 28.1 kW
- Rated cap. R404A/R507A [TR]
- 7.99 TR
- Rated capacity R134a [kW]
- 29.9 kW
- Rated capacity R134a [TR]
- 8.5 TR
- Rated capacity R22 [kW]
- 38.3 kW
- Rated capacity R22 [TR]
- 10.89 TR
- Rated capacity R717 [kW]
- 186 kW
- Rated capacity R717 [TR]
- 52.9 TR
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- Yes
Standards & Compliance
- Size / Series
- Kv 0.43 m3/h
- Material
- Steel
- Pressure Rating
- 28 bar
- Temperature Range
- -50 to 120 C
- HS Code
- 8481.80
Compatibility & Fitment
Largest of the all-steel SV 4/5/6 float valves (Kv 0.43). Match orifice/Kv and differential pressure to the level-control duty per the SV data sheet before ordering.
