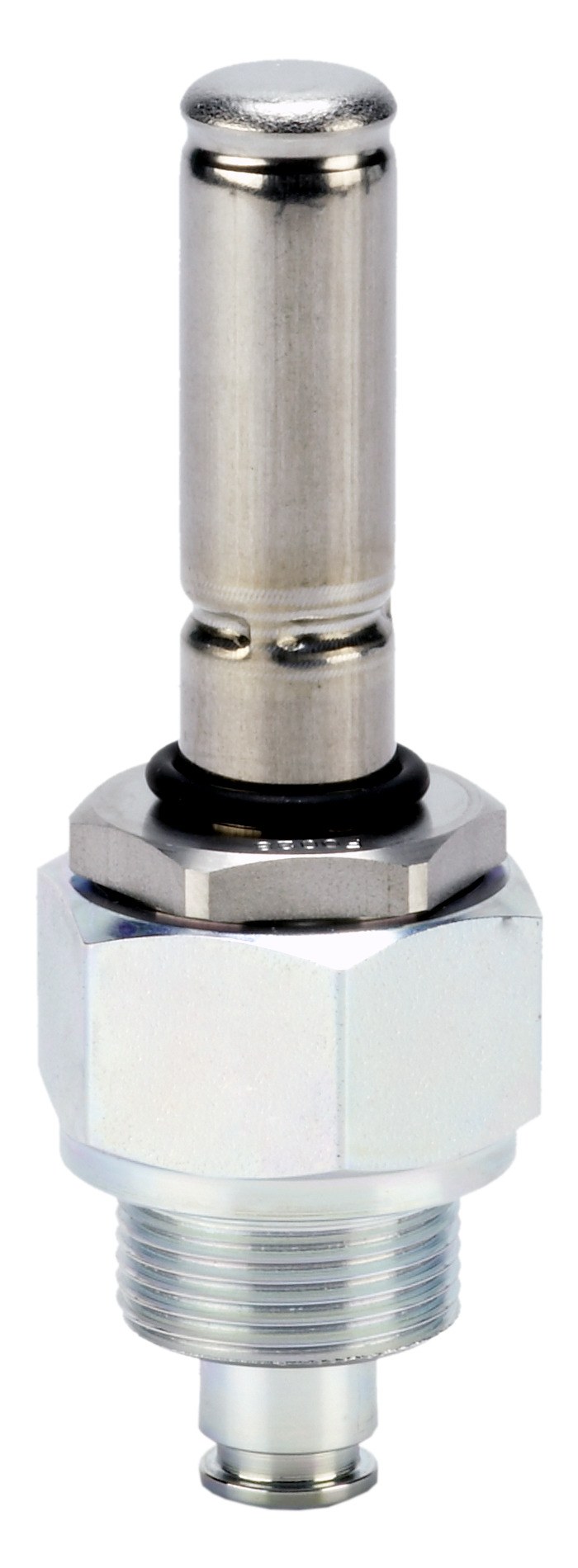

Danfoss EVM (NO) normally-open solenoid pilot valve, 1.8 mm orifice, for ICS servo-operated main valves (code 027B1130)
Danfoss · HVAC & Refrigeration · Pilot Valves
Danfoss EVM (NO) solenoid pilot valve, code 027B1130 — normally-open servo-piston solenoid pilot for on/off control of an ICS servo-operated main valve. When de-energized the pilot is open (main valve open); energizing the coil closes it. Orifice 1.8 mm; flow coefficient Kv 0.118 m3/h (Cv 0.136). Maximum working pressure 65 bar (943 psig); maximum operating pressure differential 19 bar (276 psi). Threaded inlet connection; steel body. Media temperature range -60 to 120 C (-76 to 248 F); ambient -40 to 80 C. The coil is ordered separately.
Specifications
- Part number
- 027B1130
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to 120 C
- Standard size
- 1.8 mm orifice
Compatibility
Normally-open EVM solenoid pilot. Distinct from the catalog EVM NO 027B1132 (same 1.8 mm orifice/Kv but higher MOPD 40 bar and ambient -30 to 50 C); this code is the lower-MOPD 19 bar / wider-ambient -40 to 80 C variant. Also distinct from the normally-closed EVM 3.3 mm (027B1120). Mounts in the pilot channel of Danfoss ICS servo-operated main valves; order the matching coil separately.
Approvals
