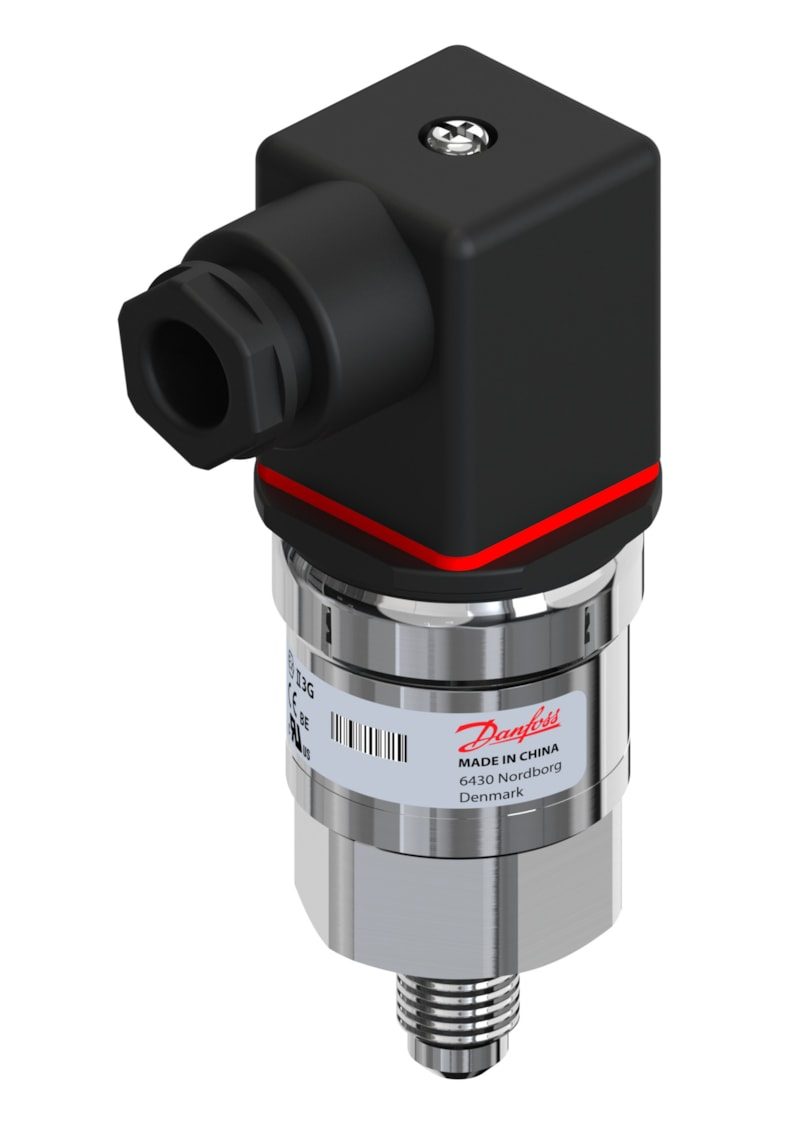

Danfoss AKS 32R Pressure Transmitter -1 to 34 bar ratiometric flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 32R ratiometric pressure transmitter for refrigeration. Measuring range -1 to 34 bar (-14.5 to 493 psi), 0.5-4.5 V ratiometric output, supply 4.5-5.5 V DC, AISI 316L stainless steel wetted parts. Flare 7/16-20 UNF (1/4 in) pressure connection; electrical connection angular connector Pg 9 (EN 175301-803-A). Accuracy +/-0.3% typical. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST. EAN 5702428885324.
Technical Specifications
- Type
- AKS 32R
- Range
- -1 to 34 bar (-14.5 to 493 psi)
- Output
- 0.5-4.5 V (ratiometric)
- Supply
- 4.5-5.5 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- 7/16-20 UNF flare 1/4 in
- Electrical connection
- Angular connector Pg 9, EN 175301-803-A
- Enclosure
- IP65
- Media temp
- -40 to 85°C
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST
- EAN
- 5702428885324
- Part number
- 060G6340
- Net weight
- 0.152 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 98
- Identical product
- 060G4551
- In scope of WEEE
- Yes
- International Article Number
- 5702428885324
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Ratio metric
- Overload pressure max. [bar]
- 55 bar
- Pressure connection notes
- Flare 1/4 in
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ASME B1.1
- Pressure connection type
- UNF
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 34 bar
- Pressure range [bar] [min]
- -1 bar
- Pressure range [psi] [max]
- 493 psi
- Pressure range [psi] [min]
- -14.5 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- Ratiometric of Vsupply [%] [max]
- 90 %
- Ratiometric of Vsupply [%] [min]
- 10 %
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 32R-DG36-A1BC08-0
- Supply voltage [V] DC [max]
- 5.5 V
- Supply voltage [V] DC [min]
- 4.5 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- SAE J513 flare
- Pressure Rating
- -1 to 34 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP65
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
AKS 32R ratiometric (0.5-4.5 V, 5 V supply) flare-connection variant; select range to suit service port.
