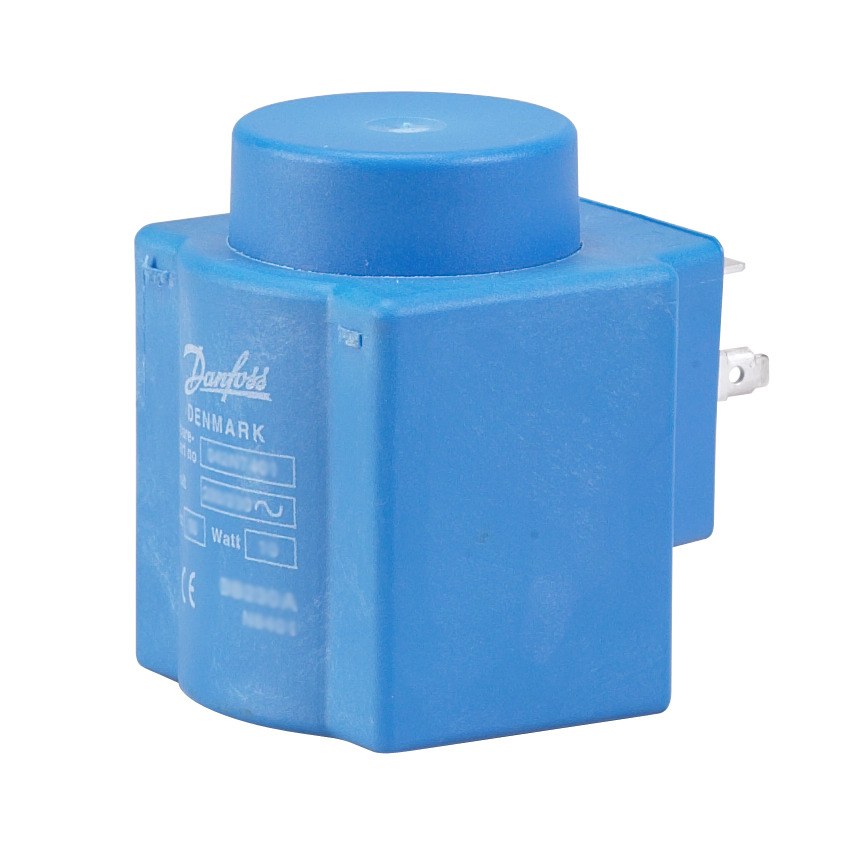

Danfoss BB024DS solenoid valve coil 24V DC clip-on DIN-spade

Danfoss BB024DS clip-on solenoid coil for EV-series valves, 24 V DC, DIN-spade plug connection (DIN 43650A / ISO 4400), Class H insulation, UL 429 / cURus listed. Encapsulated coil for the EV210B/EV220B/EV250B valve range. Valve body and DIN plug ordered separately.

Type

BB024DS clip-on solenoid coil

Supply

24 V DC

Power

16 W

Connection

DIN-spade plug, DIN 43650A / ISO 4400, 3 x 6.3 x 0.8 mm spades

Enclosure

IP00 (coil); IP65 with fitted DIN 43650A plug + gasket

Insulation

Class H to IEC 60085

Ambient

-40 to +50 °C

Relative humidity

0-97 % RH, non-condensing

Actuator size

13.5 mm, clip-on

Duty

continuous

Design standard

VDE 0580; EN 60730-1; UL 429

Weight

0.268 kg net / 0.288 kg gross

Packing

multi-pack (50 pcs)

Fits

EV210B, EV212B, EV220B, EV222B, EV224B, EV227B, EV250B, EV251B

Code number

018F7397

Product group

Solenoid valves

Type designation

BB024DS

Ambient temperature range

-40 °C to 50 °C

Approval

CE; EAC; LLC CDC TYSK; cURus

UL approval file name

MH29671

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

No

EAN

5702428044547

Coil connection

DIN Spade

Coil design standard

VDE 0580

Coil fastening

Clip-on

Coil winding insulation class

Class H to IEC 85

Colour

Blue

Duty rating

Continuous

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

DIN Spade

Electrical connection size

6.3 mm x 0.8 mm

Electrical connection standard

EN175301-803

Electrical connector

3 x spades

Enclosure rating IP

IP00

In scope of WEEE

Yes

Power consumption [W] DC

16.0 W

Rel. Humidity

0 % to 97 %

Rel. Humidity conditions

Non-condensation

Voltage

24 V

Material

Encapsulated coil, Class H insulation

Temperature Range

-40 to +50 °C

IP Rating

IP00 (coil); IP65 with fitted DIN 43650A plug + gasket

HS Code

8505.90
