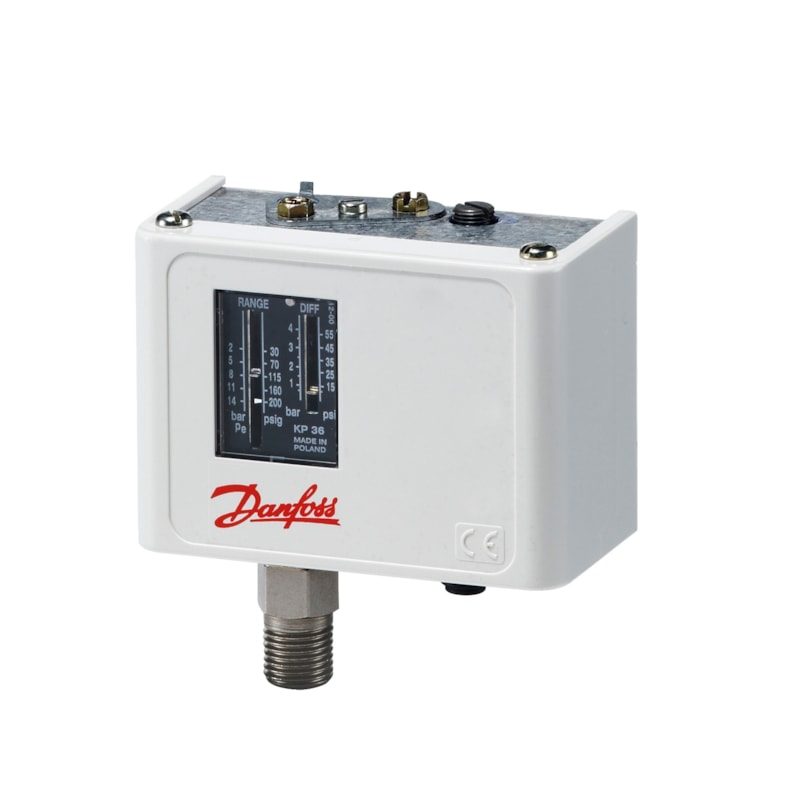

Danfoss KP36 pressure switch, 1–10.5 bar, auto reset, SPDT, G 1/2
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP36 single-pressure switch (code 060-215966). Regulating range 1–10.5 bar, differential 0.7–4 bar, automatic reset, SPDT snap-action contact. G 1/2 male connection per ISO 228-1, IP30 enclosure, ambient -40 to +65 °C. Max test pressure 22 bar. For pressure monitoring and limiting of non-aggressive liquids and gases.
Technical Specifications
- Type
- KP36 single-pressure switch
- Code number
- 060-215966
- Regulating range
- 1–10.5 bar
- Differential range
- 0.7–4 bar
- Max test pressure (Pe)
- 22 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Contact load
- AC-1 16 A/400 V; AC-15 10 A/400 V; DC-13 12 W/220 V
- Connection
- G 1/2 male (ISO 228-1)
- Enclosure
- IP30 (IP55 with enclosure 060-033066/062866)
- Ambient temperature
- -40 to +65 °C (80 °C max 120 min)
- Net weight
- approx. 0.3 kg
- Vibration
- 0–1000 Hz, 4 g
- Product group
- Switches and thermostats
- Max. test pressure
- 319.0 psig
- Max. test pressure Pe
- 22.0 bar
- Max. working pressure
- 17.0 bar
- Approval
- CCC; CE; CMIM; EAC; LLC CDC EURO-TYSK; LVD; RINA; RMRS; RoHS China; c UL us UL353, CS C22.2; c UL us UL873, CS C22.2
- UL approval file name
- E31024; MH27572
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- EAN
- 5702428365345
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Contact function
- SPDT
- Contact rating
- 120Vac,16FLA,96LRA,3APilotDuty; 16 A resistive, single phase; 240 V AC, 8 FLA, 48 LRA; 240V dc,12W pilot duty(0.05 A); 8 A resistive, single phase
- Differential
- 0.70 bar to 4.00 bar
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- In scope of WEEE
- Yes
- Pressure connection size
- 1/2
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- ISO 228-1 (G 1/2 male)
- Pressure Rating
- max test 22 bar
- Temperature Range
- -40 to +65 °C (80 °C max 120 min)
- IP Rating
- IP30 (IP55 with enclosure 060-033066/062866)
- HS Code
- 9026.20
Compatibility & Fitment
Single-pressure switch for monitoring/limiting of non-aggressive media. SPDT contact wired NO or NC, automatic reset. IP30 as supplied; IP55 with enclosure 060-033066/062866. Higher range than KP35; verify set point and differential before ordering.
