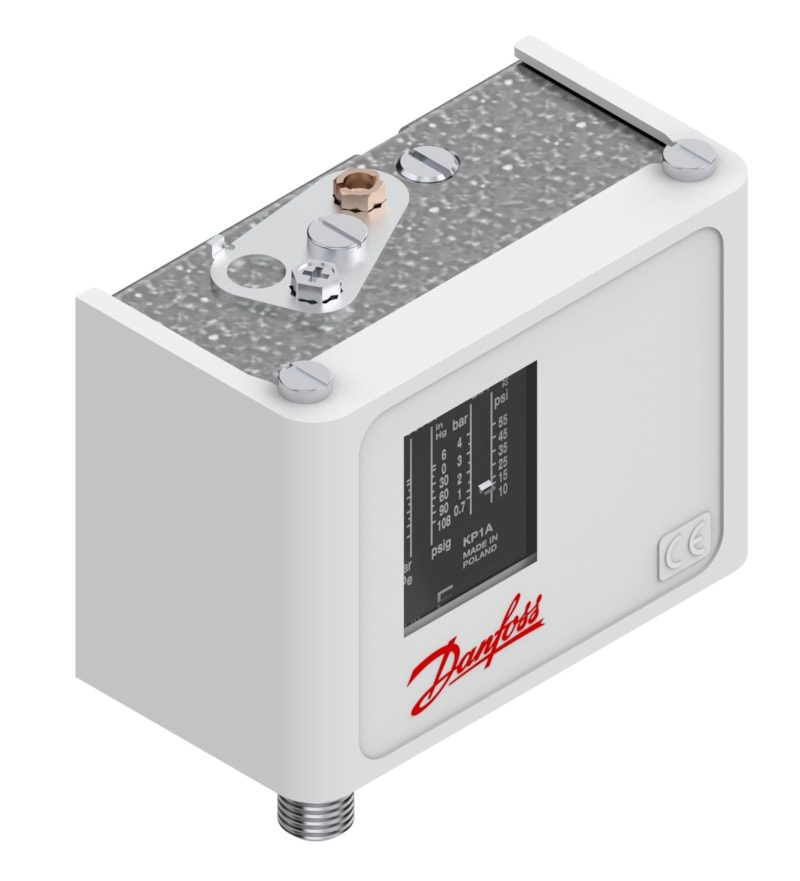

Danfoss KP1A pressure switch, -0.2 to 7.5 bar, auto reset, SPDT, M10 x 0.75 male
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP1A single (low) pressure switch, code 060-116266. Regulating range -0.2 to 7.5 bar, differential range 0.7-4 bar, automatic reset, SPDT snap-action contact. M10 x 0.75 (ISO 261) male pressure connection, IP30 enclosure, ambient -25 to +65 °C, max test pressure 20 bar. The KP1A uses a cold-forming-steel bellows element instead of the stainless-steel bellows of the standard KP1, for low-suction-pressure control and compressor start-stop in refrigeration and air-conditioning systems.
Technical Specifications
- Type
- KP1A single (low) pressure switch
- Code number
- 060-116266
- Regulating range
- -0.2 to 7.5 bar
- Differential range
- 0.7-4 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Contact load
- AC-1 16 A/400 V; AC-15 10 A/400 V; AC-3 16 A/400 V; DC-13 12 W/220 V; LR 112 A/400 V
- Connection
- M10 x 0.75 (ISO 261), male
- Max test pressure
- 20 bar
- Enclosure
- IP30
- Ambient temperature
- -25 to +65 °C (80 °C max 120 min)
- Bellows
- cold-forming steel (1.0338, EN 10139)
- Net weight
- 0.287 kg (gross 0.322 kg)
- Product group
- Switches and thermostats
- Max. test pressure
- 290.0 psig
- Max. test pressure Pe
- 20.0 bar
- Max. working pressure
- 17.0 bar
- Refrigerants
- R113; R1233zd(E); R1234yf; R1234yz; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454C; R455A; R507A; R513A; R515B; R717
- Lubricants compatibility
- Oilfree applications
- Fluid Group
- 1
- PED category
- IV
- Approval
- BV; CCC; CE; CMIM; DNV; EAC; GL; LLC CDC EURO-TYSK; LR; LVD; PED; RINA; RMRS; RoHS China; c UL us UL873, CS C22.2
- UL approval file name
- E31024
- UL approved refrigerants
- R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A; R515B; R717
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- EAN
- 5702428015981
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Application note
- Not applicable for liquid line
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
- Differential
- 0.70 bar to 4.00 bar
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
Standards & Compliance
- Material
- Steel/zinc-plated housing; cold-forming-steel bellows element
- Thread Standard
- M10 x 0.75 (ISO 261) male connection
- Pressure Rating
- max test 20 bar
- Temperature Range
- -25 to +65 °C (80 °C max 120 min)
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Refrigeration/AC low-pressure (LP) control and compressor start-stop; automatic reset. The 'A' variant has a cold-forming-steel bellows and an M10 x 0.75 male connection — distinct from the stainless-bellows, 1/4 in flare KP1 (060-509466). Confirm the connection thread before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss KP5A pressure switch, 8-32 bar, auto reset, SPDT, M10 x 0.75 male
060-123066
Danfoss
Danfoss KP6W pressure switch, 8-42 bar, double-bellows fail-safe, auto reset, SPDT, 1/4 in flare
060-519066
Danfoss
Danfoss EVR 25 Solenoid Valve 1-1/8 in ODF Solder NC Refrigeration
032L2206
Danfoss

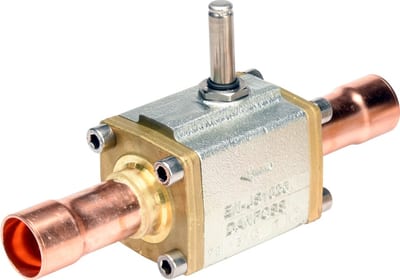

Danfoss EVR 32 Solenoid Valve 1-5/8 in ODF Solder NC Refrigeration
