Danfoss KP15 dual-pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto reset, SPDT
Pricing
Request a quote
We reply within 24 hours
Product Description

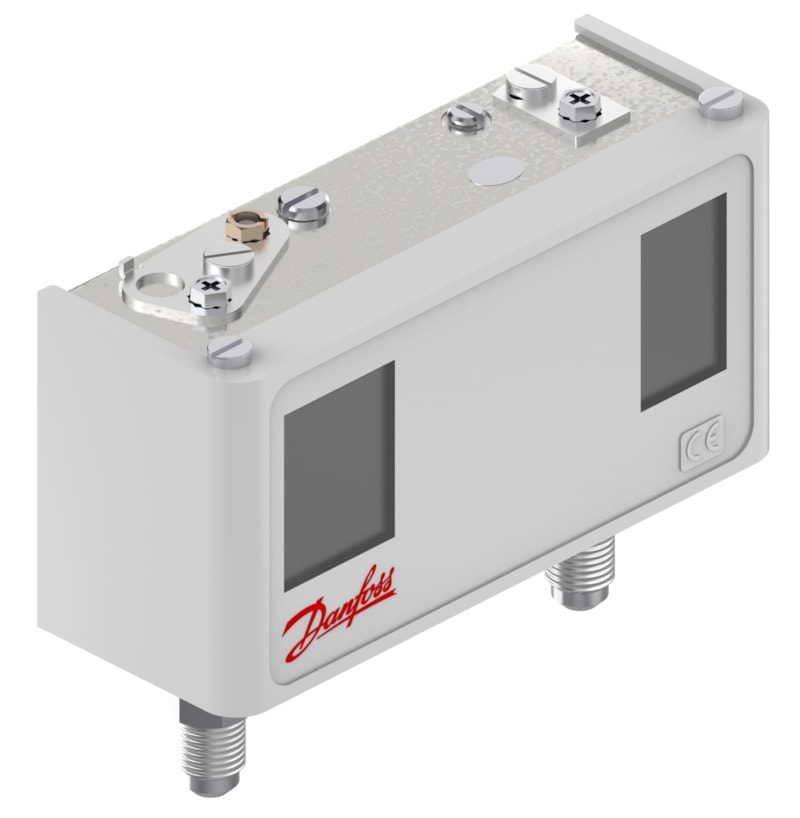

Danfoss KP15 dual (combined low- and high-) pressure switch, code 060-124166. LP regulating range -0.2 to 7.5 bar (differential 0.7-4 bar); HP regulating range 8 to 32 bar (differential 4 bar). Automatic reset on both sides, SPDT snap-action contact common to both pressure stages (SPDT + LP). 1/4 in flare (male) connection, IP44 enclosure, ambient -40 to +65 °C; max test pressure 20 bar on the LP side and 35 bar on the HP side. Combines low-suction-pressure and high-discharge-pressure protection of a refrigeration or air-conditioning compressor in a single unit.
Technical Specifications
- Type
- KP15 dual (LP + HP) pressure switch
- Code number
- 060-124166
- LP regulating range
- -0.2 to 7.5 bar (differential 0.7-4 bar)
- HP regulating range
- 8 to 32 bar (differential 4 bar)
- Reset
- automatic (both LP and HP)
- Contact system
- SPDT (single-pole double-throw), common to LP and HP
- Contact load
- AC-1 16 A/400 V; AC-15 10 A/400 V; AC-3 16 A/400 V; DC-13 12 W/220 V; LR 112 A/400 V
- Connection
- 1/4 in flare, male
- Max test pressure
- 20 bar (LP) / 35 bar (HP)
- Enclosure
- IP44
- Ambient temperature
- -40 to +65 °C
- Net weight
- 0.466 kg (gross 0.51 kg)
- Product group
- Switches and thermostats
- Max.test press.left side
- 20 bar
- Max.test press.right side
- 35 bar
- MWP left side Pe
- 17.0 bar
- MWP right side Pe
- 35.0 bar
- Refrigerants
- R113; R1233zd(E); R1234yf; R1234yz; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454C; R455A; R507A; R513A; R515B
- Lubricants compatibility
- Oilfree applications
- Approval
- BV; CCC; CE; CMIM; DNV; EAC; GL; LLC CDC EURO-TYSK; LR; LVD; RINA; RMRS; RoHS China; c UL us UL873, CS C22.2
- UL approval file name
- E31024
- UL approved refrigerants
- R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A; R515B
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- EAN
- 5702422002512
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Application note
- Not applicable for liquid line
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
- Differential left side
- 0.70 bar to 4.00 bar
- Differential right side
- 4.0 bar
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- Identical product
- 060-514166
Standards & Compliance
- Material
- Steel/zinc-plated housing; two bellows pressure elements
- Thread Standard
- 1/4 in flare (SAE 45°) connection
- Pressure Rating
- max test 20 bar (LP) / 35 bar (HP)
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP44
- HS Code
- 9026.20
Compatibility & Fitment
Refrigeration/AC combined LP + HP protection in a single switch; automatic reset on both sides. Distinct from the single-pressure KP1/KP2 (low only) and KP5/KP7B (high only) — this unit carries both stages. Verify LP and HP set points before ordering.
