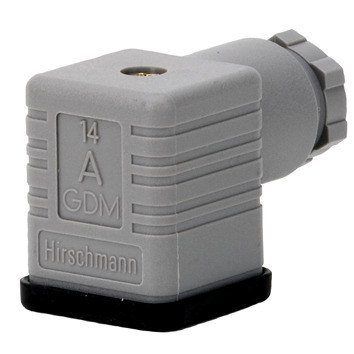

Danfoss DIN 43650 Form A cable plug, IP65, Pg 11, for 018F/018Z/042N Type B coils
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss 042N0156 cable plug (DIN EN 175301-803 Form A) for clip-on solenoid coils of the 018F, 018Z and 042N "Type B" range. 2 + PE contacts, 250 V AC/DC, IP65, Pg 11 cable gland, NBR profile gasket. Ordered separately from the coil and valve body. Catalogue multi-pack of 100 pcs. Danfoss lists 042N1256 as the current replacement.
Technical Specifications
- Type
- DIN EN 175301-803 Form A cable plug
- Fits coils
- 018F / 018Z / 042N Type B (clip-on)
- Contacts
- 2 + PE
- Voltage
- up to 250 V AC/DC
- Enclosure
- IP65
- Cable gland
- Pg 11
- Body
- PA6 + 30% glass fibre
- Contacts
- CuZn, Cu/Sn plated
- Gasket
- NBR, profiled
- Terminal block
- PA6 + 30% glass fibre
- LED/surge suppression
- none
- Packing
- multi-pack (100 pcs)
- Note
- superseded by 042N1256 (IP67)
- Code number
- 042N0156
- Product group
- Solenoid coil accessories
- Type designation
- Cable plug
- Ambient temperature range
- -40 °C to 80 °C
- Approval
- CE
- CE mark
- Yes
- REACH candidate-list substances
- No
- Net weight
- 0.034 kg
- EAN
- 5702423012183
- Body type
- Opaque
- Cable diameter
- 6.0 mm to 9.0 mm
- Cable holder material
- PA6
- Cable properties
- Ø4.5 MM - Ø11 MM
- Colour
- Grey
- Conductor size, max.
- 1.5 mm²
- Contact material
- CuZn (Cu/Sn plated)
- Contact resistance max.
- 4 mOhm
- Electrical connection form
- Form A
- Electrical connection size
- Pg 11
- Electrical connection standard
- DIN EN 175301-803A
- Enclosure rating IP
- IP65
- Gasket material
- NBR
- Gasket Type
- Profiled
- Operating current max.
- 16.00 A
- Plug type
- GDM 2011 J
- Supply voltage [V] AC
- 250 V
- Supply voltage [V] DC
- 250.00 V
Standards & Compliance
- Material
- PA6 + 30% GF body/terminal block; CuZn (Cu/Sn-plated) contacts; NBR gasket
- IP Rating
- IP65
- HS Code
- 8536.69
Compatibility & Fitment
DIN EN 175301-803 Form A cable plug for the clip-on "Type B" coil range (018F / 018Z / 042N). Pg 11 gland; wire to 2 + PE; fit the NBR gasket to reach IP65. Danfoss recommends 042N1256 (IP67) as the current replacement.
