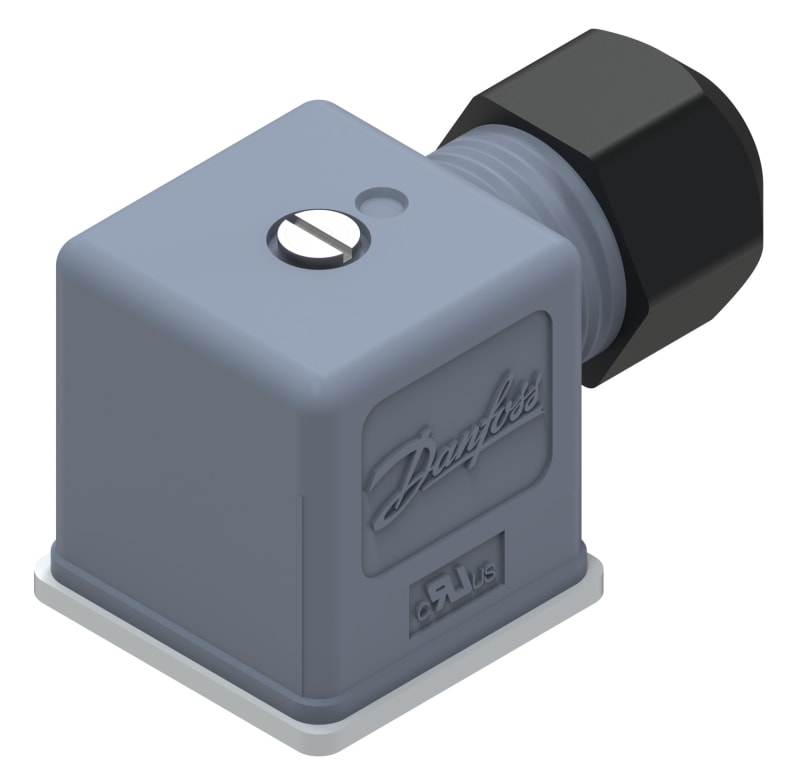

Danfoss DIN 43650 Form A cable plug, IP67, for 018F/018Z/042N Type B coils

Danfoss 042N1256 cable plug (DIN 43650 Form A / EN 175301-803) for clip-on solenoid coils of the 018F, 018Z and 042N "Type B" range. 2 + PE contacts, 250 V AC/DC, IP67 with fitted gasket. Screw-clamp terminals, cable diameter 4–9 mm. Ordered separately from the coil and valve body. Catalogue multi-pack of 100 pcs.

Type

DIN 43650 Form A cable plug (EN 175301-803)

Fits coils

018F / 018Z / 042N Type B (clip-on)

Contacts

2 + PE

Voltage

up to 250 V AC/DC

Operating current

max 16 A

Enclosure

IP67 (with fitted gasket)

Cable diameter

4–9 mm

Ambient

-40 to +125 °C

Gasket

silicone, flat

Cable holder

PA6 + 20% glass fibre

Terminal block

PA66 + 25% glass fibre

Body colour

grey

LED/surge suppression

none

Compliance

CE, EU RoHS, China RoHS

Packing

multi-pack (100 pcs)

Code number

042N1256

Product group

Solenoid coil accessories

Type designation

Cable plug

Ambient temperature range

-40 °C to 125 °C

Approval

CE

CE mark

Yes

REACH candidate-list substances

No

Net weight

25 g

EAN

5715162295557

Body type

Opaque

Cable holder material

PA6 + 20% GF

Colour

Grey

Conductor size, max.

1.5 mm²

Contact resistance max.

15 mOhm

Electrical connection form

Form A

Electrical connection standard

DIN EN 175301-803A

Enclosure rating IP

IP67

Gasket material

Silicone

Gasket Type

Flat

Operating current max.

16.00 A

Supply voltage [V] AC

250 V

Supply voltage [V] DC

250.00 V

Terminal block material

PA66 + 25%GF

EU RoHS compliance

Yes

Material

PA6 + 20% GF holder; PA66 + 25% GF terminal block; silicone gasket

Temperature Range

-40 to +125 °C

IP Rating

IP67 (with fitted gasket)

HS Code

8536.69
