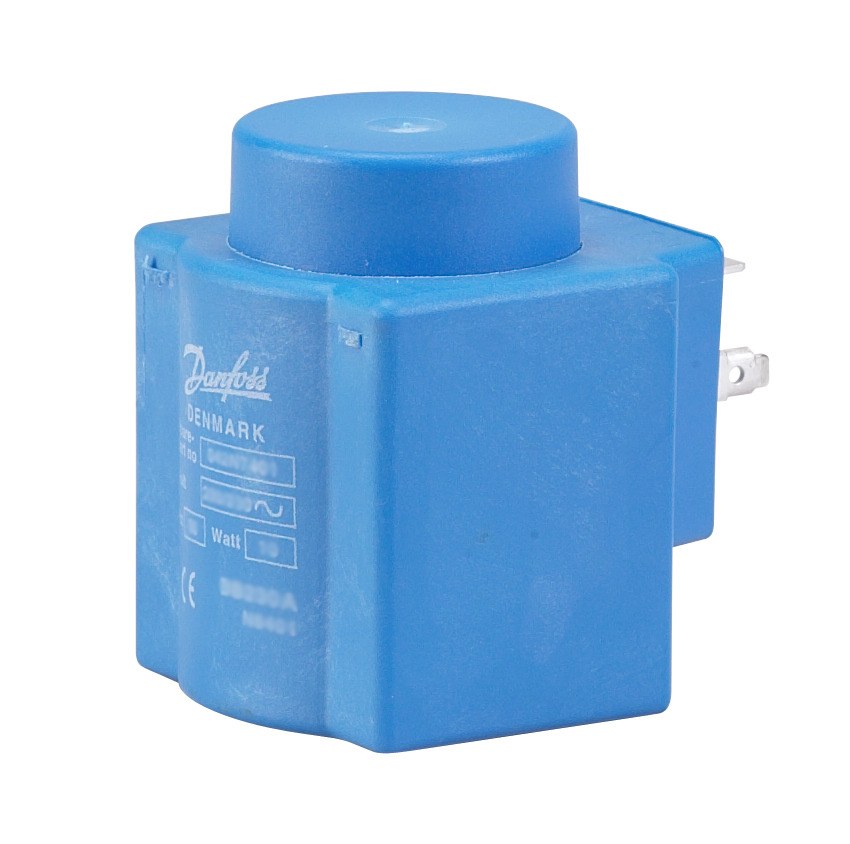

Danfoss BB230AS solenoid valve coil 230V AC clip-on DIN-spade
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BB230AS clip-on solenoid coil for EV-series valves, 230 V AC, 50 Hz, DIN-spade plug connection (DIN 43650A / ISO 4400), Class H insulation. Encapsulated coil for the EV210B/EV220B/EV250B valve range. Valve body and DIN plug ordered separately.
Technical Specifications
- Type
- BB230AS clip-on solenoid coil
- Supply
- 230 V AC, 50 Hz
- Power
- 11 W / 19 VA
- Connection
- DIN-spade plug, DIN 43650A / ISO 4400, 3 x 6.3 x 0.8 mm spades
- Enclosure
- IP00 (coil); IP65 with fitted DIN 43650A plug + gasket
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +80 °C
- Relative humidity
- 0-97 % RH, non-condensing
- Actuator size
- 13.5 mm, clip-on
- Duty
- continuous
- Design standard
- VDE 0580; EN 60730-1
- Weight
- 0.252 kg net / 0.274 kg gross
- Packing
- multi-pack (50 pcs)
- Fits
- EV210B, EV212B, EV220B, EV222B, EV224B, EV227B, EV250B, EV251B
- Code number
- 018F7351
- Product group
- Solenoid valves
- Type designation
- BB230AS
- Ambient temperature range
- -40 °C to 80 °C
- Approval
- CE; EAC; LLC CDC TYSK
- CE mark
- Yes
- REACH candidate-list substances
- No
- EAN
- 5702428026475
- Coil connection
- DIN Spade
- Coil design standard
- VDE 0580
- Coil fastening
- Clip-on
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Blue
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- DIN Spade
- Electrical connection size
- 6.3 mm x 0.8 mm
- Electrical connection standard
- EN175301-803
- Electrical connector
- 3 x spades
- Enclosure rating IP
- IP00
- EPD available
- Yes
- Frequency
- 50 Hz
- Identical product
- 018F8351
- In scope of WEEE
- Yes
- Manufacturer's name
- Danfoss
- Power consumption [W] 50Hz
- 11.0 W
- Voltage
- 230 V
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +80 °C
- IP Rating
- IP00 (coil); IP65 with fitted DIN 43650A plug + gasket
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. BB = DIN-spade plug connection (DIN 43650A / ISO 4400, 3 x 6.3 x 0.8 mm spades); fit a DIN 43650A plug + gasket to reach IP65 (plug ordered separately). Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
Product Documentation
More from Danfoss
Danfoss
Danfoss BB024AS solenoid valve coil 24V AC clip-on DIN-spade
018F7388
Danfoss
Danfoss BB024DS solenoid valve coil 24V DC clip-on DIN-spade
018F7397
Danfoss
Danfoss DIN 43650 Form A cable plug, IP67, for 018F/018Z/042N Type B coils
042N1256
Danfoss
Danfoss DIN 43650 Form A cable plug, IP65, Pg 11, for 018F/018Z/042N Type B coils
042N0156
Danfoss
Danfoss DIN 43650 Form A cable plug, IP65, for 018F/018Z/042N Type B coils (30-Pack)
042N0154
Danfoss

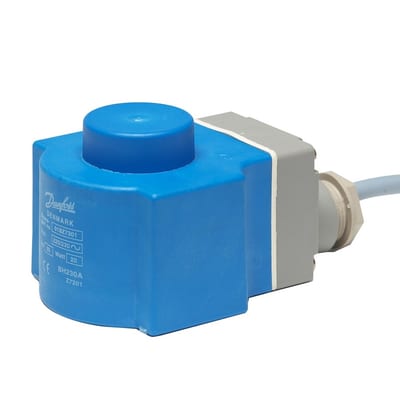

Danfoss BN024AS solenoid valve coil 24V AC 50Hz terminal box IP67
