WAGO
Relay module, Nominal input voltage: 24 V AC/DC, 1 changeover contact, Module width: 6 mm
Part number857-354EAN / GTIN4055143122061HS code8536.49
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 857-354 Manufacturer description: Relay module; Nominal input voltage: 24 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm. Relay Module;Nominal input voltage: 24 V AC/DC;1 skiftekontakt.
Technical Specifications
- Manufacturer part number (MPN)
- 857-354
- EAN / GTIN
- 4055143122061
- Sales unit
- pcs
- Note
- To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- Rated Voltage
- 300 V
- Rated impulse withstand voltage
- 4 kV
- Type of circuits
- Mains circuits
- Overvoltage category
- III
- Pollution degree
- 2
- Dielectric strength (control/load circuit) (AC, 1 min)
- 3.51 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Insulation type (control/load circuit)
- Reinforced insulation (safe isolation)
- Insulation type (between adjacent devices of the same type)
- Double insulation (safe isolation)
- Insulation type (to adjacent devices of different types)
- Basic insulation
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.34 … 1.5 mm² / 22 … 16 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 6 mm / 0.236 inches
- Height
- 94 mm / 3.701 inches
- Depth from upper-edge of DIN-rail
- 81 mm / 3.189 inches
- Mounting type
- DIN-35 rail
- Mounting position
- Horizontal (standing/lying); vertical
- Color
- gray
- Insulation material (main housing)
- Polyamide (PA66)
- Material group
- I
- Flammability class per UL94
- V0
- Fire load
- 0.437 MJ
- Weight
- 30.9 g
- Ambient temperature (operation at UN)
- -40 … +60 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 30 K)
- Relative humidity
- 5 … 85 % (no condensation permissible)
- Operating altitude (max.)
- 2000 m
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508 | ATEX | IECEx
- WAGO Basic Relay
- 857-152
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 25 (1) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 1303-86-2 | 7439-92-1 | 79-94-7
- REACH Candidate Strip Substance
- 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | Diboron trioxide | Lead
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Austria)
- 1d57e8bb-d2c8-4bbb-8127-3643dd88a6f8
- SCIP notification number (Belgium)
- 2911a0a7-bd93-47c9-9b55-6366486afecf
- SCIP notification number (Bulgaria)
- 0aa902f5-f537-4125-a0b2-2e0c80eb9a54
- SCIP notification number (Czech Republic)
- e99f0a97-d331-4447-b3f5-3ba7eb176298
- SCIP notification number (Denmark)
- 5089b3a6-0464-4cf8-a7e4-524370ed51e1
- SCIP notification number (Finland)
- 9d0eb0d1-335b-4fd7-89a3-fc2112beccad
- SCIP notification number (France)
- 8a209879-2cbe-4438-a8a4-d864505af01c
- SCIP notification number (Germany)
- 2505d55b-f52b-45fd-9b9c-34fd870b22eb
- SCIP notification number (Hungary)
- 443a377f-adfe-458c-acbf-10b9a603939a
- SCIP notification number (Italy)
- 050e301e-0f85-4e58-8c6a-218a0aaef024
- SCIP notification number (Netherlands)
- ffddfd60-d420-4cd4-8610-03de8056ee6b
- SCIP notification number (Poland)
- 0a301502-1133-4d6e-a50a-b508449592d4
- SCIP notification number (Romania)
- 03812214-78b7-48c6-92d4-aa6bd90d9367
- SCIP notification number (Sweden)
- 3f803bb3-8f2d-487d-a36f-3df00d456667
- MPN
- 857-354
- Type of electric connection
- Spring clamp connection
- With detachable clamps
- No
- Nominal current
- 6 A
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC/DC
- Drive, polarization
- Polarity free
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 1
- With forced-guided contacts
- No
- Type of switch contact
- Single contact
- Complete with socket
- Yes
- With LED indication
- Yes
- Material of contact surface
- Tin
- Degree of protection (IP)
- IP20
- Depth
- 81 mm
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4055143122061
- SAP 1200793838
- Code 83958750
Product Documentation
Document preview: Relay module, Nominal input voltage: 24 V AC/DC, 1 changeover contact, Module width: 6 mm (857-354) — Specification sheet
More from WAGO
WAGO
KBL3M 5X1,5 PLUG/Plinth
771-9995/006-301
WAGO

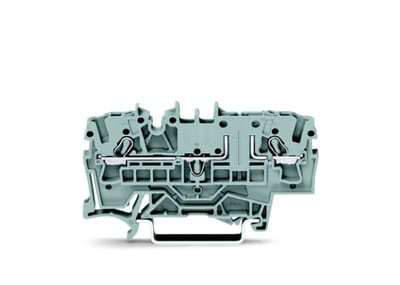

WAGO TOPJOB S 2-Conductor Carrier Terminal Block 2.5 mm² for DIN Rail 35x15 and 35x7.5, Grey
2002-1661
WAGO
WAGO Solid-State Relay Module 24 VDC Input, 0-24 VDC Output, 3 A
857-724
WAGO

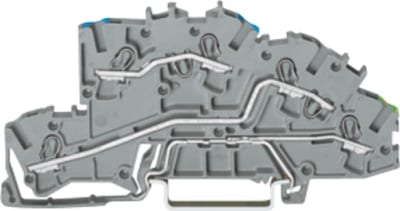

WAGO TOPJOB S Three-Level Installation Terminal Block N/L/PE, 2.5 mm², Grey
2003-7646
WAGO
Electronic circuit breaker, 8-Channel, 24 VDC input voltage, adjustable 2 … 10 A, 10,00 mm²
787-1668
WAGO
Cable 2M 3X15MM Black
771-9993/006-201
WAGO

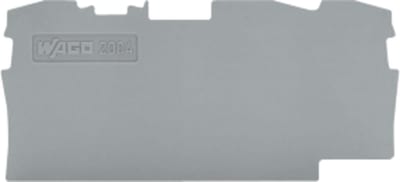

End and intermediate plate; 1 mm thick; gray (2004-1391)
WAGO

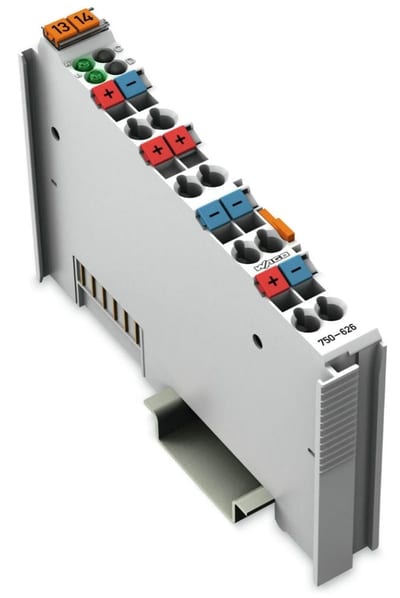

Supply Filter; 24 VDC
