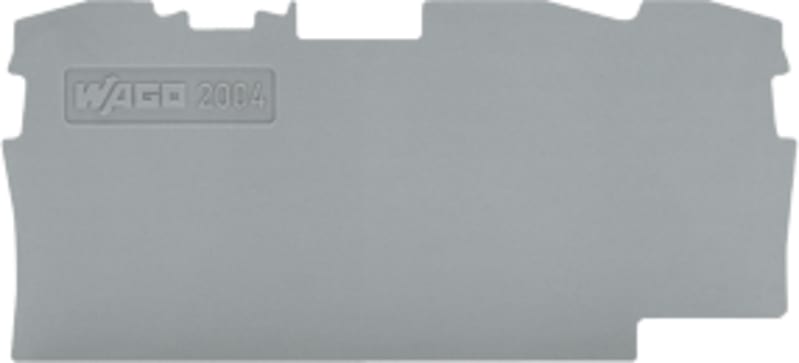

End and intermediate plate; 1 mm thick; gray (2004-1391)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2004-1391 Manufacturer description: End and intermediate plate; 1 mm thick; gray. End Plate 3 conductor, Grey, 1 mm thick.
Technical Specifications
- Manufacturer part number (MPN)
- 2004-1391
- EAN / GTIN
- 4044918161787
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Width
- 1 mm / 0.039 inches
- Height
- 65 mm / 2.56 inches
- Depth
- 29.7 mm / 1.169 inches
- Mounting type
- snap-on type
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.062 MJ
- Weight
- 2.1 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 100 (25) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85389099990
- UNSPSC
- 39,121,702
- eCl@ss 10.0
- 27-14-11-33
- eCl@ss 9.0
- 27-14-11-33
- ETIM 9.0
- EC000886
- ETIM 10.0
- EC000886
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 2004-1391
- Colour
- Grey
- Thickness
- 1 mm
- Snap in
- Yes
- End plate model
- Yes
- Partition model
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4044918161787
- SAP 1000068551
- Code 8921042
Product Documentation
More from WAGO
WAGO
Supply Filter; 24 VDC
750-626
WAGO

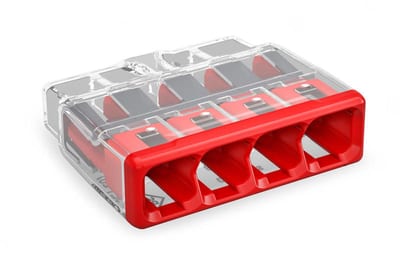

Innpluglemme 4X4MM² in blister
2773-404/995-015
WAGO

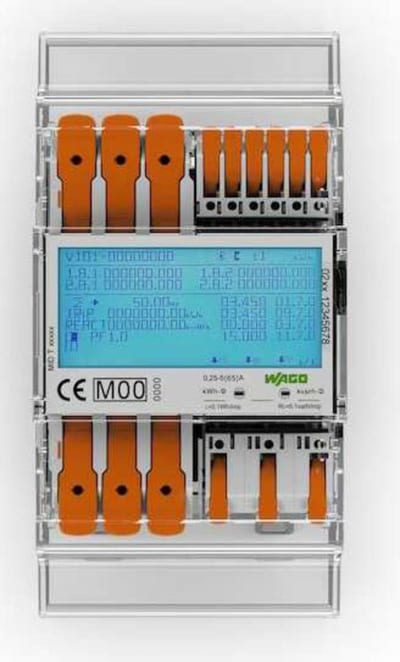

Energy meter (MID), 65A, 3X230/400V, 50Hz, 2 x S0 interface, 4PS
879-3020
WAGO

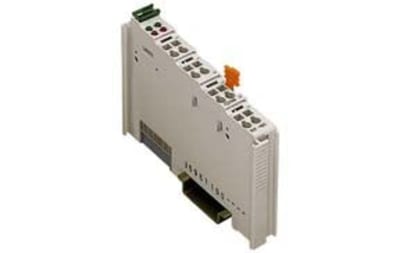

2-Channel analog input; 4 … 20 mA; Single-ended
750-466
WAGO

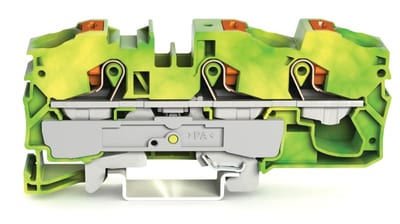

3-Conductor ground terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2216-1307)
WAGO

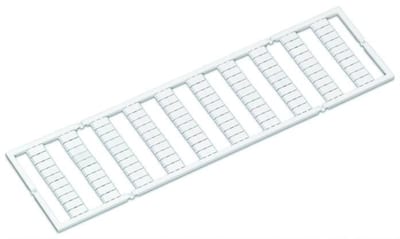

WMB marking card, 24 V (100X), stretchable 5 - 5.2 mm
794-508
WAGO

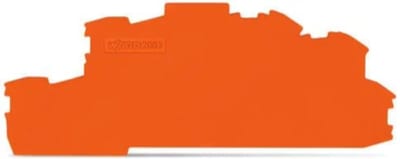

End and intermediate plate; 0.8 mm thick; orange (2003-6692)
WAGO

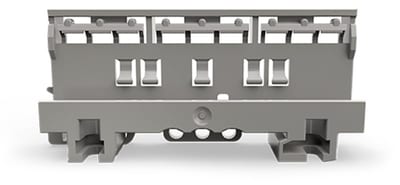

Mounting carrier, 221 Series - 6 mm², for DIN-35 rail mounting/screw mounting
