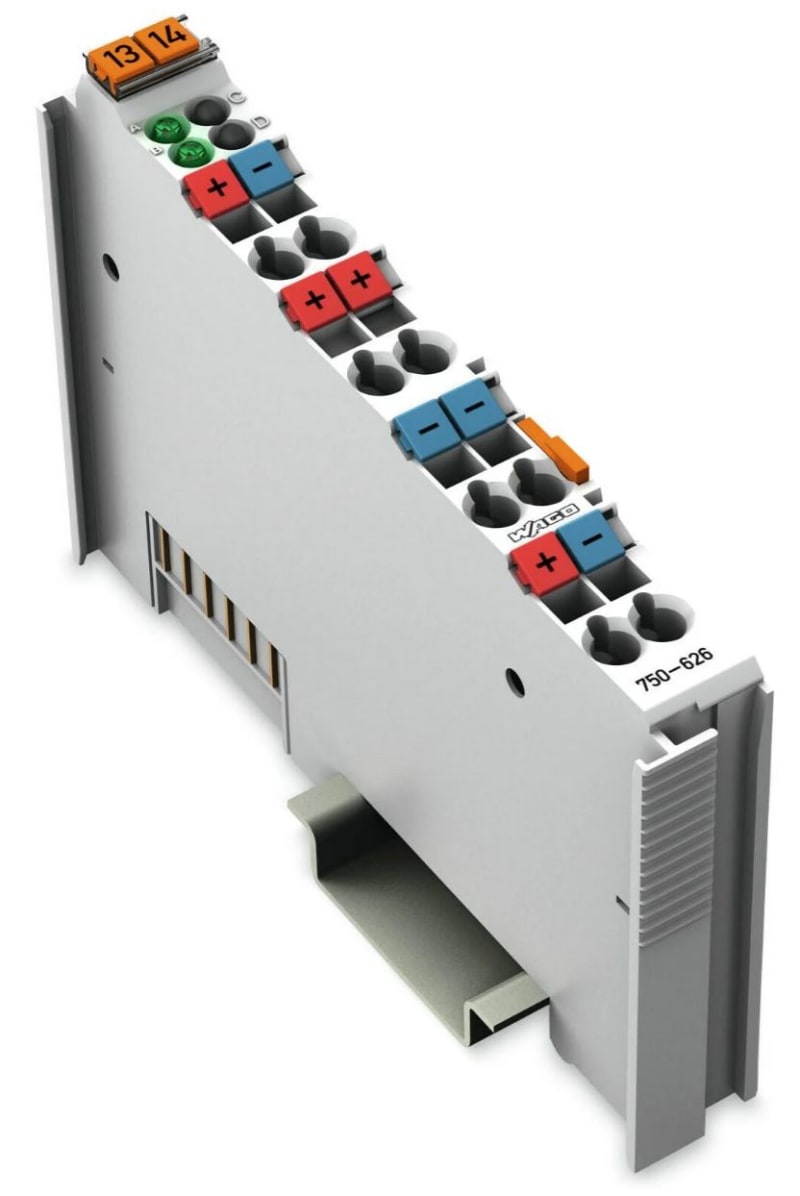

Supply Filter; 24 VDC

WAGO 750-626 Manufacturer description: Supply Filter; 24 VDC. WAGO 750-626.

Manufacturer part number (MPN)

750-626

EAN / GTIN

4045454393977

Sales unit

pcs

Signal type

Voltage

Signal type (voltage)

24 VDC

Supply voltage (system)

24 VDC (-25 … +30 %); via wiring interface (CAGE CLAMP® connection); External fuse required: 2 A slow-blow

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts (supply via CAGE CLAMP® connection; distribution via spring contact); External fuse required: 10 A slow-blow

Current via system voltage (max.)

1.5 A (1 A up to hardware version 03)

Current carrying capacity (power jumper contacts)

10 A

Number of outgoing power jumper contacts

2

Use

Marine-certified operation in conjunction with the Ex i supply module and the use of 750 Series PROFIsafe Modules

Indicators

LED (A

B) green

operating voltage status: system, power jumper contacts

Connectable conductor materials

Copper

Connection type

System/field supply

Solid conductor

0.08 … 2.5 mm² / 28 … 14 AWG

Fine-stranded conductor

0.08 … 2.5 mm² / 28 … 14 AWG

Strip length

8 … 9 mm / 0.31 … 0.35 inches

Connection technology

field supply: 4 x CAGE CLAMP®

Connection technology

system supply: 4 x CAGE CLAMP®

Width

12 mm / 0.472 inches

Height

100 mm / 3.937 inches

Depth

69.8 mm / 2.748 inches

Depth from upper-edge of DIN-rail

62.6 mm / 2.465 inches

Mounting type

DIN-35 rail

Pluggable connector

fixed

Color

light gray

Housing material

Polycarbonate; polyamide 6.6

Fire load

1.261 MJ

Weight

49.6 g

Conformity marking

CE

Ambient temperature (operation)

0 … +55 °C

Ambient temperature (storage)

-40 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

0 … 2000 m / 0 … 6562 ft

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)

95 %

Vibration resistance

4g per IEC 60068-2-6

Shock resistance

15g per IEC 60068-2-27

EMC immunity to interference

per EN 61000-6-2, marine applications

EMC emission of interference

per EN 61000-6-4, marine applications

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

Permissible H2S contaminant concentration at a relative humidity 75 %

10 ppm

Permissible SO2 contaminant concentration at a relative humidity 75 %

25 ppm

Product Group

15 (I/O System)

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

DE

Customs tariff number

85389091890

UNSPSC

39,121,610

eCl@ss 10.0

27-24-26-10

eCl@ss 9.0

27-24-26-10

ETIM 9.0

EC001600

ETIM 10.0

EC001600

ECCN

NO US CLASSIFICATION

CAS-No.

1303-86-2 | 1317-36-8 | 7439-92-1

REACH Candidate Strip Substance

Diboron trioxide | Lead | Lead monoxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

7(a) | 7(c)-I

SCIP notification number (Austria)

67c0c0b1-7384-4b47-a2e5-4c27138899d5

SCIP notification number (Belgium)

df0f77b2-d61d-4ad6-a3b3-f7711ef98d42

SCIP notification number (Bulgaria)

2d06e6ca-d722-4510-b42c-65e6403fa9d5

SCIP notification number (Czech Republic)

a68e4cdd-5f5a-418b-8e5e-e803e77fca65

SCIP notification number (Denmark)

64efa0c4-e047-4e42-be2c-7ac2c5682a5f

SCIP notification number (Finland)

1d58eed1-1e70-4a5c-b275-94ef51c4b0e6

SCIP notification number (France)

4e0a8b03-54ed-4246-ae5c-7b0f6059a324

SCIP notification number (Germany)

44af5fb9-ca85-4975-b391-63f66ebec7da

SCIP notification number (Hungary)

96033c53-5b69-4a96-822d-d0cd90af0ac2

SCIP notification number (Italy)

cf47825e-5dc0-4974-bde0-53ea3b2effe4

SCIP notification number (Netherlands)

aae1ec69-6acb-4163-9a02-4744f8d8f656

SCIP notification number (Poland)

2e19eca4-0e0c-4291-a245-0b850a9e3ac2

SCIP notification number (Romania)

4edd15ad-8a94-49aa-bbc0-cf5351cee8b9

SCIP notification number (Sweden)

caf61d73-0270-4183-8472-a7cf01e7c216

Certified for UL hazardous location division 1

Yes

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

With potential separation

No

With power supply module

No

HS Code

8537.10
