WAGO

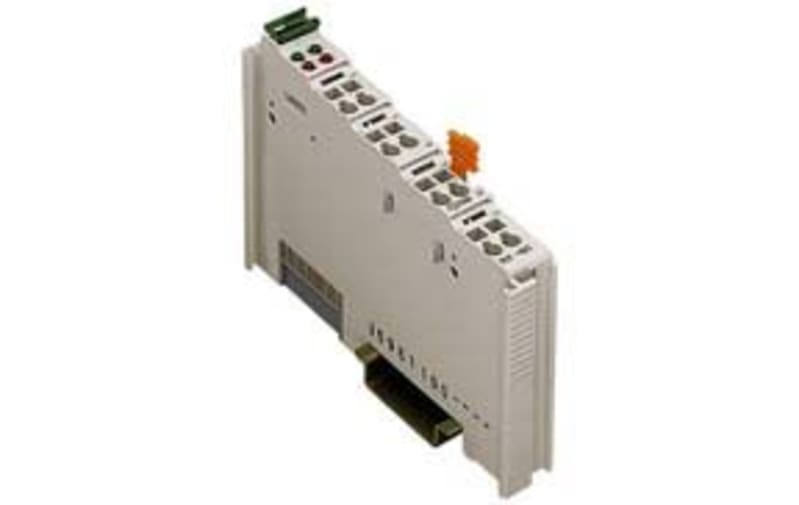

2-Channel analog input; 4 … 20 mA; Single-ended
Part number750-466EAN / GTIN4045454392949HS code8538.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 750-466 Manufacturer description: 2-channel analog input; 4 … 20 mA; Single-ended. 2AI;4-20 mA;Single-sided;light grey.
Technical Specifications
- Manufacturer part number (MPN)
- 750-466
- EAN / GTIN
- 4045454392949
- Sales unit
- pcs
- Number of analog inputs
- 2
- Total number of channels (module)
- 2
- Signal type
- Current
- Signal type (current)
- 4 … 20 mADC
- Sensor connection
- 2 x (2-wire, 3-wire)
- Input voltage (max.)
- 10 V
- Signal characteristics
- Single-ended
- Resolution [bit]
- 12 Bit
- Input resistance (max.)
- 220 Ω
- Data width
- 2 x 16-bit data; 2 x 8-bit control/status (optional)
- Conversion time (typ.)
- 2 ms
- Measurement error (reference temperature)
- 25 °C
- Measurement error, deviation (max.) from the upper-range value
- 0.2 %
- Temperature error (max.) of the upper-range value
- 0.01 %/K
- Supply voltage (system)
- 5 VDC; via data contacts
- Current consumption (system supply)
- 75 mA
- Supply voltage (field)
- 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
- Isolation
- 500 V system/field
- Indicators
- LED (A
- C) green
- Function AI 1, AI 2; LED (B
- D) red
- Error AI 1, AI 2
- Number of incoming power jumper contacts
- 2
- Number of outgoing power jumper contacts
- 2
- Connection technology
- I/O: 8 x CAGE CLAMP®
- Connectable conductor materials
- Copper
- Connection type
- Inputs/Outputs
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- Width
- 12 mm / 0.472 inches
- Height
- 100 mm / 3.937 inches
- Depth
- 69.8 mm / 2.748 inches
- Depth from upper-edge of DIN-rail
- 62.6 mm / 2.465 inches
- Mounting type
- DIN-35 rail
- Pluggable connector
- fixed
- Color
- light gray
- Housing material
- Polycarbonate; polyamide 6.6
- Fire load
- 0.945 MJ
- Weight
- 49.9 g
- Conformity marking
- CE
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Protection type
- IP20
- Pollution degree
- 2 per IEC 61131-2
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Mounting position
- Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
- Relative humidity (without condensation)
- 95 %
- Vibration resistance
- Per IEC 60068-2-6
- Shock resistance
- 15g per IEC 60068-2-27
- EMC immunity to interference
- per EN 61000-6-2
- EMC emission of interference
- per EN 61000-6-4
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Product Group
- 15 (I/O System)
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85437090990
- UNSPSC
- 32,101,502
- eCl@ss 10.0
- 27-24-26-01
- eCl@ss 9.0
- 27-24-26-01
- ETIM 9.0
- EC001596
- ETIM 10.0
- EC001596
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 1303-86-2 | 1317-36-8 | 7439-92-1
- REACH Candidate Strip Substance
- Diboron trioxide | Lead | Lead monoxide
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 7(c)-I | 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- 448233da-0cfd-4410-844a-035cbd6bd610
- SCIP notification number (Belgium)
- 52e127be-5791-47a6-8020-c23f994ec05c
- SCIP notification number (Bulgaria)
- dba44114-8852-4acc-986d-1d9ac0b8cba0
- SCIP notification number (Czech Republic)
- 2d537bdf-5163-4618-b110-c240649fc2a9
- SCIP notification number (Denmark)
- 34958418-b19d-459c-b740-b0a24747702d
- SCIP notification number (Finland)
- 50d90c88-4ea7-45f1-8e18-dd32e9f430e3
- SCIP notification number (France)
- a6fffb0c-ab8c-46bf-b023-6cdd572abf5c
- SCIP notification number (Germany)
- c7035a35-bcf1-4c22-9e63-e11c122a59c5
- SCIP notification number (Hungary)
- ce286eb7-13c0-4297-96bf-a559348e7617
- SCIP notification number (Italy)
- aa9f9b98-e9b1-4a80-bd4e-e3ca07d666e8
- SCIP notification number (Netherlands)
- b981cfa1-6233-4bb9-bc02-5b1e09349429
- SCIP notification number (Poland)
- f7a0a260-a9a0-4a39-9b79-076da4f45a37
- SCIP notification number (Romania)
- d2a44cb0-eb95-44ae-a241-b4fe991432cc
- SCIP notification number (Sweden)
- 92b73b78-80cf-4254-91ee-348468001171
- Power consumption
- 1 W
- Certified for UL hazardous location division 1
- Yes
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- Yes
- Certified for UL hazardous location group B (hydrogen)
- Yes
- Certified for UL hazardous location group C (ethylene)
- Yes
- Certified for UL hazardous location group D (propane)
- Yes
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- Yes
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Input, current
- Yes
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- No
- Resolution of the analogue inputs
- 12 Bit
- Output, current
- No
- Output, voltage
- No
- Output signal configurable
- No
- Number of analogue inputs
- 2
- Analogue inputs configurable
- No
- Analogue outputs configurable
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4045454392949
- SAP 1000263239
- Code 81292648
Product Documentation
Document preview: 2-Channel analog input; 4 … 20 mA; Single-ended (750-466) — Specification sheet
