Relay module, Nominal input voltage: 24 VDC, 1 changeover contact, Limiting continuous current: 16 A
Pricing
Request a quote
We reply within 24 hours
Product Description

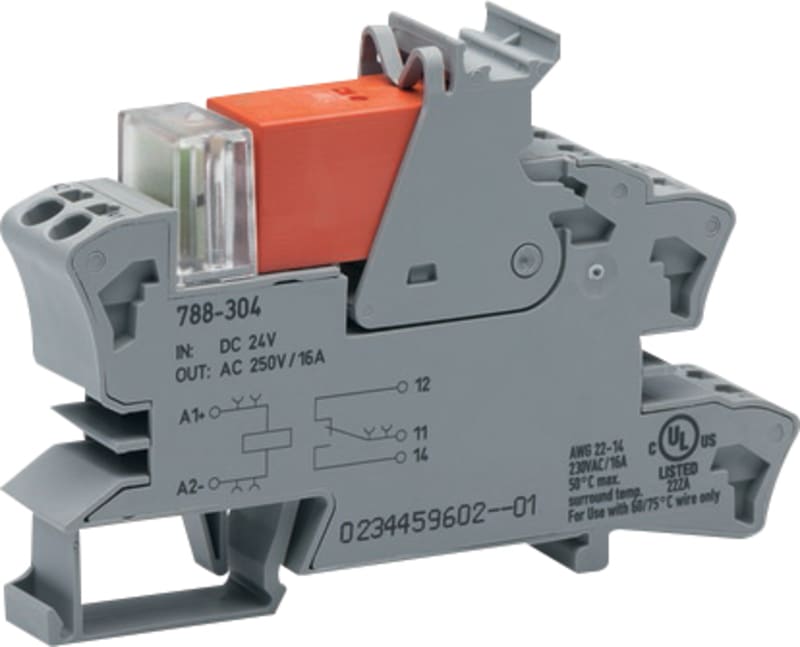

WAGO 788-304 Manufacturer description: Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 16 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray. Plug-in relay, 15 mm, 24 V DC, 1 C/O.
Technical Specifications
- Manufacturer part number (MPN)
- 788-304
- EAN / GTIN
- 4045454351991
- HS code
- 8536.90
- Sales unit
- pcs
- Note
- Reinforced insulation between coil and contacts | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- Rated Voltage
- 250 V
- Rated impulse withstand voltage
- 4 kV
- Pollution degree
- 3
- Dielectric strength (control/load circuit) (AC, 1 min)
- 5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 15 mm / 0.591 inches
- Height
- 86 mm / 3.386 inches
- Depth from upper-edge of DIN-rail
- 54 mm / 2.126 inches
- Mounting type
- DIN-35 rail
- Color
- gray
- Fire load
- 0.92 MJ
- Weight
- 45.9 g
- Ambient temperature (operation at UN)
- -40 … +70 °C
- Ambient temperature UL (operation at UN)
- -40 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 20 K)
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508 (max. 10 A)
- WAGO Basic Relay
- 788-154
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 20 (1) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Austria)
- 84ae7b9f-3fe5-4da9-9731-c89b39422f3e
- SCIP notification number (Belgium)
- 162bfd49-de13-43b9-abc4-68173c689386
- SCIP notification number (Bulgaria)
- 2a4fbf75-e73d-443c-b5b9-dffcf28501cd
- SCIP notification number (Czech Republic)
- cd025afe-2a02-4a21-bc80-bcaeb91ff082
- SCIP notification number (Denmark)
- ac5d1b6f-9680-4651-98af-86c04d78ab67
- SCIP notification number (Finland)
- 85fa947a-6a38-4d85-90dc-4c12aecd5137
- SCIP notification number (France)
- 5cf9e1db-eef0-4269-b4a6-7376973f581e
- SCIP notification number (Germany)
- cedcf22f-3718-4ebf-a376-4488406c01d6
- SCIP notification number (Hungary)
- f211f016-224b-4f18-9217-e87c0676401a
- SCIP notification number (Italy)
- 203e48c6-de1b-4349-b952-1c69055eee16
- SCIP notification number (Netherlands)
- 382a1d8e-79e5-4426-9fcd-4c35748754e4
- SCIP notification number (Poland)
- 9a8d598b-7e0b-43ea-b5a3-09a5a851620a
- SCIP notification number (Romania)
- 985e8d7f-acb8-4cf2-afc8-6b464f4db8e7
- SCIP notification number (Sweden)
- ca754066-af24-4b2e-9d81-e882de52b25c
- EAN
- 4055143184113
- MPN
- 788-304
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454351991
- SAP 1200653667
- Code 83096053
Product Documentation
More from WAGO
WAGO
WAGO 258-5005/000-005 SmartPrinter Thermal Transfer Ribbon Black 57mm x 74m
WAGO

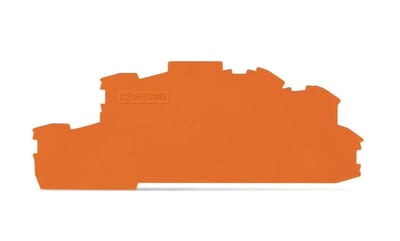

End and intermediate plate; 1 mm thick; only for use with fuse plugs; orange
