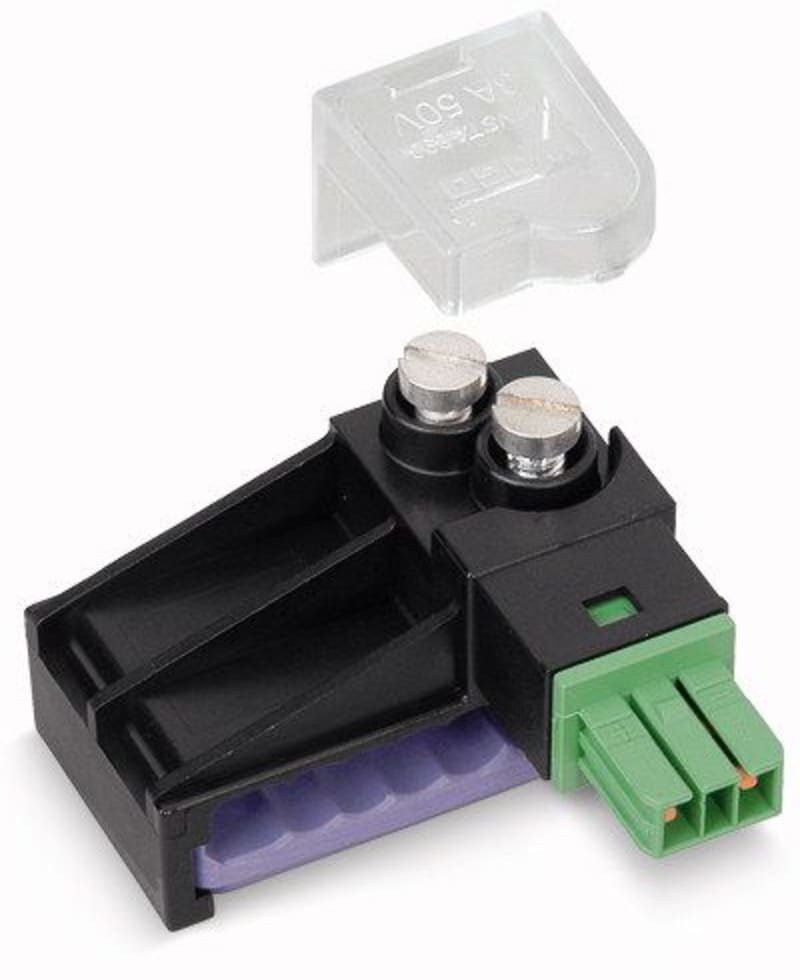

Tap-off module; for flat cable; 5 x 2.5 mm² + 2 x 1.5 mm²; 2-Pole; Cod. E; green
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 893-262 Manufacturer description: Tap-off module; for flat cable; 5 x 2.5 mm² + 2 x 1.5 mm²; 2-pole; Cod. E; green. Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 893-262
- EAN / GTIN
- 4045454267292
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Total number of potentials
- 2
- Width
- 39.4 mm / 1.551 inches
- Height
- 25 mm / 0.984 inches
- Depth
- 44 mm / 1.732 inches
- Technology
- KNX
- Use
- KNX
- Coding
- E
- Variable coding
- No
- Marking
- 1+ 2-
- Potential marking
- 1+ 2-
- Retention force of a plug-in connection
- When locked: > 80 N
- Number of mating cycles
- 200
- Protection type
- IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- Suitable
- for flat cable 5 x 2.5 mm² + 2 x 1.5 mm²
- Mismating protection
- Yes
- Color
- green
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Contact material
- Copper or copper alloy; surface-treated
- Contact Plating
- Tin
- Weight
- 19.6 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- CH
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-44-06-01
- eCl@ss 9.0
- 27-44-06-01
- ETIM 9.0
- EC002588
- ETIM 10.0
- EC002588
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Number of poles
- 2P
- MPN
- 893-262
- Model
- Tap branch
- Halogen free
- No
- Housing colour
- Black
- Type of locking
- None
- Rated current
- 3 A
- Rated voltage
- 50 V
- Length
- 44 mm
- Housing material
- Polyamide (PA)
- Mechanical coding
- Yes
- Degree of protection (IP)
- IP20
- Transparent
- No
- Pole codification
- 1+, 2-
- Colour coding/contact insert
- Green
- Connection round cable
- Screw connection
- Type of integrated switching
- None
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4045454267292
- SAP 1000094437
- Code 8587727
Product Documentation
