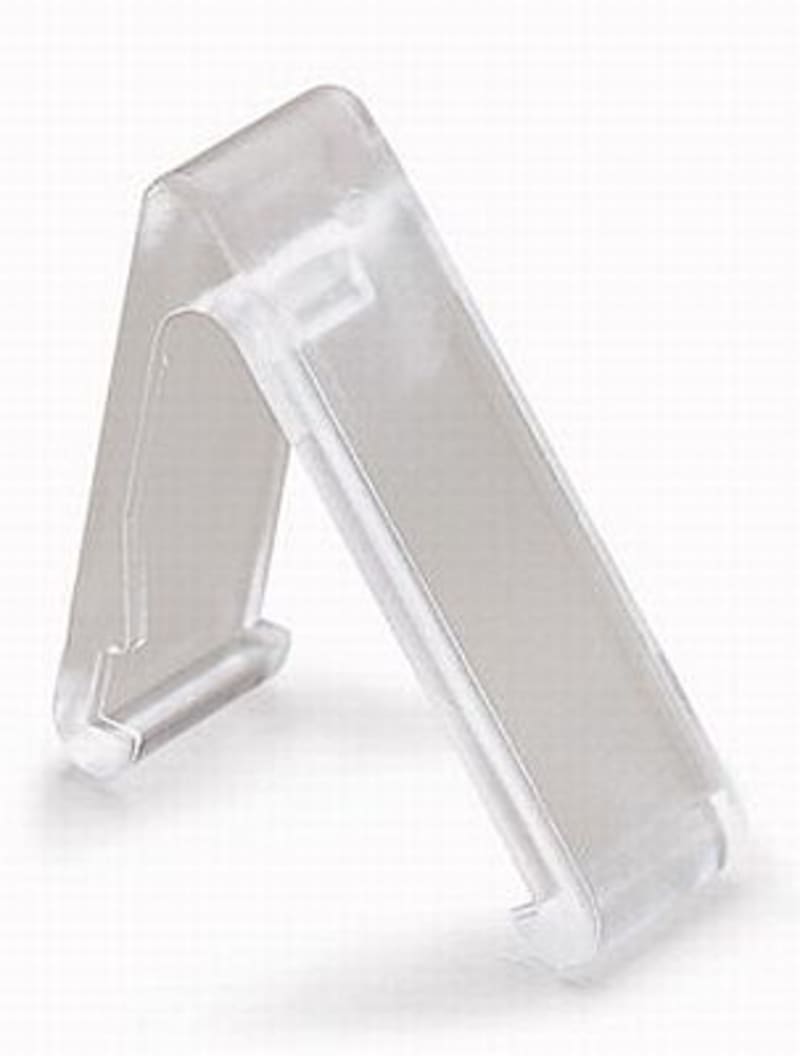

WAGO 282-884 Locking Cover, 4-Pole, Transparent Polycarbonate
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 282-884 is a transparent locking cover that mechanically secures multiple jumper bars on 4-pole rail-mounted terminal blocks. The polycarbonate housing is 31.2 mm wide, weighs 2.2 g and carries a UL94 V2 flammability rating with a continuous operating range of -60 to +105 degrees C. It is typically fitted to prevent unauthorised removal or accidental displacement of jumpers in industrial control and distribution assemblies.
Technical Specifications
- Manufacturer part number (MPN)
- 282-884
- EAN / GTIN
- 4017332283205
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 31.2 mm / 1.228 inches
- Color
- transparent
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Fire load
- 0.099 MJ
- Weight
- 2.2 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 1 (Rail Mounted Terminal Blocks)
- PU (SPU)
- 50 (10) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,703
- eCl@ss 10.0
- 27-14-11-92
- eCl@ss 9.0
- 27-14-11-92
- ETIM 9.0
- EC002848
- ETIM 10.0
- EC002848
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Number of poles
- 4P
- MPN
- 282-884
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4017332283205
- SAP 1200793837
- Code 83958749
Product Documentation
