Wago Innplugsklemme Blister
Pricing
Request a quote
We reply within 24 hours
Product Description

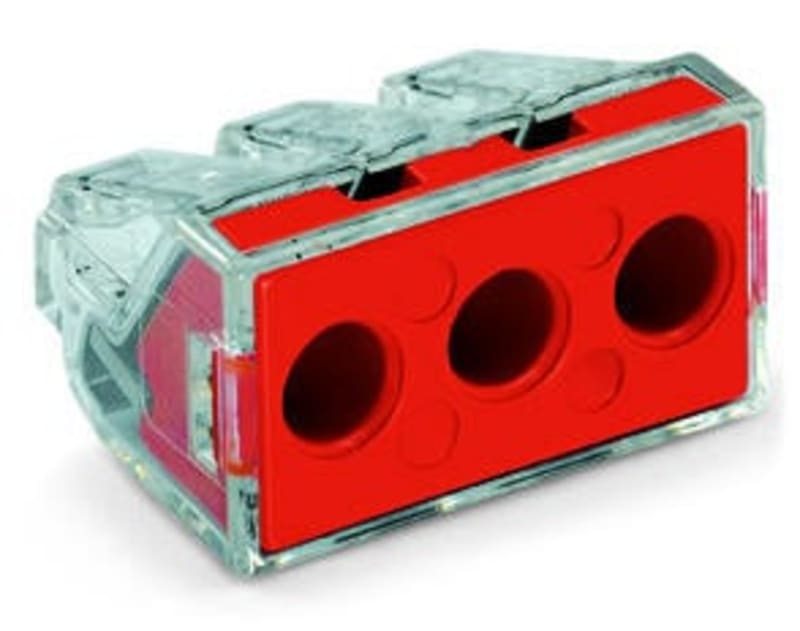

WAGO 773-173/995-005 PUSH WIRE®-kopling for distribution boxes; for solid and stranded conductors; max.. 6 mm²; 3-conductor;.
Technical Specifications
- Manufacturer part number (MPN)
- 773-173/995-005
- EAN / GTIN
- 4066966001655
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Clamping units
- 3
- Total number of potentials
- 1
- Width
- 25.6 mm / 1.008 inches
- Height
- 14.2 mm / 0.559 inches
- Depth
- 20.1 mm / 0.791 inches
- Color
- transparent
- Cover color
- red
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact Plating
- Tin
- Fire load
- 0.108 MJ
- Ambient temperature (operation)
- +60 °C
- Continuous operating temperature
- 105 °C
- PU (SPU)
- 500 (50) pcs
- Packaging type
- box
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4066966001655
- SAP 1200568902
- Code 82933644
Product Documentation
