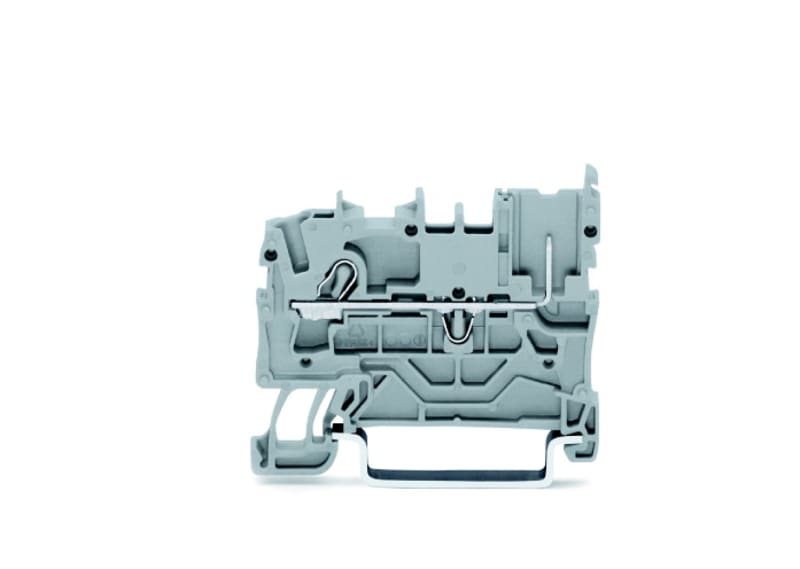

1-CONDUCTOR/1-PIN carrier terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5

WAGO 2022-1201 Manufacturer description: 1-conductor/1-pin carrier terminal block; 2.5 mm²; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray. X-com S DIN-rail terminal Grey.

Manufacturer part number (MPN)

2022-1201

EAN / GTIN

4045454732707

Sales unit

pcs

Package quantity

100 pcs

Clamping units

1

Female plug slots

1

Total number of potentials

1

Number of levels

1

Width

5.2 mm / 0.205 inches

Height

48.5 mm / 1.909 inches

Depth from upper-edge of DIN-rail

36.4 mm / 1.433 inches

Mounting type

DIN-35 rail

Marking level

Center/side marking

Color

gray

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.112 MJ

Weight

5 g

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

Product Group

18 (X-COM-System)

PU (SPU)

100 pcs

Packaging type

Box

Country of origin

CN

Customs tariff number

85366990990

UNSPSC

39,121,410

eCl@ss 10.0

27-14-11-20

eCl@ss 9.0

27-14-11-20

ETIM 9.0

EC000897

ETIM 10.0

EC000897

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Conductor cross-section

2.5 mm²

EAN

4050821145059

MPN

2022-1201

Connectable conductor cross section solid-core

0.75–4 mm²

Connectable conductor cross section multi-wired

0.25–2.5 mm²

Rated current In

24 A

Rated voltage

690 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Plug-in connection

Connection position

Atop

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

105 °C

Width/grid dimension

5.2 mm

Depth

36.4 mm

Length

48.5 mm

Explosion-tested version 'Ex e'

No

Closing plate required

Yes

Colour

Grey

Internally connected stages

No

HS Code

8536.69

• EAN 4045454732707
• SAP 1200547808
• Code 82874258
