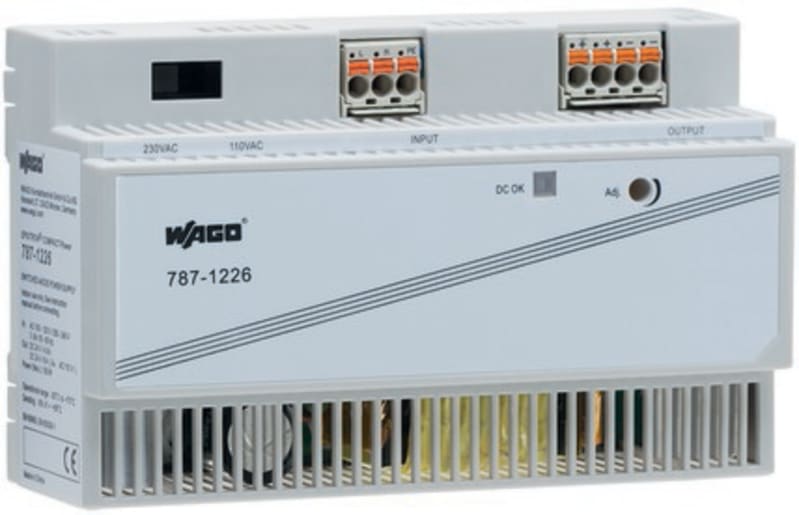

Switched-mode power supply; Compact; 1-Phase; 24 VDC output voltage; 6 A output current; DC-OK LED

WAGO 787-1226 Manufacturer description: Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 6 A output current; DC-OK LED. WAGO Power supply 230VAC/24VDC, 6A.

Manufacturer part number (MPN)

787-1226

EAN / GTIN

4055143415040

Sales unit

pcs

Isolation voltage (pri.-sec.)

4.242 kVDC

Protection class

I

Protection type

IP20; per EN 60529

Resistance to reverse feed

≤ 35 VDC

Pollution degree

2

Transient suppression (primary)

Varistor

Overvoltage protection; secondary

≤ 31 VDC (in the event of a fault)

Short-circuit-protected

Yes

Open-circuit-proof

Yes

Parallel operation

Yes

Series operation

Yes

MTBF

> 500,000 h (per IEC 61709)

Width

144 mm / 5.669 inches

Height

90 mm / 3.543 inches

Depth

56 mm / 2.205 inches

Depth from upper-edge of DIN-rail

52.5 mm / 2.067 inches

Housing design

DIN-rail-mount enclosure

Mounting type

DIN-35 rail | Screw mount (back)

Flammability class per UL94

V0

Fire load

0.118 MJ

Weight

510 g

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

≤ 95 % (no condensation permissible)

Derating

-2.66 %/K (> 55 °C)

Climatic category

3K3 (per EN 60721; except for low air pressure)

Conformity marking

CE

Standards/specifications

EN 61204-3 | EN 60335-1 | EN 62368-1 | UL 60950-1 | UL 508

PU (SPU)

1 pcs

Packaging type

box

Country of origin

CN

Customs tariff number

85044083900

UNSPSC

39,121,004

eCl@ss 10.0

27-04-07-01

eCl@ss 9.0

27-04-07-01

ETIM 9.0

EC002540

ETIM 10.0

EC002540

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

SCIP notification number (Bulgaria)

705848bc-74cb-41b0-a444-3c4311c395fd

SCIP notification number (Czech Republic)

bfa67b36-0252-4066-be38-f1d0cf4f723b

Rated current

6 A

MPN

787-1226

Voltage type (supply voltage)

AC/DC

1st secondary output voltage

22–27 V

Max. output current 1

6 A

Secondary voltage adjustable

Yes

Nominal value output voltage 1

24 V

Nominal value output current 1

6 A

Short-circuit-proof

Yes

Rated supply voltage AC 50 Hz

180–264 V

Rated supply voltage AC 60 Hz

90–132 V

Rated supply voltage DC

250–375 V

Output voltage stabilized

Yes

Power output

150 W

Stabilized

Yes

Type of electric connection

Spring clamp connection

Suitable for rail mounting

Yes

Wall mounting possible

Yes

Suitable for distribution board

No

Width in number of modular spacings

8

Direct mounting possible

No

Suitable for safety functions

No

Degree of protection (IP)

IP20

Suitable for wall mounting

No

HS Code

8504.40
