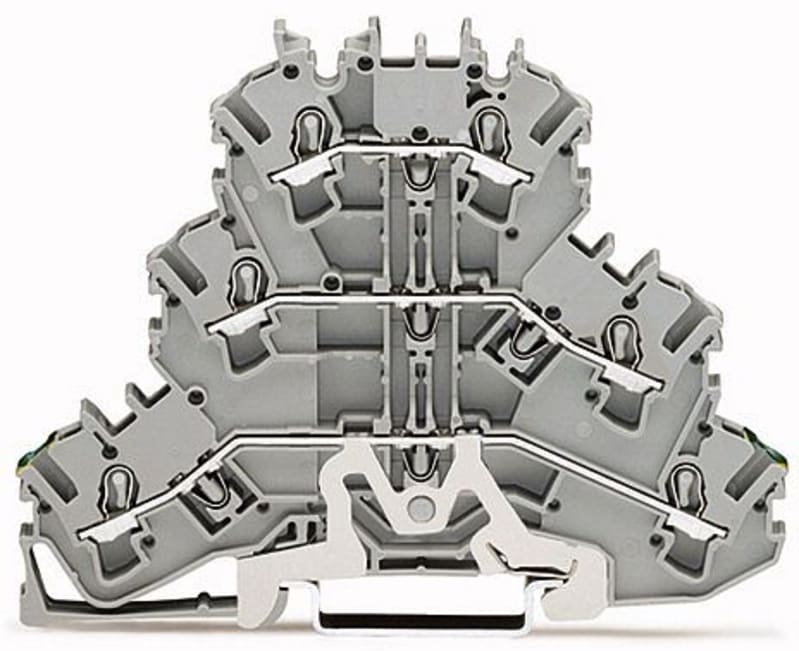

Triple-deck terminal block, Ground conductor/through/through terminal block, 2.5 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2002-3227 Manufacturer description: Triple-deck terminal block; Ground conductor/through/through terminal block; 2.5 mm²; PE/L/L; suitable for Ex e II applications; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray. DIN-rail terminal 3-tier Grey, PE/N/L.
Technical Specifications
- Manufacturer part number (MPN)
- 2002-3227
- EAN / GTIN
- 4044918691215
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 6
- Total number of potentials
- 3
- Number of levels
- 3
- Number of jumper slots
- 6
- Width
- 5.2 mm / 0.205 inches
- Height
- 93.3 mm / 3.673 inches
- Depth from upper-edge of DIN-rail
- 69.5 mm / 2.736 inches
- Potential marking
- PE/L/L
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.276 MJ
- Weight
- 19.7 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-41
- eCl@ss 9.0
- 27-14-11-41
- ETIM 9.0
- EC000901
- ETIM 10.0
- EC000901
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2002-3227
- PEN function possible
- Yes
- Connectable conductor cross section solid-core
- 0.75–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 5.2 mm
- Depth
- 69.5 mm
- Length
- 93.3 mm
- Closing plate required
- Yes
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4044918691215
- SAP 1000017084
- Code 8141473
Product Documentation
More from WAGO
WAGO
Plug; with strain relief housing; 2-Pole; Cod. E; green
893-1012
WAGO
Jumper; 8-Way; insulated; light gray (2002-408)
WAGO

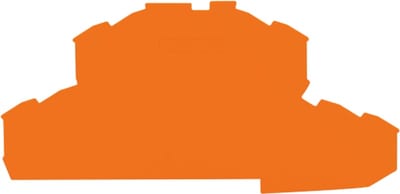

End and intermediate plate; 0.8 mm thick; orange (2002-2492)
WAGO

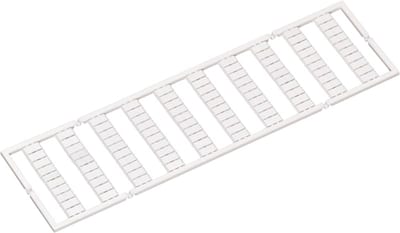

WMB marking card, L3 (100X), stretchable 5 - 5.2 mm
793-5576
WAGO

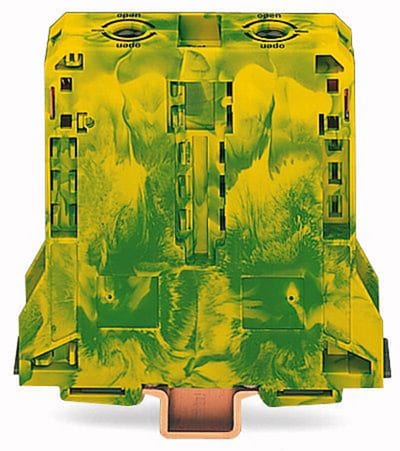

WAGO 285-197 DIN-Rail Terminal Block, 2-Conductor 95 mm², Green/Yellow
