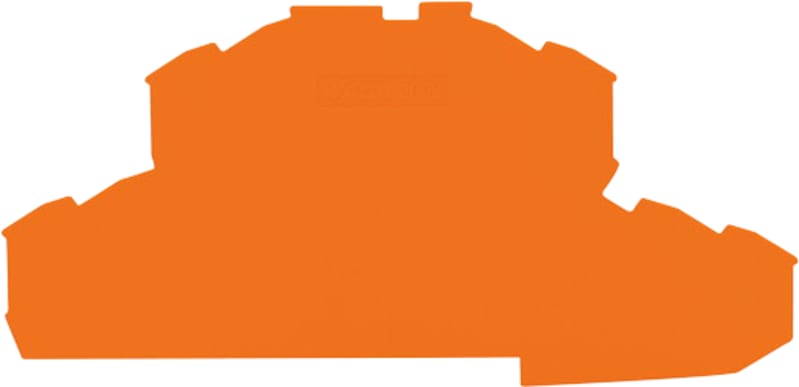

End and intermediate plate; 0.8 mm thick; orange (2002-2492)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2002-2492 Manufacturer description: End and intermediate plate; 0.8 mm thick; orange. TopJobS End Plate fuse terminal.
Technical Specifications
- Manufacturer part number (MPN)
- 2002-2492
- EAN / GTIN
- 4045454538019
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Width
- 0.8 mm / 0.031 inches
- Height
- 104.6 mm / 4.118 inches
- Depth
- 52.9 mm / 2.083 inches
- Mounting type
- snap-on type
- Color
- orange
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.098 MJ
- Weight
- 3.6 g
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 100 (25) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85389099990
- UNSPSC
- 39,121,702
- eCl@ss 10.0
- 27-14-11-33
- eCl@ss 9.0
- 27-14-11-33
- ETIM 9.0
- EC000886
- ETIM 10.0
- EC000886
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 2002-2492
- Colour
- Orange
- Thickness
- 0.8 mm
- Snap in
- Yes
- End plate model
- Yes
- Partition model
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4045454538019
- SAP 1000340077
- Code 8966361
Product Documentation
