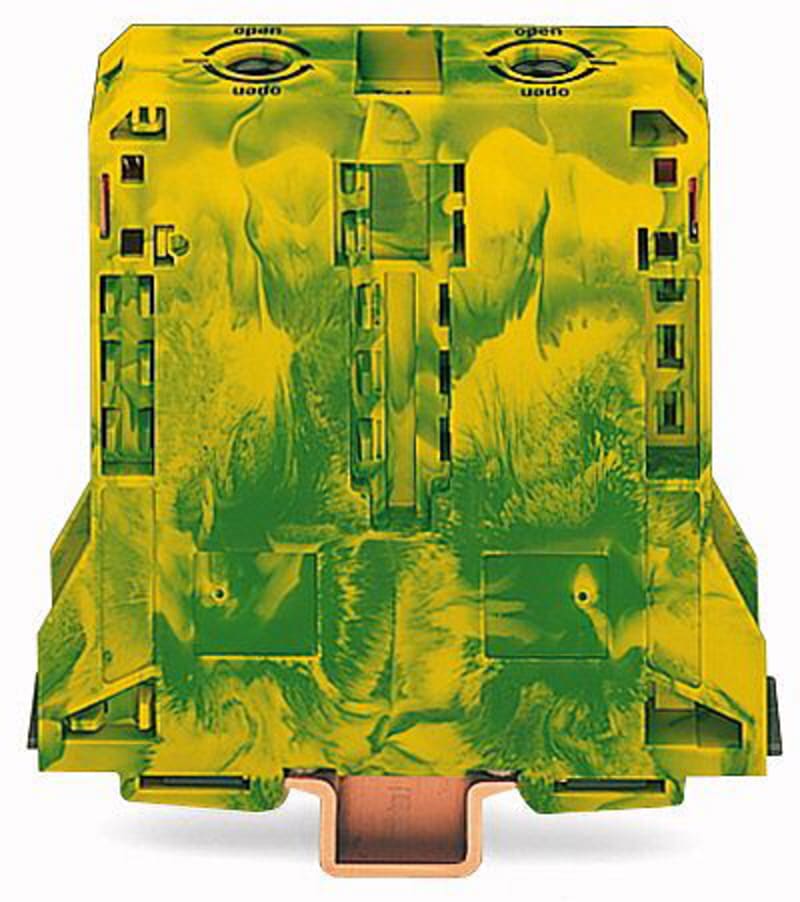

WAGO 285-197 DIN-Rail Terminal Block, 2-Conductor 95 mm², Green/Yellow
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 285-197 is a spring-clamp DIN-rail terminal block for PEN or protective-earth service, accepting 25–95 mm² solid or stranded conductors. It provides two clamp positions on a single level and mounts on 35 mm top-hat rail. The thermoplastic housing measures 25 x 107 x 101 mm and is rated for 105 °C operation. Colour green/yellow; supplied in packs of 5. Country of origin: Poland.
Technical Specifications
- Manufacturer part number (MPN)
- WAGO 285-197
- EAN / GTIN
- 4017332607117
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Conductor cross-section
- 95 mm²
- PEN function possible
- Yes
- Connectable conductor cross section solid-core
- 25–95 mm²
- Connectable conductor cross section multi-wired
- 25–95 mm²
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width
- 25 mm
- Height
- 107 mm
- Depth
- 101 mm
- Closing plate required
- No
- Colour
- Green/yellow
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017332607117
- SAP 1000068081
- Code 8761832
Product Documentation
More from WAGO
WAGO
WMB marking card, 31 ... 40 (10X), stretchable 5 - 5.2 mm
793-5505
WAGO
KBL3X1,5 Plinth/OPEN END 2M
771-9993/106-201
WAGO
WMB marking card, 41 ... 50 (10X), stretchable 5 - 5.2 mm
793-5506
WAGO

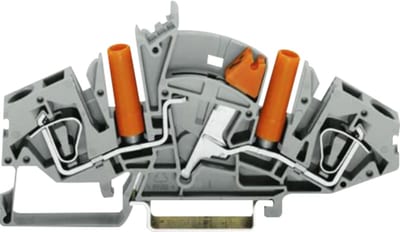

WAGO 282-821 2-Cond Disconnect/Test Terminal Block, 6 mm², Ø 4 mm Sockets, DIN Rail
WAGO

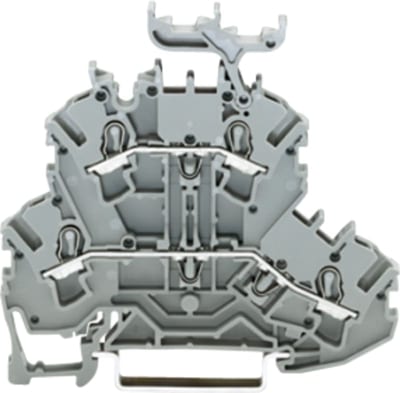

Double-deck terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2002-2231)
WAGO

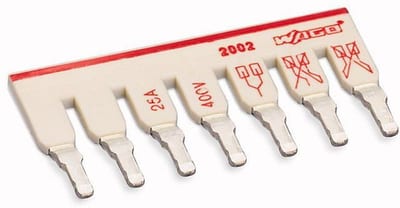

Staggered jumper; 10-Way; insulated; light gray
2002-480
WAGO

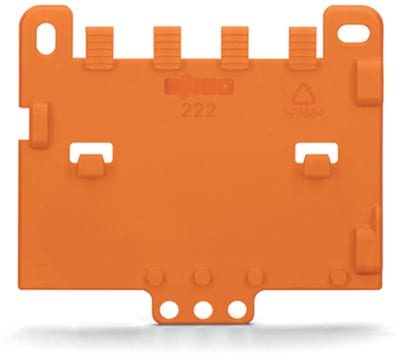

Strain relief plate; for mounting carrier; 221 or 222 Series, can be snapped
