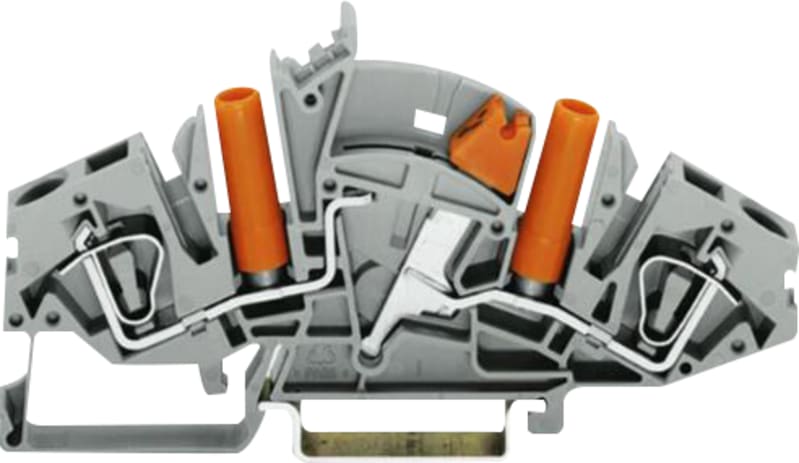

WAGO 282-821 2-Cond Disconnect/Test Terminal Block, 6 mm², Ø 4 mm Sockets, DIN Rail
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 282-821 is a 2-conductor disconnect/test terminal block with longitudinal switching and touch-proof test sockets sized for Ø 4 mm test plugs. The 6 mm² CAGE CLAMP connection technology mounts on DIN-35 rail (both 35x15 and 35x7.5 profiles) in a grey polyamide (PA66) V0-rated housing. Typical application is measurement and disconnection points in control cabinets where in-service testing of individual circuits is required.
Technical Specifications
- Manufacturer part number (MPN)
- 282-821
- EAN / GTIN
- 4050821227526
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Clamping units
- 2
- Total number of potentials
- 2
- Number of levels
- 1
- Width
- 8 mm / 0.315 inches
- Height
- 98 mm / 3.858 inches
- Depth from upper-edge of DIN-rail
- 46.5 mm / 1.831 inches
- Design
- angled
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.347 MJ
- Weight
- 24.7 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 1 (Rail Mounted Terminal Blocks)
- PU (SPU)
- 20 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85365080000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-26
- eCl@ss 9.0
- 27-14-11-26
- ETIM 9.0
- EC000902
- ETIM 10.0
- EC000902
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 7439-92-1
- REACH Candidate Strip Substance
- Lead
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 6(c)
- SCIP notification number (Austria)
- 6fbb9a04-4645-4d85-bf79-426675484fa7
- SCIP notification number (Belgium)
- fd46549d-bd3c-421e-bb3d-e94f76d9fda1
- SCIP notification number (Bulgaria)
- 69a6a508-9e54-43a9-bc73-d181c501bc25
- SCIP notification number (Czech Republic)
- cae9f513-66c9-42fc-88b3-6cc93e536f24
- SCIP notification number (Denmark)
- 8cb11f6a-197d-4969-bc27-cd5a5483de33
- SCIP notification number (Finland)
- 89e4ea45-9142-42cf-98fd-255e6843f54f
- SCIP notification number (France)
- a1dc073a-0dbb-4a4f-a0db-7c5c94d9106b
- SCIP notification number (Germany)
- 31d0e8d6-c170-49f2-b3e5-ffe1736f37b9
- SCIP notification number (Hungary)
- ea57a924-8f18-45bd-a5d1-bc67c2bf0593
- SCIP notification number (Italy)
- eede8b96-df12-4ee2-9caf-9b2d47e01425
- SCIP notification number (Netherlands)
- 06a48e1c-11d2-4756-83e5-e2c78a251b17
- SCIP notification number (Poland)
- 65c30c22-4db5-4aeb-8a93-22f088c88f52
- SCIP notification number (Romania)
- dfa980e2-0470-4b02-89dc-2e65534a0149
- SCIP notification number (Sweden)
- bbbf5c1d-f468-4348-b3de-220a7efb0476
- MPN
- 282-821
- Connectable conductor cross section solid-core
- 0.2–6 mm²
- Connectable conductor cross section multi-wired
- 0.2–6 mm²
- Rated current In
- 30 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of clamp positions per level
- 2
- Internally connected stages
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–105 °C
- Depth
- 98 mm
- Closing plate required
- Yes
- Colour
- Grey
- Type of slitting
- Swivelling
- Type of cross disconnection
- Sliding
- With integrated test socket
- Yes
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4050821227526
- SAP 1200635374
- Code 83049016
Product Documentation
More from WAGO
WAGO
Double-deck terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2002-2231)
WAGO
Staggered jumper; 10-Way; insulated; light gray
2002-480
WAGO
Strain relief plate; for mounting carrier; 221 or 222 Series, can be snapped
222-505
WAGO
Jumper; 8-Way; insulated; light gray (2001-408)
WAGO
WMB marking card, L1 (100X), stretchable 5 - 5.2 mm
793-5574
WAGO
WMB marking card, 701 ... 800 (1X), stretchable 5 - 5.2 mm
793-5515
WAGO

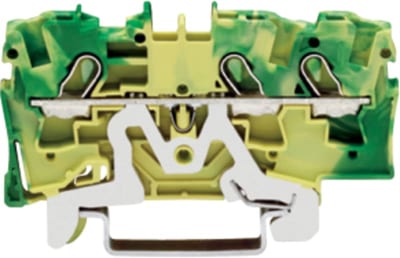

3-Conductor ground terminal block, 4 mm², for DIN-rail 35 x 15 and 35 x 7.5
