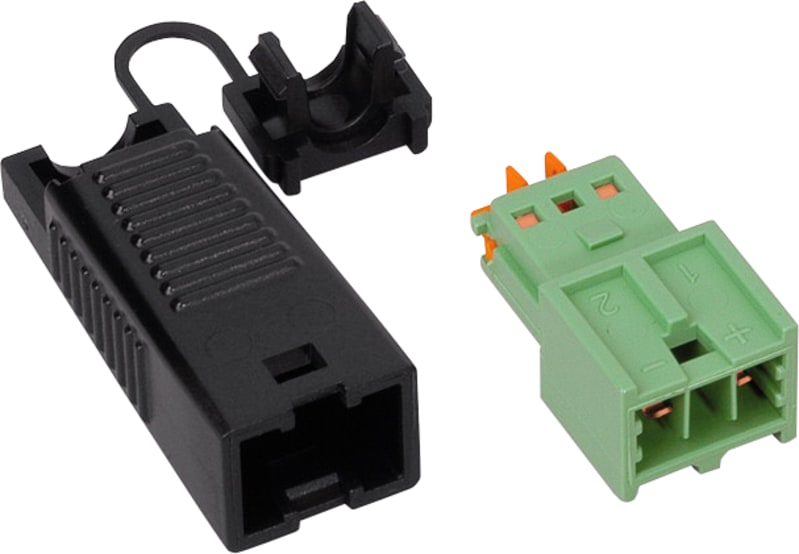

Plug; with strain relief housing; 2-Pole; Cod. E; green

WAGO 893-1012 Manufacturer description: Plug; with strain relief housing; 2-pole; Cod. E; green. Winsta Pluggable cabling system, quick-mounting system.

Manufacturer part number (MPN)

893-1012

EAN / GTIN

4045454267445

Sales unit

pcs

Package quantity

50 pcs

Clamping units

2

Total number of potentials

2

Width

14.1 mm / 0.555 inches

Height

11.1 mm / 0.437 inches

Depth

47.5 mm / 1.87 inches

Technology

KNX

Use

KNX

Coding

E

Variable coding

No

Marking

1+ 2-

Potential marking

1+ 2-

Mating force of a plug-in connection

Approx. 10 … 15 N

Retention force of a plug-in connection

Locked: > 80 N

Unmating force of a plug-in connection

Unlocked: approx. 15 … 20 N

Number of mating cycles

200, without resistive load

Protection type

IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)

Contact type (pluggable connector)

Male connector/plug

Connector (connection type)

for conductor

Mismating protection

Yes

Locking lever

Can be retrofitted

Locking of plug-in connection

Locking lever

Strain relief

Strain relief housing

Color

green

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact material

Copper alloy; surface-treated

Contact Plating

Tin

Fire load

0.171 MJ

Connector color

green

Strain relief color

black

Weight

5.7 g

Processing temperature

-5 … +40 °C

Continuous operating temperature

-35 … +85 °C

Product Group

20 (Winsta)

PU (SPU)

50 pcs

Packaging type

box

Country of origin

CH

Customs tariff number

85366990990

UNSPSC

39,121,402

eCl@ss 10.0

27-44-06-05

eCl@ss 9.0

27-44-06-05

ETIM 9.0

EC002560

ETIM 10.0

EC002560

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Number of poles

2P

MPN

893-1012

RAL-number coding/contact insert

6001

Rated voltage

50 V

Rated current

3 A

Degree of protection (IP)

IP20

Connection type

Spring clamp connection

Model

Plug

Cable diameter

5–7 mm

Number of connections per pole

1

Pole codification

1+, 2-

Mechanical coding

Yes

Colour coding/contact insert

Green

Type of locking

None

With strain relief

Yes

Max. continuous temperature resistance contact part

85 °C

Max. continuous temperature resistance strain relief

105 °C

Housing material

Polyamide (PA)

Halogen free

Yes

Surface treatment contacts

Tinned

Pollution degree

3

Continuity resistance

3 mOhm

Rated surge voltage

0.8 kV

Length

47.5 mm

HS Code

8536.69
