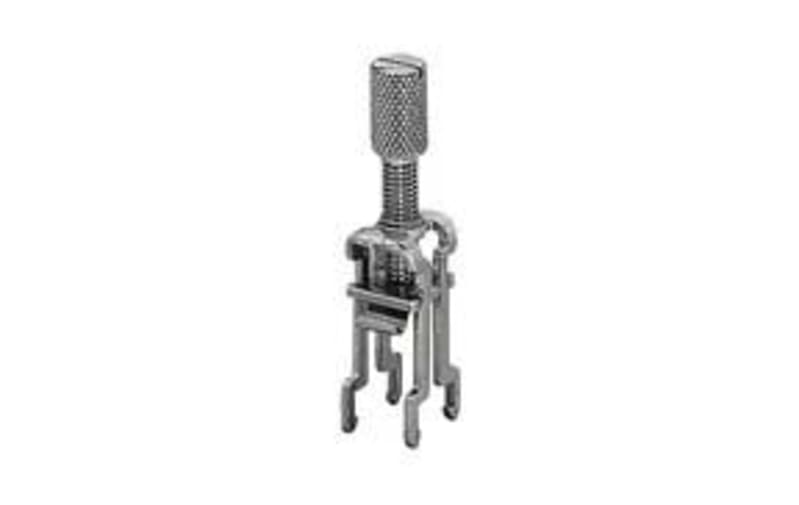

WAGO 790-108 Shield Clamping Saddle, 11 mm Wide, 3-8 mm Conductor Diameter
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 790-108 is a stainless-steel shield clamping saddle 11 mm wide for cables with an outer diameter of 3-8 mm. It provides low-impedance connection of the cable shield to a DIN-rail shield bus in control cabinets and terminal enclosures. The saddle is V2A (stainless 316) with a continuous operating temperature range of -60 to +105 degC.
Technical Specifications
- Manufacturer part number (MPN)
- 790-108
- EAN / GTIN
- 4017332356954
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 11 mm / 0.433 inches
- Color
- silver-colored
- Weight
- 12 g
- Material
- Steel V2A | Stainless steel
- Product Group
- 2 (Terminal Block Accessories)
- PU (SPU)
- 50 (10) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,722
- eCl@ss 10.0
- 27-14-11-50
- eCl@ss 9.0
- 27-14-11-50
- ETIM 9.0
- EC002020
- ETIM 10.0
- EC002020
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Processing temperature (min.)
- -35. °C
- Processing temperature (max.)
- 85. °C
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature from
- -60 °C
- Continuous operating temperature up to
- 105 °C
- Continuous operating temperature
- -60 … +105 °C
- MPN
- 790-108
- Permitted cable diameter
- 8 mm
- Width/grid dimension
- 11 mm
- Height
- 51 mm
- Explosion-tested version 'Ex e'
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017332356954
- SAP 1000263711
- Code 8249464
