WAGO

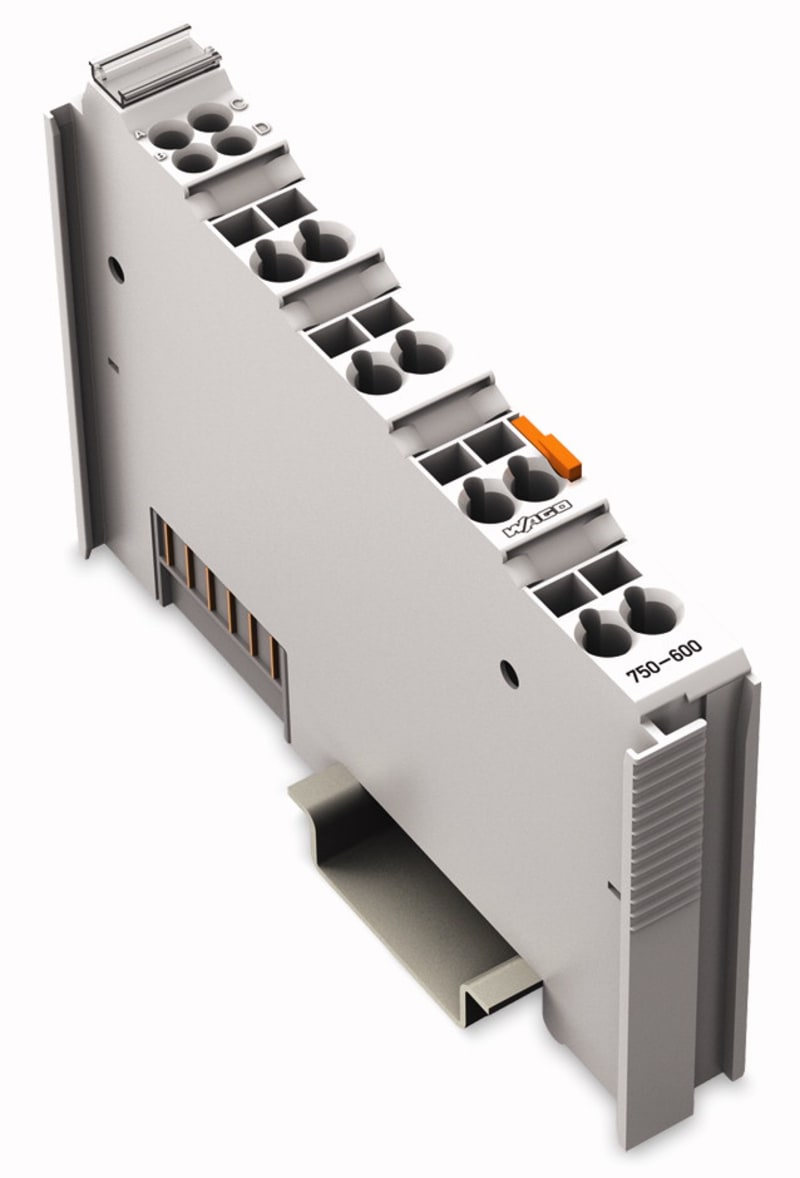

End Module (750-600)
Part number750-600EAN / GTIN4045454073985HS code8537.10
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 750-600 Manufacturer description: End Module. End Module;light grey.
Technical Specifications
- Manufacturer part number (MPN)
- 750-600
- EAN / GTIN
- 4045454073985
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 12 mm / 0.472 inches
- Height
- 100 mm / 3.937 inches
- Depth
- 69.8 mm / 2.748 inches
- Depth from upper-edge of DIN-rail
- 62.6 mm / 2.465 inches
- Mounting type
- DIN-35 rail
- Pluggable connector
- fixed
- Color
- light gray
- Housing material
- Polycarbonate; polyamide 6.6
- Fire load
- 1.107 MJ
- Weight
- 32 g
- Conformity marking
- CE
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Protection type
- IP20
- Pollution degree
- 2 per IEC 61131-2
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Mounting position
- Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
- Relative humidity (without condensation)
- 95 %
- Vibration resistance
- 4g per IEC 60068-2-6
- Shock resistance
- 15g per IEC 60068-2-27
- EMC immunity to interference
- per EN 61000-6-2, marine applications
- EMC emission of interference
- per EN 61000-6-3, marine applications
- Exposure to pollutants
- per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Product Group
- 15 (I/O System)
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85389091890
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-24-26-10
- eCl@ss 9.0
- 27-24-26-10
- ETIM 9.0
- EC001600
- ETIM 10.0
- EC001600
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Certified for UL hazardous location division 1
- Yes
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- Yes
- Certified for UL hazardous location group B (hydrogen)
- Yes
- Certified for UL hazardous location group C (ethylene)
- Yes
- Certified for UL hazardous location group D (propane)
- Yes
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- Yes
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Type of electric connection
- Spring clamp connection
- With potential separation
- No
- With power supply module
- No
- Suitable as segment module
- Yes
- Remote module
- No
- Fieldbus connection over separate bus coupler possible
- No
- Bus diagnosis possible
- No
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 3D
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4045454073985
- SAP 1000263303
- Code 8248120
Product Documentation
Document preview: End Module (750-600) — Specification sheet
