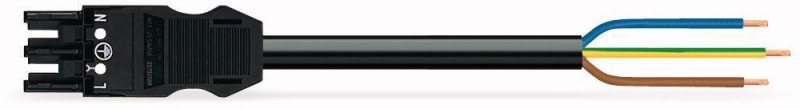

KBL5M 3X2,5 Plinth/OPEN END
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 771-9993/107-501 Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 771-9993/107-501
- EAN / GTIN
- 4044918586276
- Sales unit
- pcs
- Halogen free
- No
- Nominal cross section conductor
- 2.5 mm²
- Cable type
- H05VV-F
- Housing colour
- Black
- Type of locking
- Separate
- Rated current
- 20 A
- Rated voltage
- 250 V
- Total length
- 5000 mm
- Number of poles
- 3
- Housing material
- Polyamide (PA)
- Colour outer sheath
- Black
- Cable diameter
- 9.2–11.4 mm
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Mechanical coding
- Yes
- Rated surge voltage
- 4 kV
- Continuity resistance
- 1 mOhm
- Contact material
- CuSn
- Degree of protection (IP)
- IP20
- Pole codification
- L, N, PE
- Colour coding/contact insert
- Black
- Fire load
- 3.75194 kWh
- Strip length
- 9 mm
- Dismantle length
- 55 mm
- Type side 1
- Bus
- Type side 2
- Free conductor end
- Insulating piece permanent temperature-resistant
- 105 °C
- Conductor end treatment
- Ultrasonic compressed wire ends
- Cable permanent temperature-resistant to
- 70 °C
- Max. operating temperature at conductor
- 85 °C
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- RAL-number coding/contact insert
- 9004
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4044918586276
- SAP 1000094323
- Code 8870980
Product Documentation
More from WAGO
WAGO
Relay module, Nominal input voltage: 24 VAC, 2 changeover contacts, Limiting continuous current: 8 A (788-546)
WAGO
Cable fitting; M25 x 1.5 with O-ring; Plastic; black (895-1602)
WAGO
Tap-off module; for flat cable; 5 x 2.5 mm² + 2 x 1.5 mm²; 2-Pole; Cod. E; green
893-262
WAGO
KBL2M 4X1,5 PLUG/Plinth
771-9994/006-201
WAGO
End Module (750-600)
WAGO
WAGO 282-884 Locking Cover, 4-Pole, Transparent Polycarbonate
WAGO
KBL2M 5X2,5 PLUG/Plinth
771-9995/007-201
WAGO
Jumper; 10-Way; insulated; orange
282-440
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 771-9993/107-501?
- 771-9993/107-501 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 771-9993/107-501.
- What is the HS code for 771-9993/107-501?
- The customs tariff (HS) code for 771-9993/107-501 is 8544.42.
- Who manufactures 771-9993/107-501?
- 771-9993/107-501 is a WAGO product in the Cables & Wiring range.
- Is a datasheet available for 771-9993/107-501?
- Yes — the 771-9993/107-501 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 771-9993/107-501?
- The minimum order quantity is 1.
- Is 771-9993/107-501 available?
- Yes — 771-9993/107-501 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
