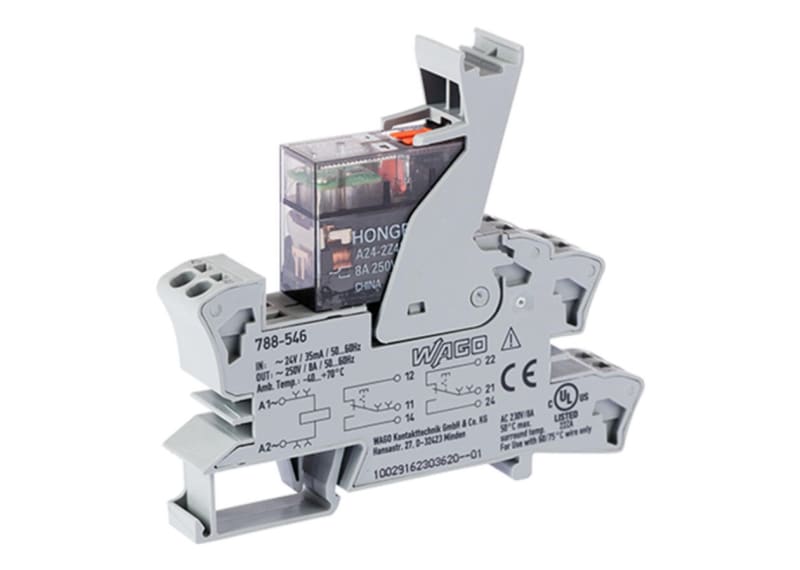

Relay module, Nominal input voltage: 24 VAC, 2 changeover contacts, Limiting continuous current: 8 A (788-546)

WAGO 788-546 Manufacturer description: Relay module; Nominal input voltage: 24 VAC; 2 changeover contacts; Limiting continuous current: 8 A; with manual operation; Red status indicator; Module width: 15 mm. Relay Module; Nominal input voltage: 24 VAC; 2 changeover contacts;.

Manufacturer part number (MPN)

788-546

EAN / GTIN

4050821226826

Sales unit

pcs

Note

Reinforced insulation between coil and contacts | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Rated Voltage

250 V

Rated impulse withstand voltage

4 kV

Pollution degree

3

Dielectric strength (control/load circuit) (AC, 1 min)

5 kVrms

Dielectric strength (open contact) (AC, 1 min)

1 kVrms

Dielectric strength (load/load circuit) (AC, 1 min)

2.5 kVrms

Protection type

IP20

Connection technology

Push-in CAGE CLAMP®

Solid conductor

0.34 … 2.5 mm² / 22 … 14 AWG

Fine-stranded conductor

0.34 … 2.5 mm² / 22 … 14 AWG

Strip length

9 … 10 mm / 0.35 … 0.39 inches

Width

15 mm / 0.591 inches

Height

86 mm / 3.386 inches

Depth from upper-edge of DIN-rail

73 mm / 2.874 inches

Mounting type

DIN-35 rail

Fire load

0.596 MJ

Weight

46.4 g

Ambient temperature (operation at UN)

-40 … +70 °C

Ambient temperature UL (operation at UN)

-40 … +50 °C

Ambient temperature (storage)

-40 … +70 °C

Processing temperature

-25 … +50 °C

Temperature range of connection cable

≥ (Tambient + 20 K)

Relative humidity

5 … 85 % (no condensation permissible)

Standards/specifications

EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508

WAGO Basic Relay

788-946

Product Group

6 (INTERFACE ELECTRONIC)

PU (SPU)

15 (1) pcs

Packaging type

box

Country of origin

DE

Customs tariff number

85364900990

UNSPSC

39,122,334

eCl@ss 10.0

27-37-16-01

eCl@ss 9.0

27-37-16-01

ETIM 9.0

EC001437

ETIM 10.0

EC001437

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Rated current

8 A

MPN

788-546

Voltage type (operating voltage)

DC

Type of electric connection

Spring clamp connection

With detachable clamps

No

Nominal current

8 A

Rated control supply voltage AC 50 Hz

24 V

Rated control supply voltage AC 60 Hz

24 V

Rated control supply voltage DC

23–25 V

Voltage type for actuating

DC

Drive, polarization

Polarized

Drive, switching attitude

Bistable

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

2

Number of contacts as change-over contact

2

With forced-guided contacts

No

Type of switch contact

Double contact

Complete with socket

Yes

With LED indication

Yes

Degree of protection (IP)

IP20

Depth

86 mm

HS Code

8536.49

• EAN 4050821226826
• SAP 1201001874
• Code 84345684
