WAGO
Innpluglemme 4X4MM² in blister
Part number2773-404/995-015EAN / GTIN4066966001747HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

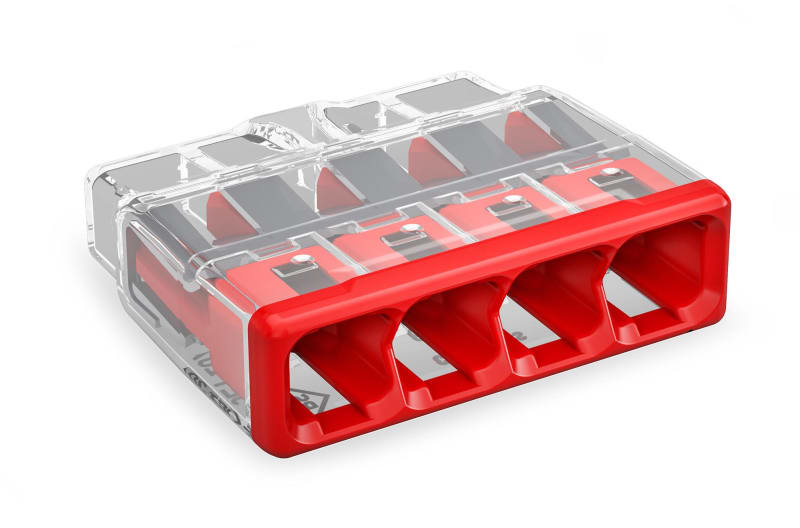

WAGO 2773-404/995-015 Push-In Terminal 2x4mm², transparent in blisterpakk.
Technical Specifications
- Manufacturer part number (MPN)
- 2773-404/995-015
- EAN / GTIN
- 4066966001747
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Conductor cross-section
- 4 mm²
- Clamping units
- 4
- Total number of potentials
- 1
- Width
- 21.2 mm / 0.835 inches
- Height
- 6.3 mm / 0.248 inches
- Depth
- 18.6 mm / 0.732 inches
- Color
- transparent
- Cover color
- red
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact Plating
- Tin
- Fire load
- 0.034 MJ
- Ambient temperature (operation)
- +85 °C
- Processing temperature
- -35 … +60 °C
- Continuous operating temperature
- -40 … +105 °C
- Temperature marking per EN 60998
- T85
- PU (SPU)
- 800 (80) pcs
- Packaging type
- box
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 131651-65-5 | 144317-44-2 | 220133-51-7 | 220689-12-3 | 25628-08-4 | 29420-49-3 | 375-73-5 | 503155-89-3 | 507453-86-3 | 68259-10-9
- RoHS Compliance Status
- Compliant,No Exemption
- RoHS Exemption
- 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- 7afaf847-d50b-4ed7-a8e7-4cc08ec03de7
- SCIP notification number (Belgium)
- d874ceea-a3d5-4949-9773-1693a2346be0
- SCIP notification number (Bulgaria)
- 91ee294b-5755-485d-833e-ea9bccf9161a
- SCIP notification number (Czech Republic)
- bc2a1cfd-7e56-491e-9917-d13837be5223
- SCIP notification number (Denmark)
- 2f845ee0-5917-4a74-ba9d-4679a707fb41
- SCIP notification number (Finland)
- 33031dc6-e1e6-4720-94a9-216e7d355f3a
- SCIP notification number (France)
- 09a526dd-1342-4f53-84ae-bdab694bd4fb
- SCIP notification number (Germany)
- 5935b451-ffe1-4a6b-b153-05a59d108178
- SCIP notification number (Hungary)
- ff10e7fd-d057-4ea4-9c54-473782e4921c
- SCIP notification number (Italy)
- 78d57b5b-cef6-46c4-a54d-33bcca15c83f
- SCIP notification number (Netherlands)
- 42ae8491-6f31-47e9-914a-d4a30a87ec5b
- SCIP notification number (Poland)
- 6b83b362-e0fe-426a-9833-a6da0fb4dda1
- SCIP notification number (Romania)
- 74125526-721c-4352-be51-d74864f8ffa6
- SCIP notification number (Sweden)
- d24216b2-ead7-4b13-816a-3ae1a8b06643
- Nominal current
- 32 A
- Nominal voltage
- 450 V
- Colour
- Red
- Number of clamp positions
- 4
- Cable diameter
- 1.6–2 mm
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.75–4 mm²
- AWG-range
- 12–20
- Nominal cross section
- 0.75–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- No
- Transparent
- Yes
- With operation lever
- No
- Min. AWG-size
- 12
- Max. AWG-size
- 20
- Type of locking/unlocking
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966001747
- SAP 1200568905
- Code 82933654
Product Documentation
Document preview: Innpluglemme 4X4MM² in blister (2773-404/995-015) — Specification sheet
More from WAGO
WAGO
Energy meter (MID), 65A, 3X230/400V, 50Hz, 2 x S0 interface, 4PS
879-3020
WAGO
2-Channel analog input; 4 … 20 mA; Single-ended
750-466
WAGO
3-Conductor ground terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2216-1307)
WAGO
WMB marking card, 24 V (100X), stretchable 5 - 5.2 mm
794-508
WAGO
End and intermediate plate; 0.8 mm thick; orange (2003-6692)
WAGO
Mounting carrier, 221 Series - 6 mm², for DIN-35 rail mounting/screw mounting
221-511
WAGO
End and intermediate plate; 1 mm thick; orange (2016-1392)
WAGO

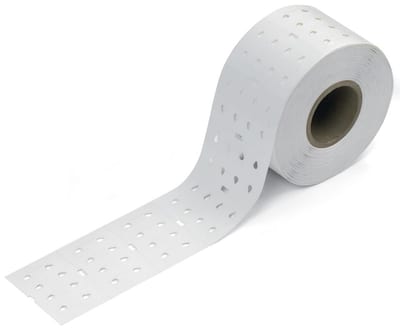

WAGO 211-861 Conductor Markers Thread-On for Smart Printer 5x10.5 mm White
