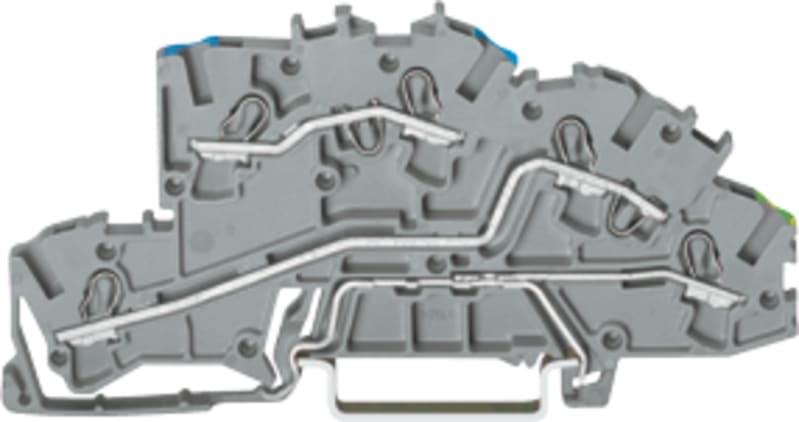

WAGO TOPJOB S Three-Level Installation Terminal Block N/L/PE, 2.5 mm², Grey
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2003-7646 is a three-level installation terminal block that carries N, L and PE potentials on a single 5.2 mm wide unit, rated 32 A at 400 V for 2.5 mm² conductors. Push-in CAGE CLAMP spring connections accept solid wires from 0.75 to 4 mm² and stranded wires from 0.25 to 2.5 mm² at each of the five clamping points, with operating slots for tool-assisted release. The polyamide body is UL 94 V0, rated for -60 to +105 °C, and snaps onto DIN 35 mm top-hat rail. Supplied in boxes of 50.
Technical Specifications
- Manufacturer part number (MPN)
- 2003-7646
- EAN / GTIN
- 4044918925617
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 5
- Total number of potentials
- 3
- Number of levels
- 3
- Width
- 5.2 mm / 0.205 inches
- Height
- 96 mm / 3.78 inches
- Depth from upper-edge of DIN-rail
- 42.3 mm / 1.665 inches
- Potential marking
- N/L/PE
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.221 MJ
- Weight
- 16.3 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-25
- eCl@ss 9.0
- 27-14-11-25
- ETIM 9.0
- EC001329
- ETIM 10.0
- EC001329
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2003-7646
- Connectable conductor cross section solid-core
- 0.75–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Rated current In
- 32 A
- Rated voltage
- 400 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of potentials
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 5.2 mm
- Depth
- 42.3 mm
- Closing plate required
- Yes
- Length
- 96 mm
- Basic colour
- Grey
- PE-function
- Yes
- With N-disconnect slide
- No
- N function possible
- Yes
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4044918925617
- SAP 1000340220
- Code 81103277
Product Documentation
