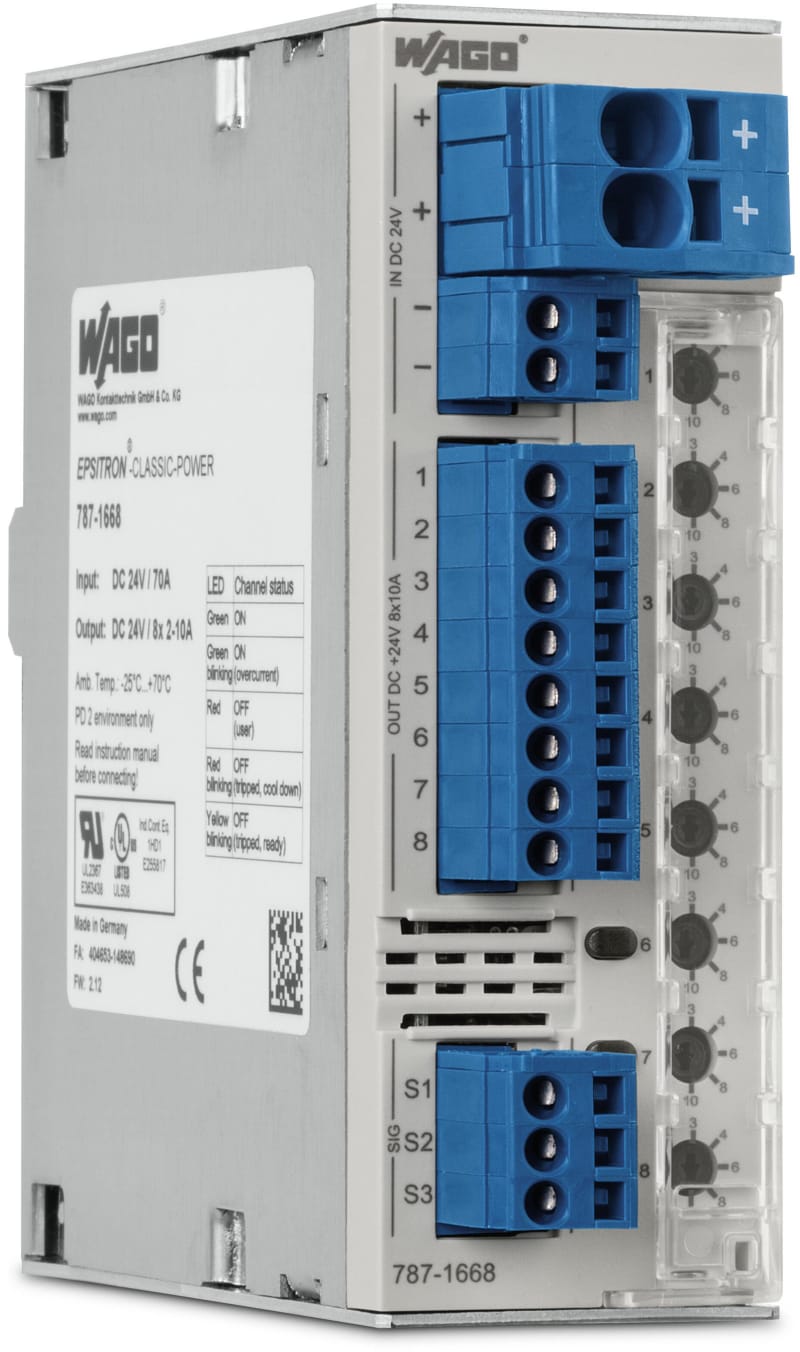

Electronic circuit breaker, 8-Channel, 24 VDC input voltage, adjustable 2 … 10 A, 10,00 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 787-1668 Manufacturer description: Electronic circuit breaker; 8-channel; 24 VDC input voltage; adjustable 2 … 10 A; communication capability; 10,00 mm². Electronic fuse, 8-channels, 2-10A.
Technical Specifications
- Manufacturer part number (MPN)
- 787-1668
- EAN / GTIN
- 4050821502593
- HS code
- 8536.90
- Sales unit
- pcs
- Isolation voltage (connectors – housing)
- 0.5 kVDC
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Reverse voltage protection
- No
- Resistance to reverse feed
- ≤ 35 VDC
- Pollution degree
- 2
- Transient suppression (primary)
- Suppressor diode (33 V)
- Parallel operation of single channels
- Not permitted
- Series operation
- No
- MTBF
- > 500,000 h (per IEC 61709)
- Width
- 42 mm / 1.654 inches
- Height
- 127 mm / 5 inches
- Depth from upper-edge of DIN-rail
- 142.5 mm / 5.61 inches
- Mounting type
- DIN-35 rail
- Fire load
- 0.689 MJ
- Weight
- 440 g
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Relative humidity
- 5 … 96 % (no condensation permissible)
- Derating
- ≥ 50 °C (see instruction manual)
- Conformity marking
- CE
- Standards/specifications
- EN 61000-6-2 | EN 61000-6-3 | UL 508 | UL 2367 | DNV
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85362010900
- UNSPSC
- 39,121,601
- eCl@ss 10.0
- 27-37-18-02
- eCl@ss 9.0
- 27-37-18-02
- ETIM 9.0
- EC001440
- ETIM 10.0
- EC001440
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Rated current
- 10 A
- MPN
- 787-1668
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050821502593
- SAP 1000337649
- Code 8937622
Product Documentation
